Xerox Phaser 3610

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual4-36

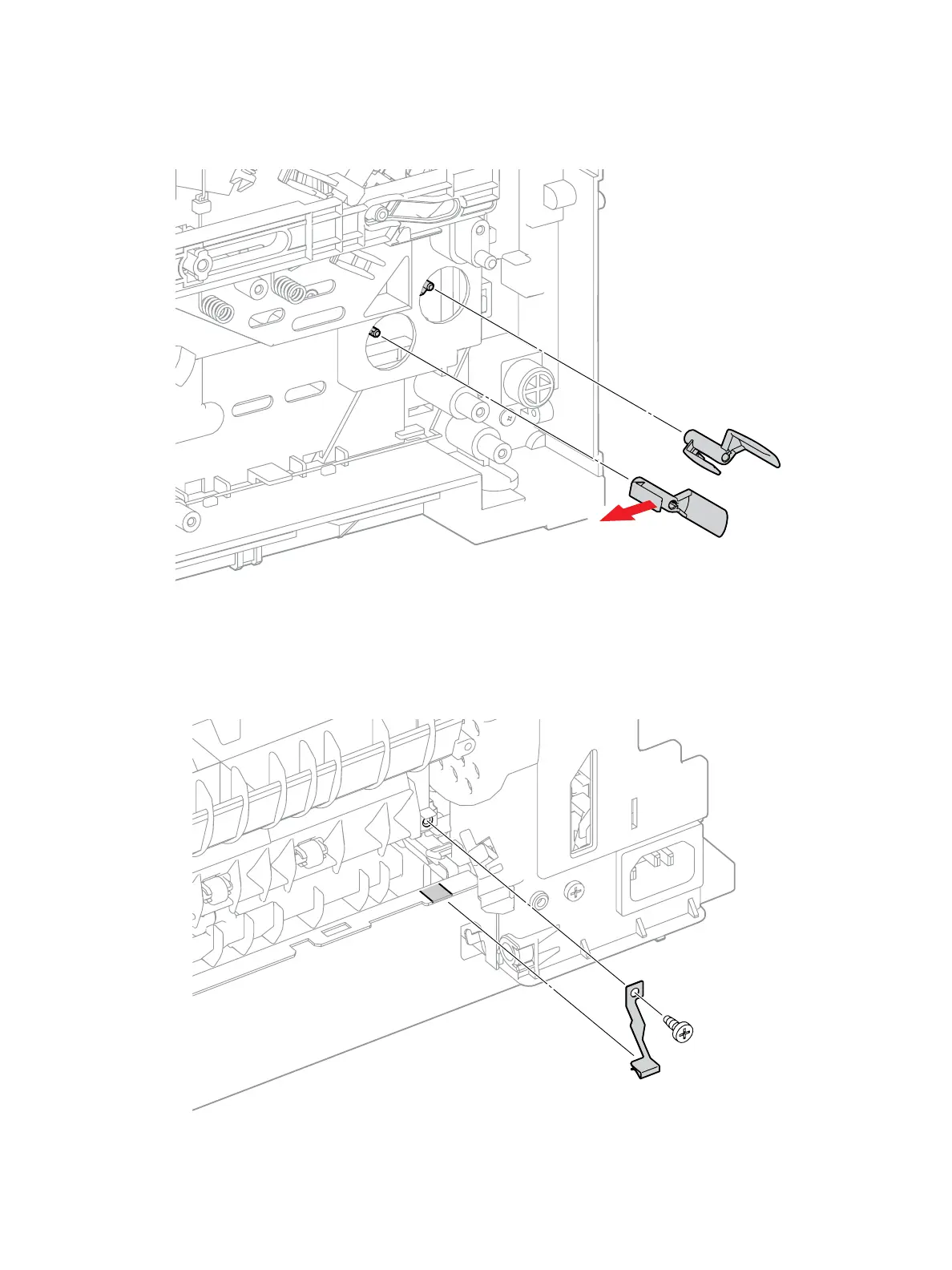

13. From the right side of the machine, release the clip that secures both of the registration sensor
shutters, and remove. (Figure 5)
Figure 5
14. From the rear of the machine, release 1 screw (silver, tapping, 8mm) to remove the silver ground
plate. (Figure 6)
Figure 6
s3610-01
7
s3610-018
