Xerox Phaser 3610

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual4-82
4. Remove the Exit Output Drive Assembly. (Figure 2)
a. 1 screw (silver, M3, 6mm) that secures the left upper corner of the LVPS, and lift the ground
strap.
b. Remove 2 screws (silver, tapping, 6mm) and release 1 clip that secures the Exit Output Drive
Assembly.
c. Disconnect P/J16 and remove the Exit Output Drive Assembly.
Note: Gears are not captive in the assembly.

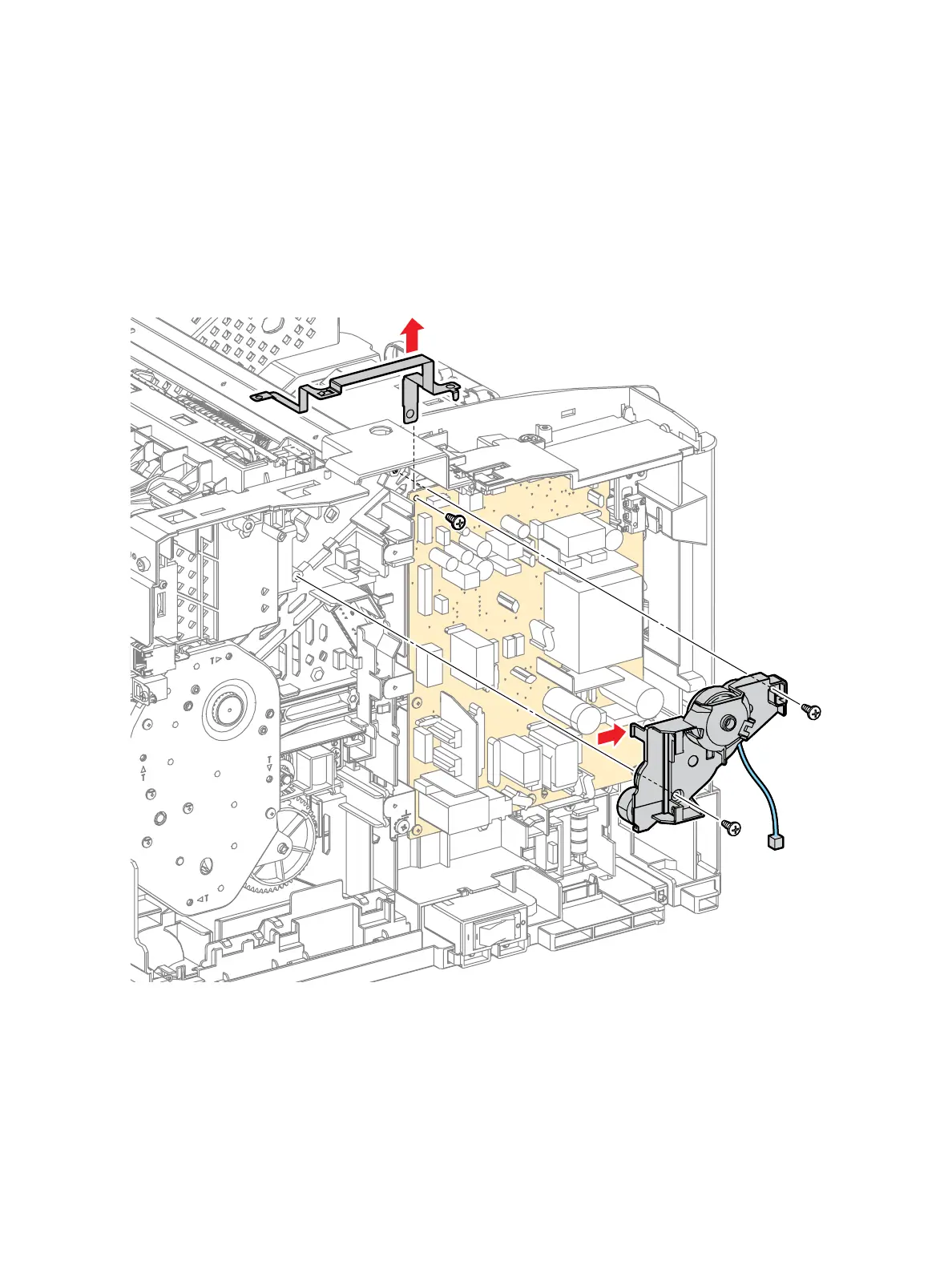

Figure 2
s3610-051
P/J16
b)
c)
a)
