Outboard motor mounting
A
B
C
D
E
TIP:
The mounting height of an outboard motor
varies based on the boat and engine model
combination. For more information for your
specific boat package, contact your boat
manufacturer.
3. Install:
• Special service tool “1”
4. Adjust the height of the scale “2” to the
transom height (H), and place it on the
special service tool “1”. Secure the spe-
cial service tool “1” to the boat transom
using screws or vises.
TIP:
For the transom height (H), see “External di-
mensions” (1-2).
5. When the outboard motor mounting posi-
tion has been determined, mark the best
suited 6 symmetrical mounting holes on
the boat transom “3”. Drill the mounting
1
1
1
11
1
1
1
1
1

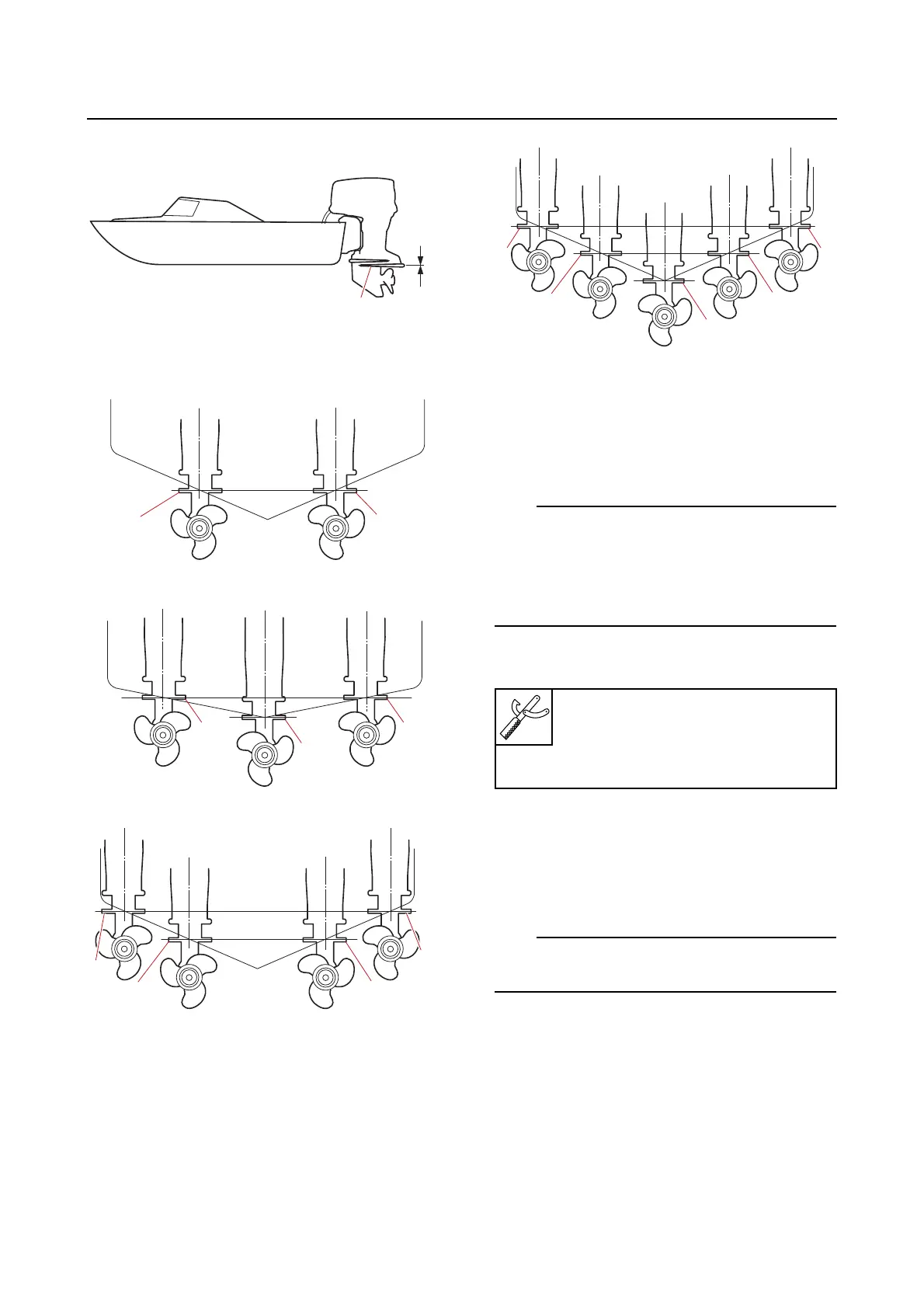

A. Single outboard motor application
B. Twin outboard motor application
C. Triple outboard motor application
D. Quad outboard motor application
E. Quint outboard motor application
Drilling plate “1”
90890-06783
Drilling plate “1”
YB-34465-A
1
1
1 1
1
