ABB RELION REX640 Technical Manual

3.8.6 Station authority level "L,S,R"
Station authority level "L,S,R" adds station control access. In this level IEC 61850
command originator category validation is performed to distinguish control
commands with IEC 61850 command originator category set to “Remote” or
“Station”. There is no multilevel access.
IED
IEC 61850
remote
IEC 61850
station
IEC 61850
remote
IEC 61850
remote
IEC 61850
remote
IED
IEC 61850
station
IED
IEC 61850
station
IED
IEC 61850
station
OFFLOCAL REMOTE STATION

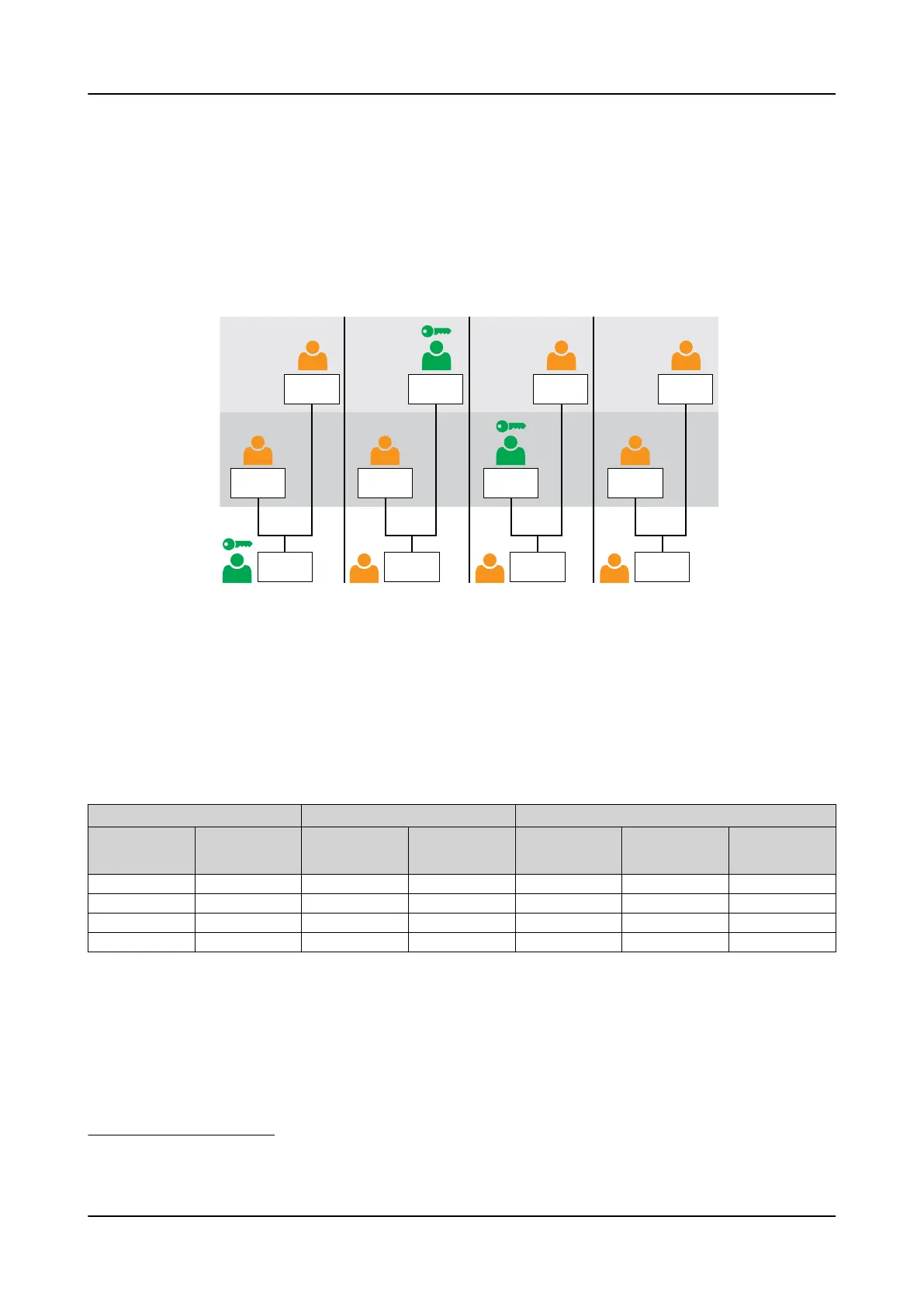

Figure 53: Station authority is “"L,S,R"
When the station authority level “L,S,R” is used, the control access can be
selected using R/L button or CONTROL function block. IEC 61850 data object
CTRL.LLN0.LocSta and CONTROL function block input CTRL_STA are applicable for
this station authority level.
Station control access can be reserved by using R/L button or CONTROL function
block together with IEC 61850 data object CTRL.LLN0.LocSta
Table 75: Station authority level “L,S,R” using R/L button
L/R Control L/R Control status Control access
R/L button CTRL.LLN0.LocS
ta
1
CTRL.LLN0.MltL
ev
L/R state
CTRL.LLN0.Loc
KeyHMI
Local user IEC 61850 client
2
IEC 61850
client
3
Local FALSE FALSE 1 x
Remote FALSE FALSE 2 x
Remote TRUE FALSE 3 x
Off FALSE FALSE 0
1
Station client reserves the control operating by writing controllable point LocSta.
2
Client IEC 61850 command originator category is remote.
3
Client IEC 61850 command originator category is station.
1MRS759142 F Basic functions
REX640
Technical Manual
139
