Table 121: ILTCTR Non group settings (Advanced)
Parameter Values (Range) Unit Step Default Description
Reverse polarity
0=False
1=True
0=False Reverse the polari-
ty of the phase CTs
Frequency adaptivi-
ty
0=Disable
1=Enable
3=Backup frequen-
cy source
0=Disable Frequency adaptivi-
ty selection
3.17.1.6 Monitored data
Monitored data is available in three locations.
• Monitoring> I/O status> Analog inputs
• Monitoring> IED status> SMV traffic
• Monitoring> IED status> SMV accuracy
3.17.2 Residual current preprocessing RESTCTR
3.17.2.1 Identification
Function description IEC 61850
identification
IEC 60617
identification
ANSI/IEEE C37.2
device number
Residual current preprocessing RESTCTR RESTCTR RESTCTR
3.17.2.2 Function block

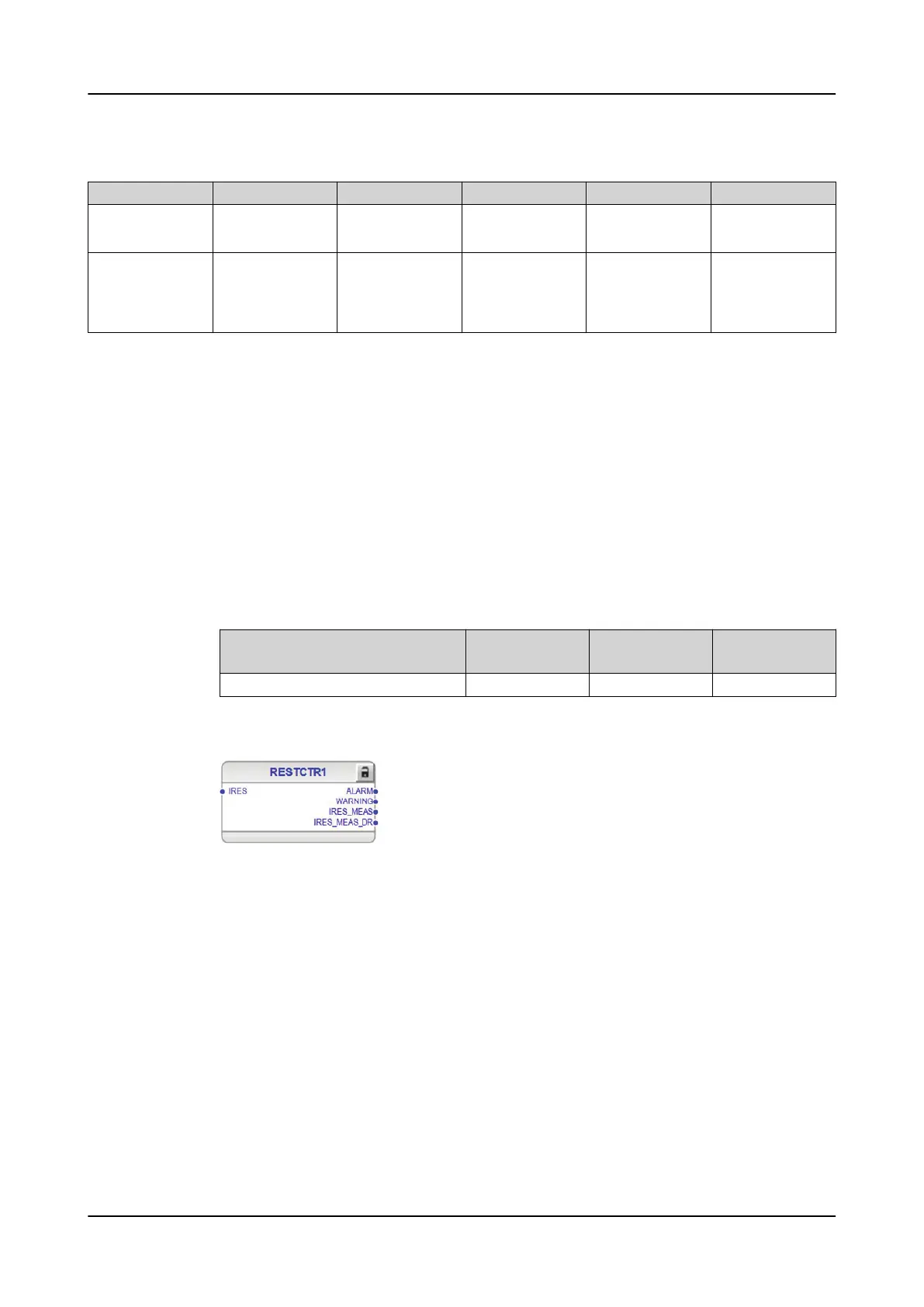

Figure 89: Function block
3.17.2.3 Functionality
The residual current preprocessing function RESTCTR is used for setting up the
residual current measurement channels. Input channels for RESTCTR are either
physical hardware or IEC 61850-9-2 sampled value channels. The output IRES_MEAS
channel of RESTCTR can be connected to different applications which require
measured residual current.
The current transducer selection can be made by setting
Current input type
to
"Current trafo" for conventional CT or to "Current sensor" for current sensor type.
The residual CTs' primary rated current can be set using
Primary current
setting.
The setting
Secondary current
defines the nominal current of the CT's secondary
winding. This is used as a reference to scale measurements accordingly.
Basic functions
1MRS759142 F
194 REX640
Technical Manual
