3.19.2.3 Signals
Table 157: QTY_BAD Input signals
Name Type Default Description
IN Any 0 Input signal
Table 158: QTY_BAD Output signals
Name Type Description
OUT BOOLEAN Output signal
3.19.3 Received GOOSE test mode QTY_GOOSE_TEST
3.19.3.1 Function block

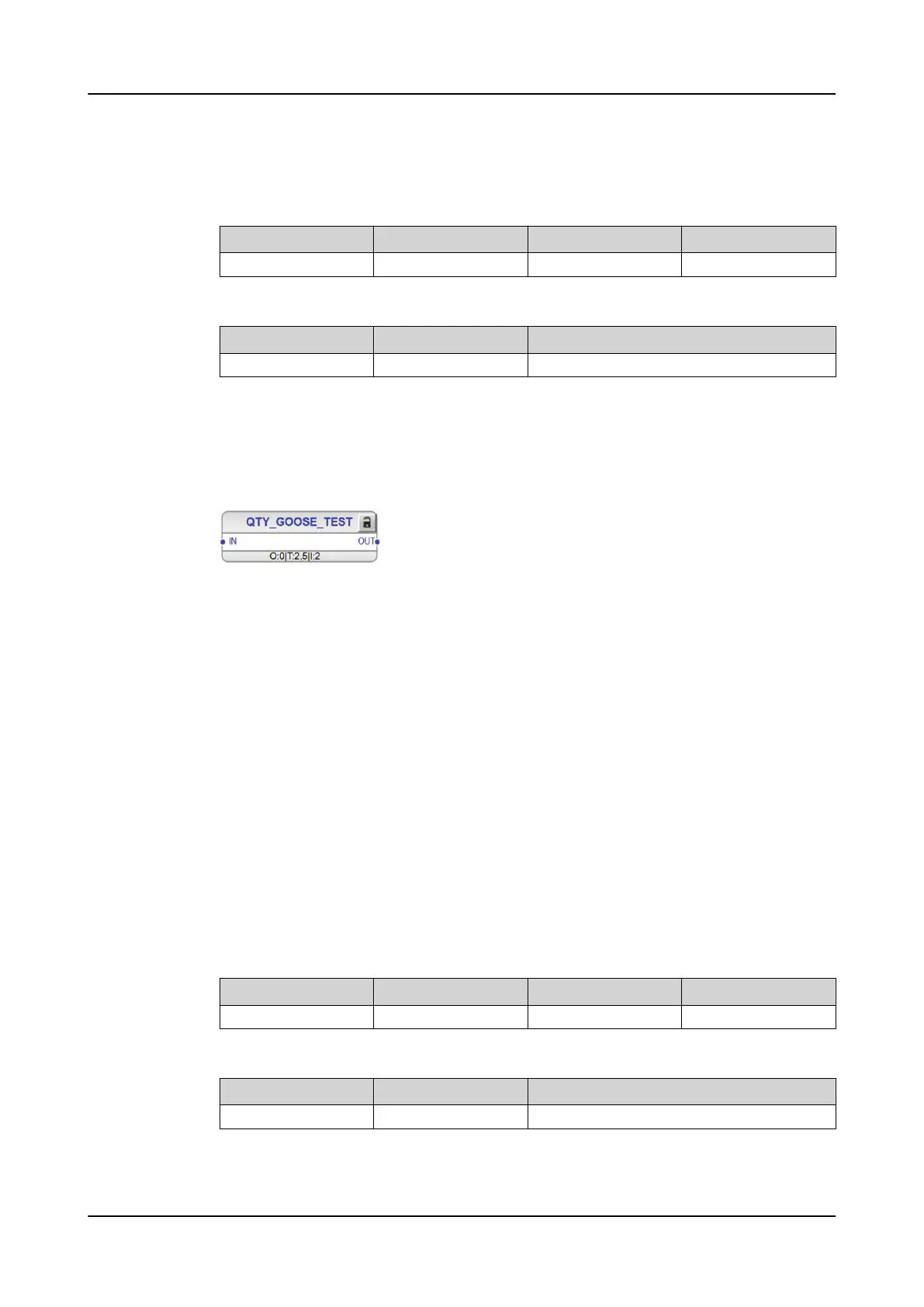

Figure 104: Function block
3.19.3.2 Functionality
The GOOSE test mode function QTY_GOOSE_TEST determines whether test mode
is used between two relays communicating over GOOSE. The conditions needed for
enabling the test mode differ in both editions 1 and 2 of the IEC 61850 standard. For
more information, see the IEC 61850 engineering guide.
The IN input can be connected to any GOOSE application logic output signal, for
example, GOOSERCV_BIN.
The OUT output indicates the test mode status of the GOOSE function block. When
the output is in the true (1) state, the GOOSE test mode is active. The value false (0)
indicates that the test mode is not in use.
3.19.3.3 Signals
Table 159: QTY_GOOSE_TEST Input signals
Name Type Default Description
IN Any 0 Input signal
Table 160: QTY_GOOSE_TEST Output signals
Name Type Description
OUT BOOLEAN Output signal
1MRS759142 F Basic functions
REX640
Technical Manual
215

ABB RELION REX640 Specifications

General

Model	RELION REX640
Category	Protection Device
Communication Protocols	IEC 61850, Modbus, DNP3, IEC 60870-5-103
Display	LCD
Rated Voltage	100-240 V AC/DC
Rated Frequency	50/60 Hz
Protection Functions	Overcurrent, Earth Fault, Overvoltage, Undervoltage, Frequency
Mounting	Rack mounting
Inputs/Outputs	Analog inputs
Housing	Metal
Input Voltage	24-250 V DC / 100-240 V AC
Operating Temperature	-25°C to +70°C
Enclosure	IP20
