R5905948 /12 Event Master Devices 121

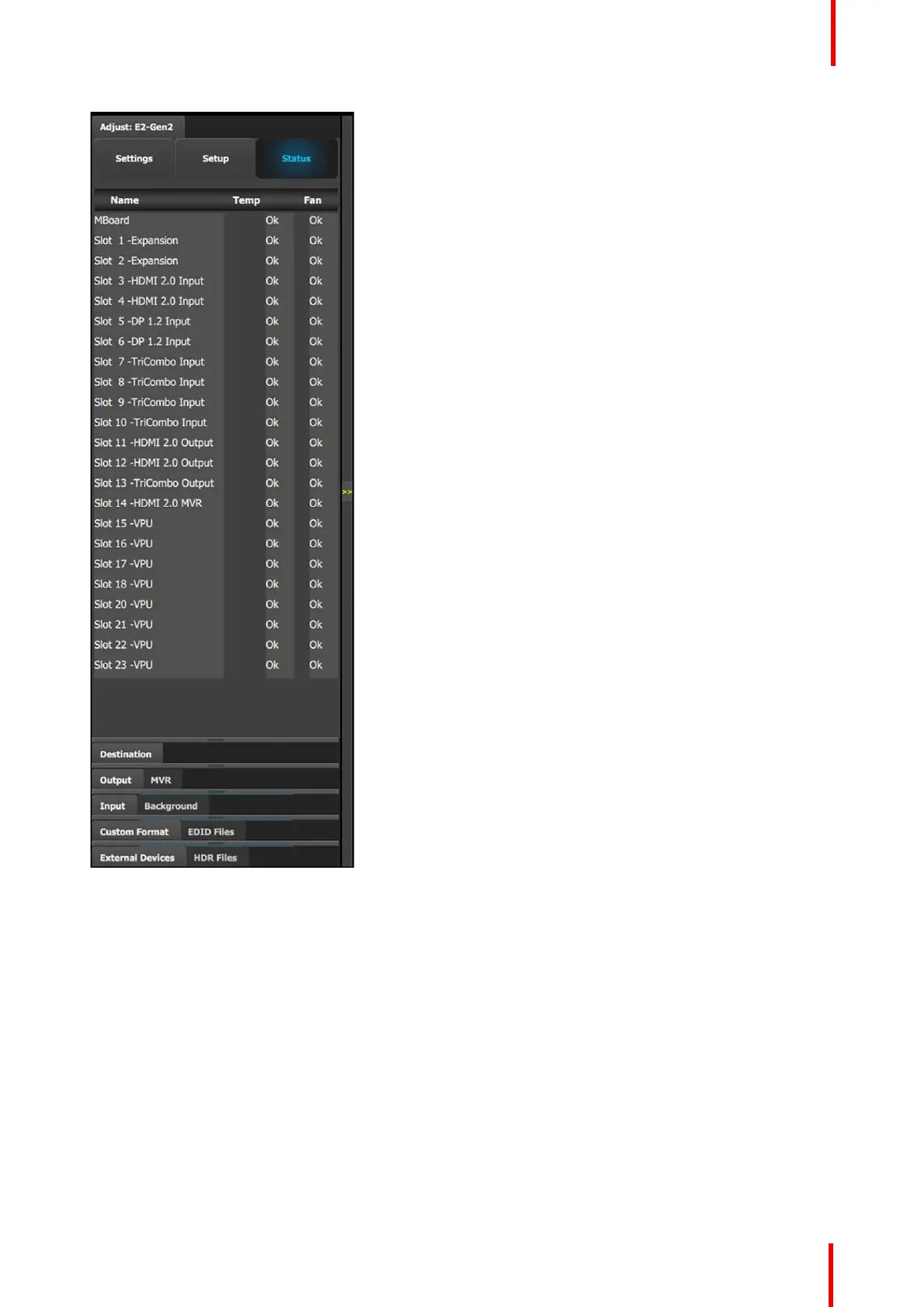

The Status tab shows the temperature and fan status
of the motherboard and the cards in the expansion
slots and the input and output slots.
Last slot as MVR or Output in the simulator
To toggle between using the last slot on the simulator as an Output or as an MVR...
1. Check the "Last slot as MVR" checkbox in the Setup panel, and press “Save All” to save the settings.
2. Shut down the simulator.
3. Edit the simhw.xml file.
(You may use any XML editor. You may also us Notepad.)
4. Change the card type of the MVR slot to be either a normal HDMI output card (card type = 22) or an MVR
card ((card type = 40).
Last slot as MVR: <card id="CardID15" type="40" slot="13">CardType_Output_
Multiviewer</card>
Last slot as Output: <card id="CardID15" type="21" slot="12">CardType_Output_4_SDI</
card>
EM GUI orientation
