R5905948 /12 Event Master Devices 131

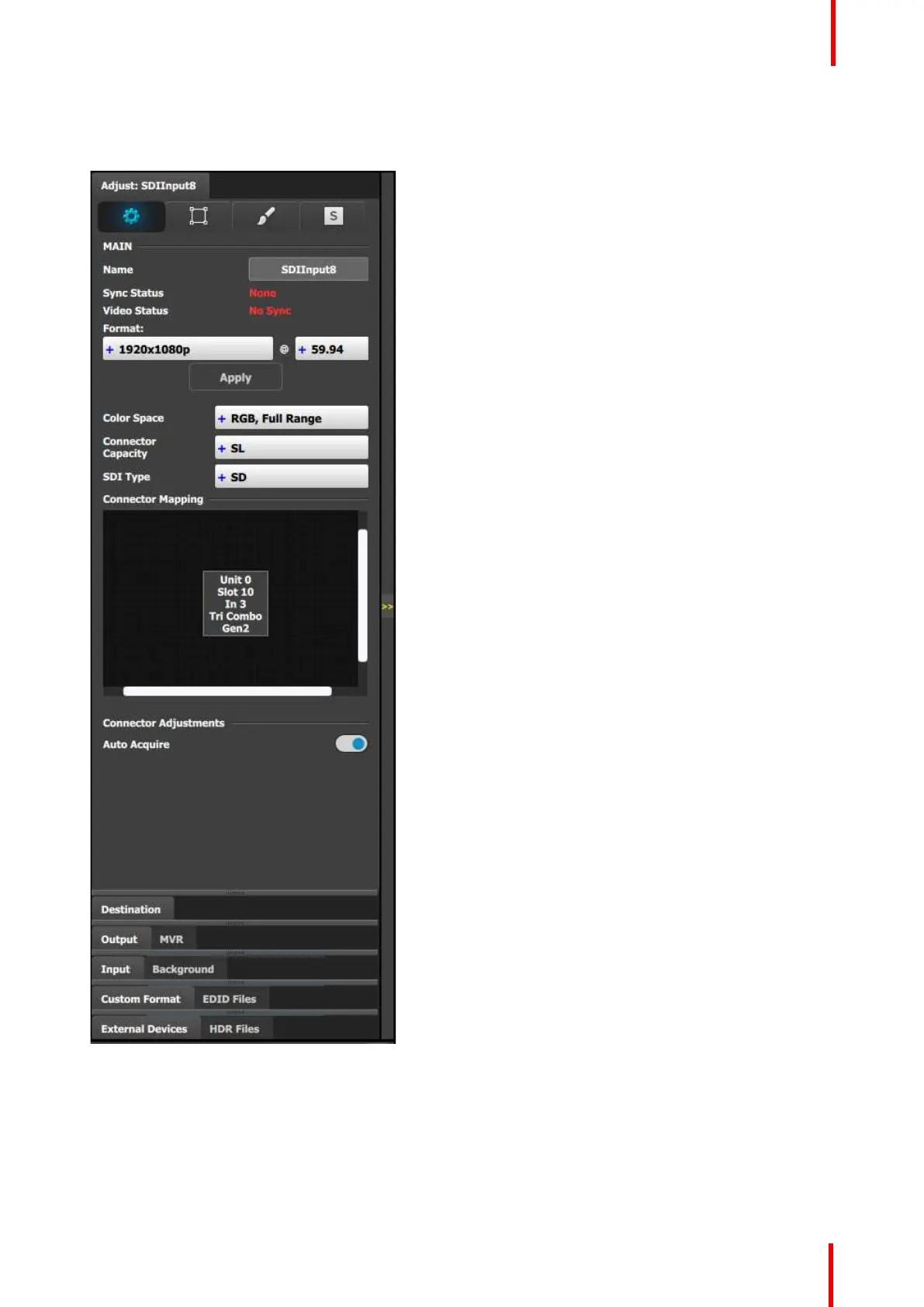

• SDI input type
The SDI input configuration menu is similar to the DVI/HMDI/DP menu but without the EDID and HDCP
sections. In addition the SDI menu includes an addition selection regarding the SDI type.
• Name: Edits the name of the input configuration.
• Sync Status: Detects a good video sync.
• Video Status: Indicates if the connector capacity is
in par with the input resolution.
• Format: The detected video format is shown here.
If Auto Acquire is unchecked below, the desired
input video format is selected here from the drop-
down menu.
• Color Space: The detected color space is shown
here. In the event of a non-VESA standard source
the color space can be unmatched to the
processing. In this case a different color space can
be selected to accommodate the signal. Available
are:
- RGB, Full Range
- RGB, Reduced Range
- SMPTE, Full Range
- SMPTE, Reduced Range
• Connector Capacity: Each connector has the
option to accommodate different bandwidth
standards over its interface. This is referred to as:
- NONE The connector is turned off and cannot
accept any video, bandwidth of this connector
is freed up to be used by another connector.
Connector is grayed out in the graphic
representation. Connectors need to be
selected to NONE before DL or 4K can be
selected on others.
- SL Single Link The connector can
accommodate a resolution up to 2048 x
1080@60Hz.
- 4K The connector can accommodate a
resolution up to 4K@60P.
Note: On Gen 1 input cards, in order to
accommodate a 4K@60 signal, 2 or 4
connectors need to be used.
• SDI type (available with SDI connector type) : allows a choice between SD (297 Mb); HD (1.5Gb); 3G
(3Gb) Level A, Level B, Level A 2SI, or Level B 2SI; 6G (6 Gb); or 12G (12 Gb). The 6G and 12G settings
are available only for the SDI inputs on the Tri-Combo Input card.
The SDI Type options vary, depending on the format of the input signal. For example, for:
- NTSC/PAL—the SDI Type can be only SD.
- 1080i or 1080p, with a refresh rate less than or equal to 30 Hz—the SDI Type can be only HD.
EM GUI orientation
