• DVI, HDMI and DisplayPort input types – bottom half
• Bit Depth: User-selectable bit depth for use with
custom EDID.
• DisplayID Block (for DP 1.2 inputs only): When this
checkbox is checked, the EDID is programmed
with a "Tiled display topology" data block. This is
useful for multi connector input configurations. Do
not enable this feature if the input is a single input
configuration.
• DP 1.2 Non-compliant Device: Select to indicate
that the device is not compliant with the
DisplayPort 1.2 specification.
• EDID Timing: The EDID timing can be edited into a
non standard, or Custom EDID by double clicking
on each timing box and inserting a value. A EDID
timing needs to follow the VESA rules, and
typically a VESA calculator needs to be used.
Once a value is inserted ENTER needs to be
pressed.
Selected EDID or Custom EDID can be applied to
all inputs of the same type at once by selecting the
checkbox towards the end of the panel.
• Apply Changes button: Applies changes to the
current input format.
• Save Custom Format: Saves changes to a custom
format.
• EDID: Apply to All Inputs: Applies the current
format to all inputs.

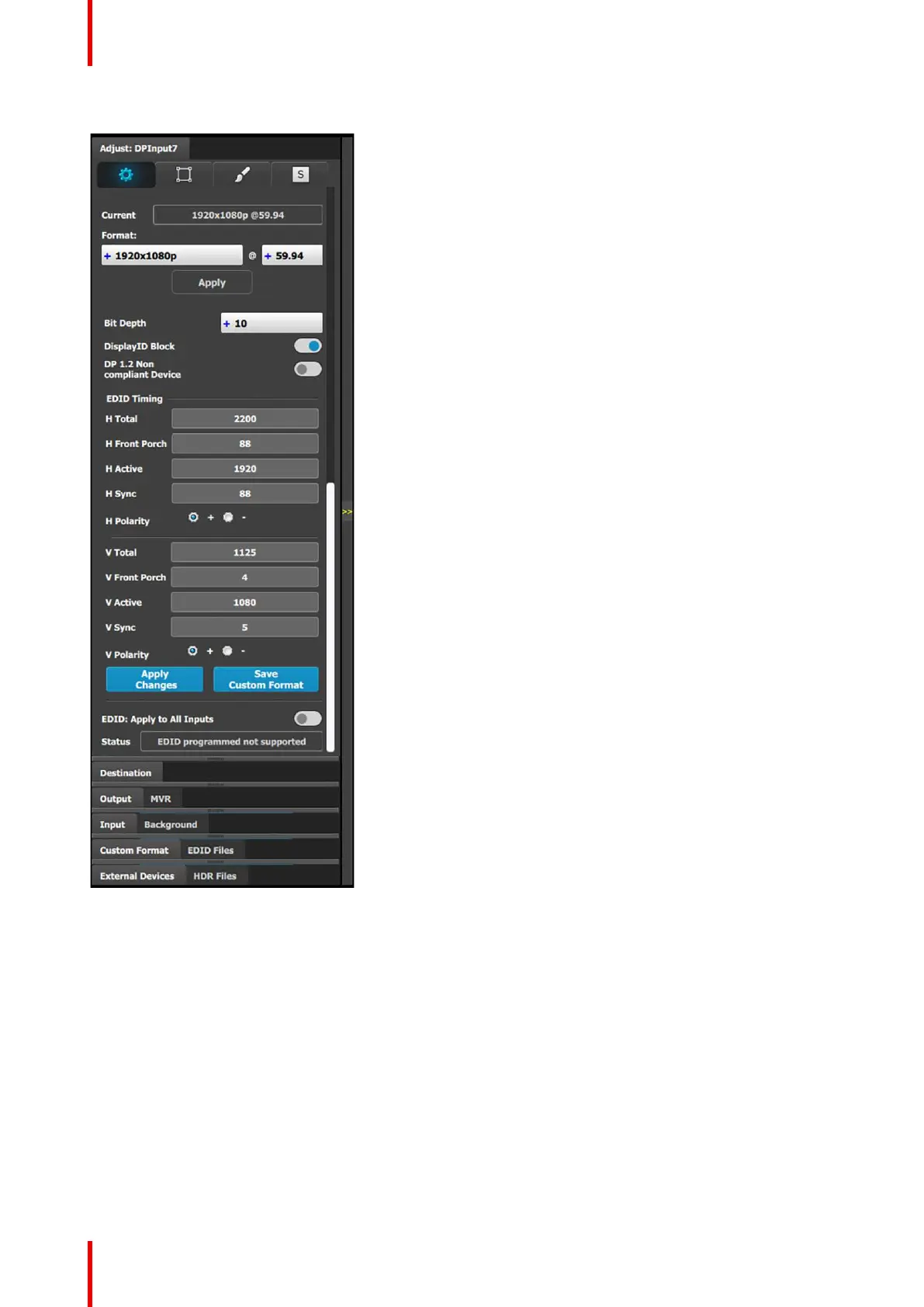

EM GUI orientation
