R5905948 /12 Event Master Devices 141

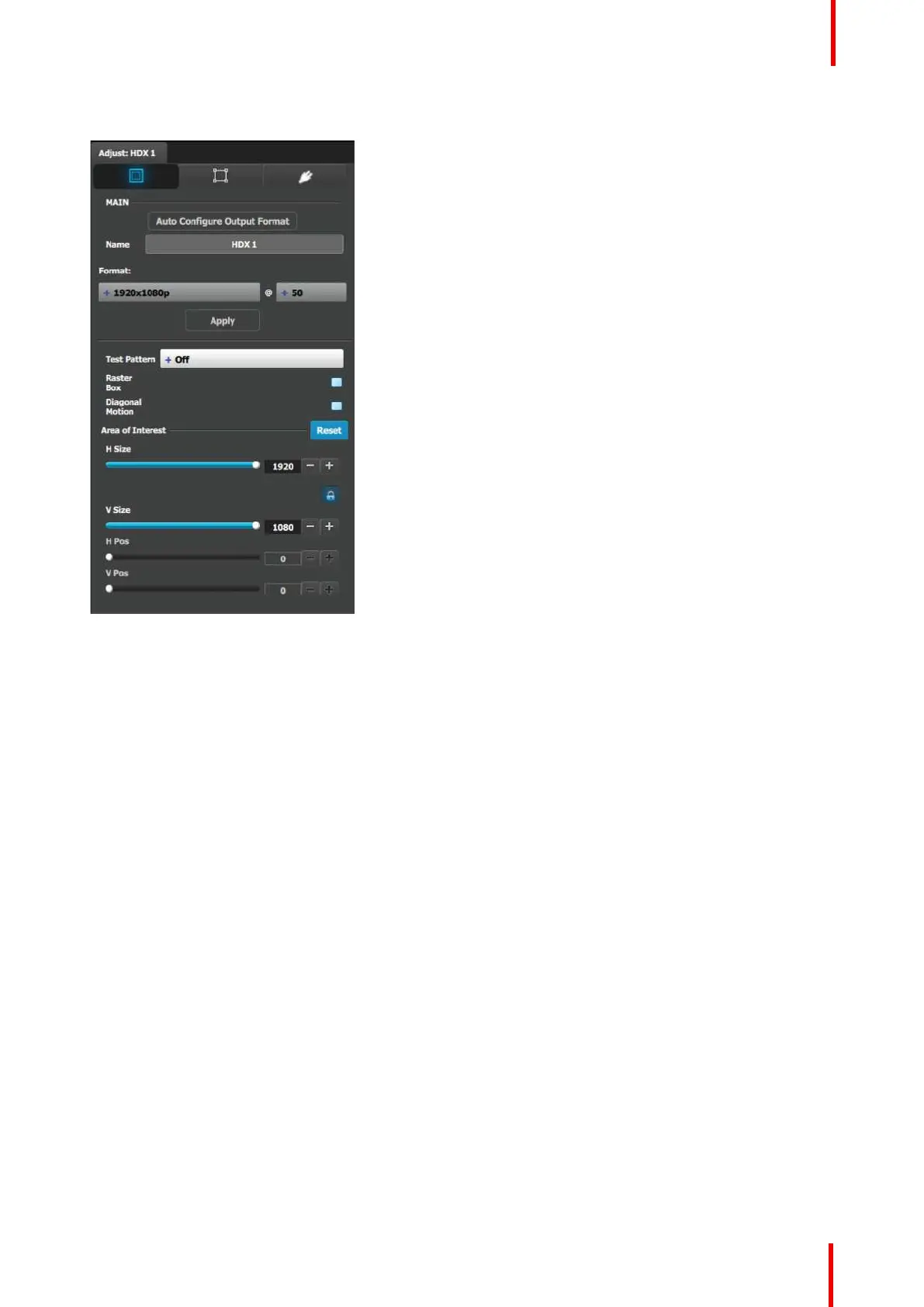

Output adjustment panel > Main page
• Auto Configure Output format: Sets the output
format to match the format contained in the EDID
of the display device connected to the
corresponding output(s).
• Name: The name of the output configuration can
be edited in this field.
• Format: Selects the video format of the output
configuration from the drop-down menu. The
available formats are in compliance with the output
connector capacity. For example, if the connector
capacity is set to SL (Single Link), only single link
formats will be presented in the drop-down menu.
• Test pattern: Turns the Test Patterns ON and
select the desired type. The default setting is OFF.
Test pattern types :
• Horizontal Ramp
• Vertical Ramp
• 100% Color Bars
• 16x16 Grid
• 32x32 Grid
• Burst
• 75% Colorbars
• 50% Gray
• Horizontal steps
• Vertical steps
• White
• Black
• SMPTE Bars
• H Alignment
• V Alignment
• H V Alignment
• Circle Alignment
• Red
• Green
• Blue
• Raster box: Turns ON or OFF on a raster around
the default active area. This raster box is a white,
single-pixel-wide broken line.
• Diagonal Motion: Turns the Diagonal Motion ON or
OFF for select patterns
- The motion is a bottom-right to top-left diagonal
for 16x16, 32x32 grid
- The motion is right to left for 100% Color Bars.
- There is no motion in Horizontal and vertical
Ramps and other patterns
• Area of Interest (AOI): A raster box that can be
positioned and sized within the outputs active
area, it effectively makes the AOI the new active
area.
This raster box is a green, single-pixel-wide
broken line that helps you adjust the AOI within the
output’s active area
The handles for the AOI menu are:
- H Size and V size : Adjusts the horizontal and
vertical positions respectively
- H Pos and V pos: Adjusts the horizontal and
vertical positions respectively
- Note a lock button to allow user to lock the
aspect ratio of the size.
• Reset button: resets the AOI to default which is the
full output area.
EM GUI orientation
