Barco Event Master E2 Series User Manual

R5905948 /12 Event Master Devices 167

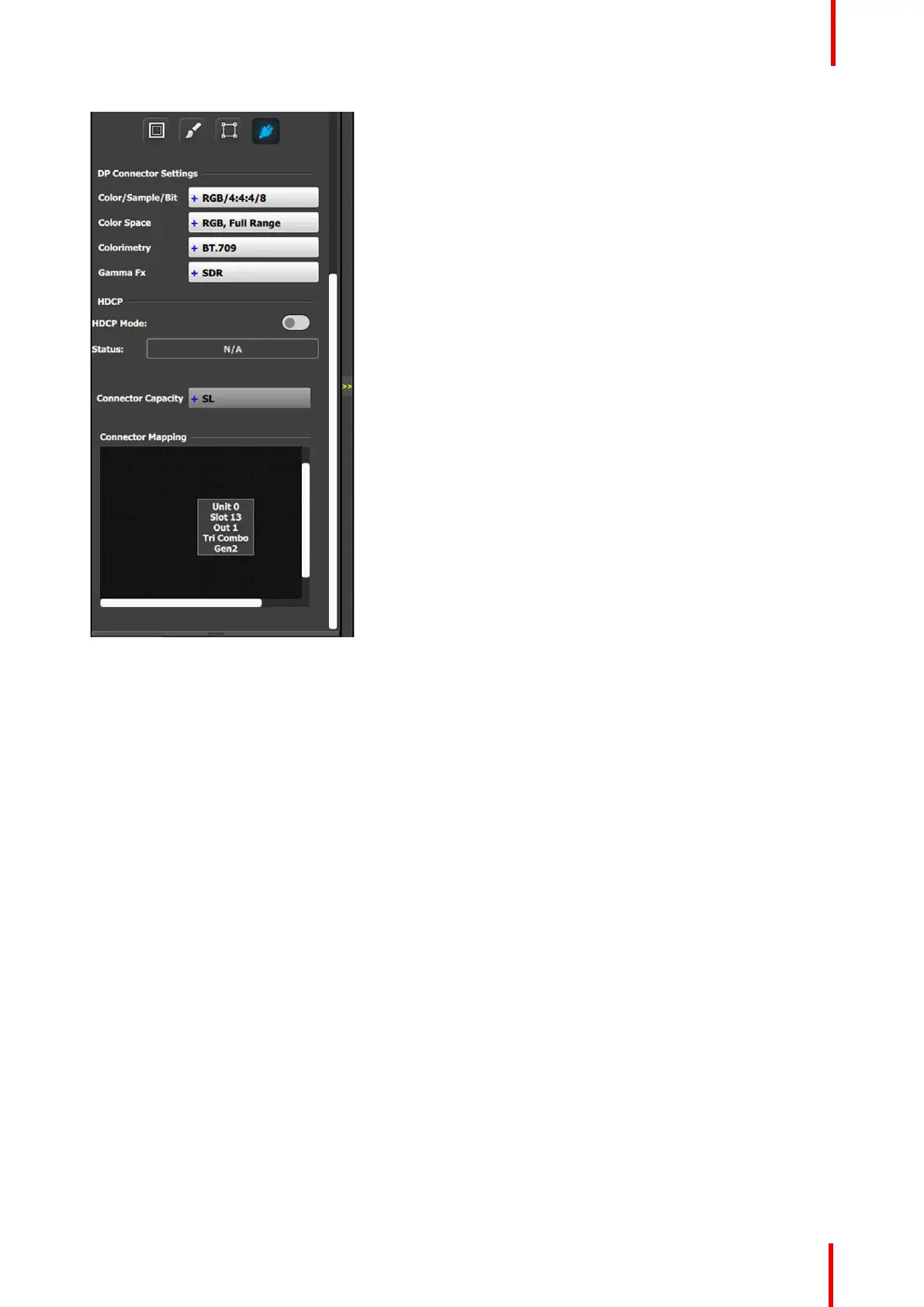

DisplayPort Connector submenu
DisplayPort Connector submenu
• Color/Sample/Bit: Adjusts the color space (RGB
or YCbCr), sampling rate (4:4:4) and bit depth (8,
10, or 12) of the output signal.
• Color Range: Adjusts the color range (RGB or
SMPTE, Full or Reduced).
• Connector Capacity: If the connector is not
assigned to a destination, the capacity can be
changed. Once included in a Destination
configuration this needs to be managed thru the
Adjust pane of the Destination.
• Connector Mapping: Shows the Unit ID, Slot
number, and type of output card.
EM GUI orientation
