R5905948 /12 Event Master Devices 225
• Range: 0 to 100
• Default: 5
Saturation Gain: This defines the transition along the
saturation axis between keying off and keying on.
• Range: 0 to 100
• Default: 5
Reset: Press to return all hue, clip, gain, and opacity
settings to their default values.
Pick Hue
The Pick Hue button allows the user to pick and apply a selected hue from any single Layer.
1. Click on the Pick Hue button.
Clicking on the Pick Hue button for a Layer places a crosshair on the Layer in Preview in the Programming
Diagram area.

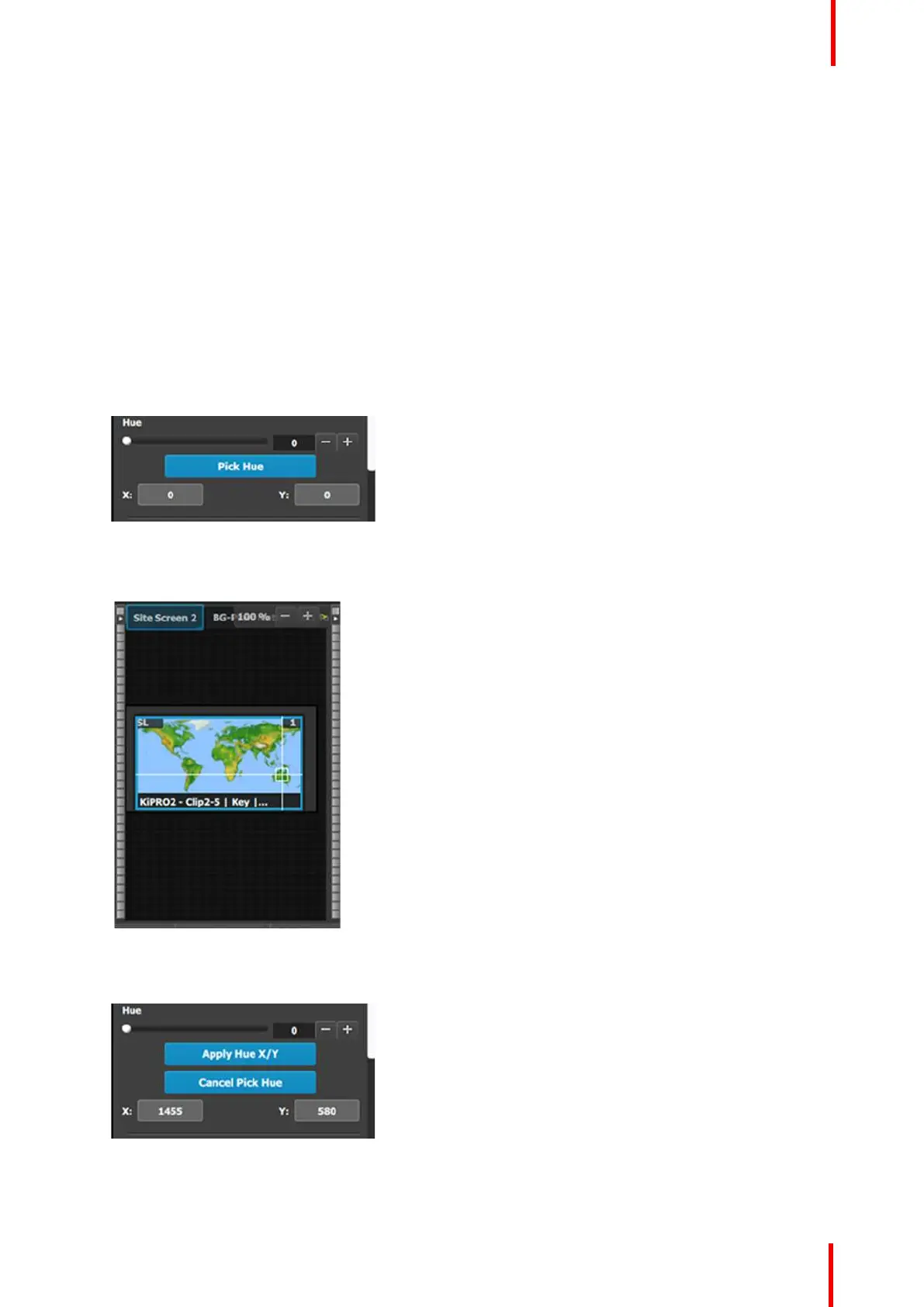

Image 6-87: The Pick Hue button
2. Click and drag the crosshair to the area above the desired hue.
The user can move the crosshair using either the cursor or the X and Y edit boxes.
Image 6-88: Crosshairs
3. Complete the operation by clicking on the Apply Hue X/Y button, or cancel the operation by clicking on the
Cancel Pick Hue button.
Image 6-89: Apply Hue or Cancel
EM GUI orientation
