R5905948 /12 Event Master Devices234
Overwrite User key
This button is enabled if a layer and a user key are selected. Pressing this button overwrites the layer data in
the selected user key, but the name of the user key is not updated unless the Creation Option is set to either
“Rename” or “Rename-Lock.” The attributes saved are based on the selection of the Enables boxes. If no
boxes are checked, no user key can be saved.
Delete User Key(s)
Allows for multiple deletes of User keys.
1. Click the Delete UserKey(s) button.
2. Select the User Key to be deleted by clicking the X next to the lock for that User Key.

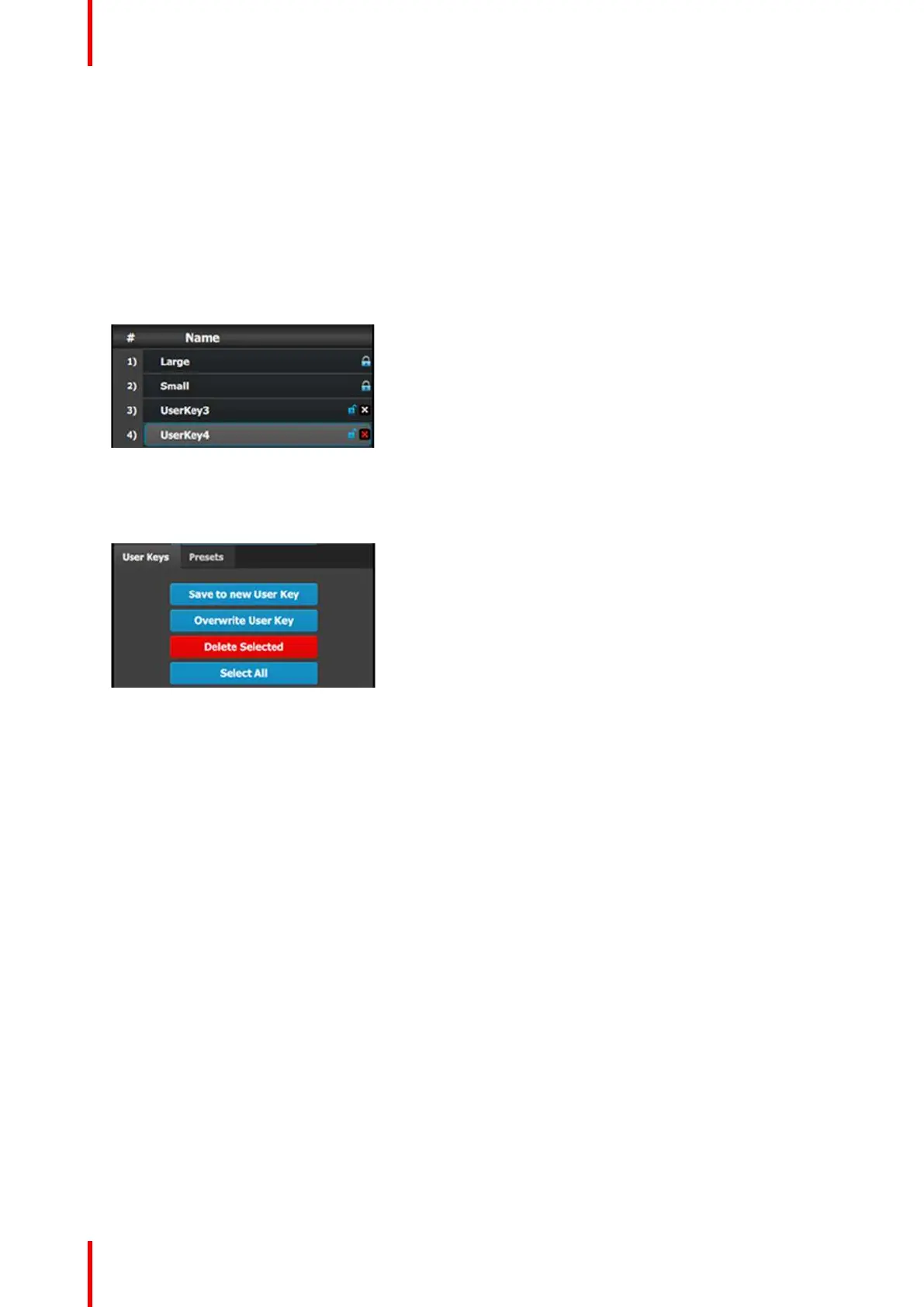

Image 6-94: Select a User Key
Note: If a User Key is locked, it cannot be deleted.
3. Select Delete Selected to delete only the selected User Key(s), or select Select All then select Delete
Selected to delete all User Keys.
Image 6-95: Delete Selected User Keys
User key list
Lists all User Keys, sorted numerically by register number.
Search edit box
Search User keys by name. A list of User Keys including the selection appears instead of the full list.
Search Number (# icon)
Entering a number between 1 and 999 searches for, selects, and shows that number User Key.
Apply Selected
The selected User Key is applied to the selected layer(s) on Preview and on Program if layers are selected on
unlocked destinations.
Renaming User Keys
Change the name of a User Key by double-clicking on the name itself. The list is not reordered based on the
new name.
Renumbering User Keys
Edit the number of a User Key by double-clicking on the number. The list is reordered based on the new
number.
EM GUI orientation
