Diagnostic subtab

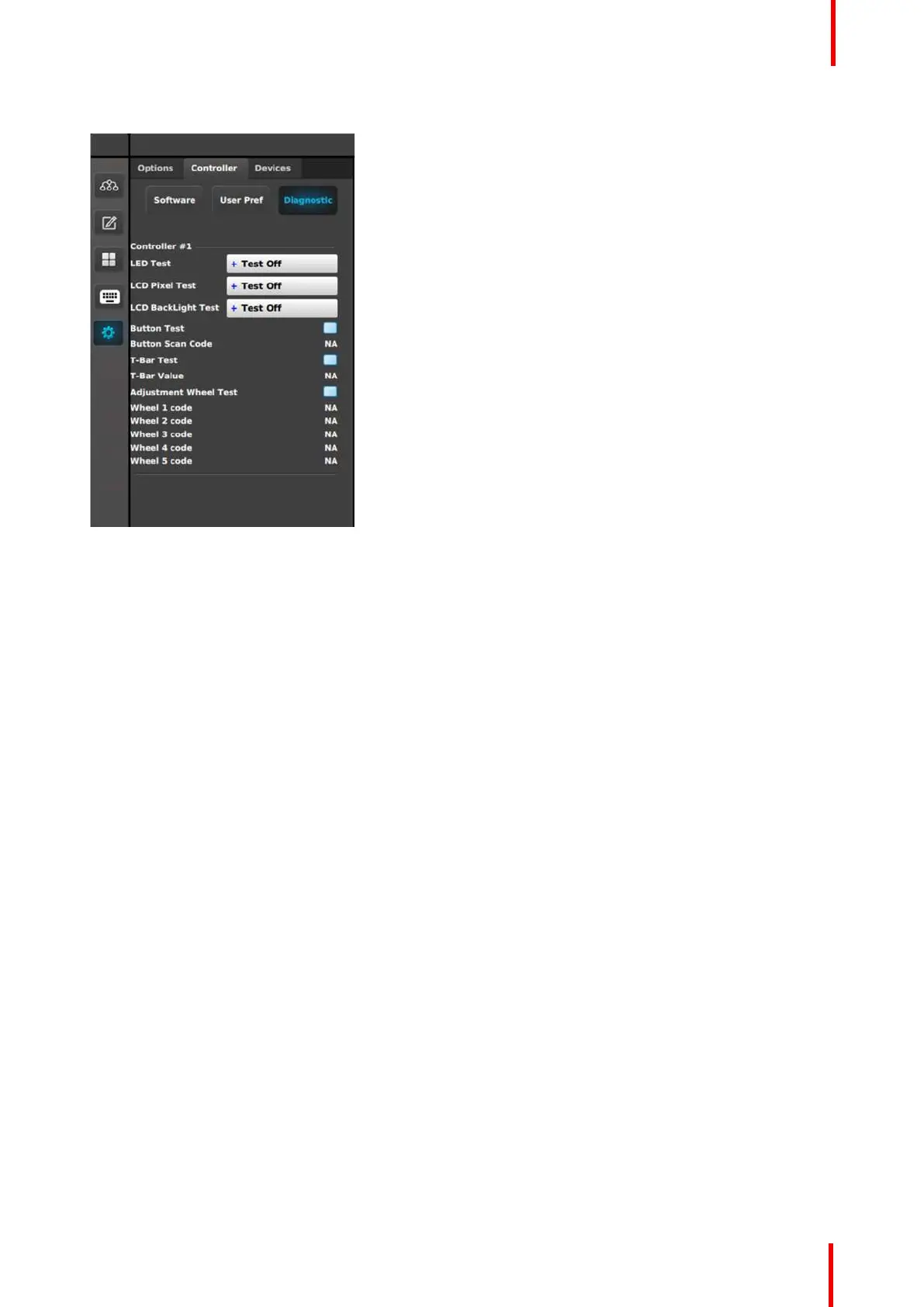

Controller tab: Diagnostic subtab
This panel displays test controls for each detected
controller.
• LED Test:
- Test Off: LEDs are returned to normal behavior.
- All Blue/Red: Turns on all blue and red LEDs;
other LEDs are turned off.
- All Green: Turns on all green LEDs; other LEDs
are turned off.
• LCD Pixel Test:
- Test Off: LCD text is returned to normal
behavior.
- All: All LCD displays are filled (all 256 bits are
enabled).
• LCD Backlight Test:
- Test Off: LCD colors are returned to normal
behavior.
- Red: Only LCD red color is turned on.
- Green: Only LCD green color is turned on.
- Blue: Only LCD blue color is turned on.
- All: LCD red, green, and blue colors are all
turned on.
• Button Test:
- Checkbox checked: The test is on.
When the test is on, do not trigger the behavior
of the button. For example, if a button is
mapped to a Preset, do not recall that Preset.
- Button Scan Code: With the Button Test On,
pressing a button on the controller shows the
button number returned by the API (in place of
the “NA”).
• T-Bar Test:
- Checkbox checked: The test is on.
- T-Bar Value: Moving the T-Bar shows the
number returned by the API as the T-Bar
changes positions.
• Adjustment Wheel Test: (EC-200/EC-210 only)
- Checkbox checked: The test is on.
- When the test is on, rotating the wheel shows
the number returned by the API.
Description of the Devices tab of the Resources area
The Devices tab lists devices, such as projectors, that are available on the same network as the EMP. Devices
such as other processors (E2, S3–4K, EX, etc.) are also displayed in this list.
