R5905948 /12 Event Master Devices260

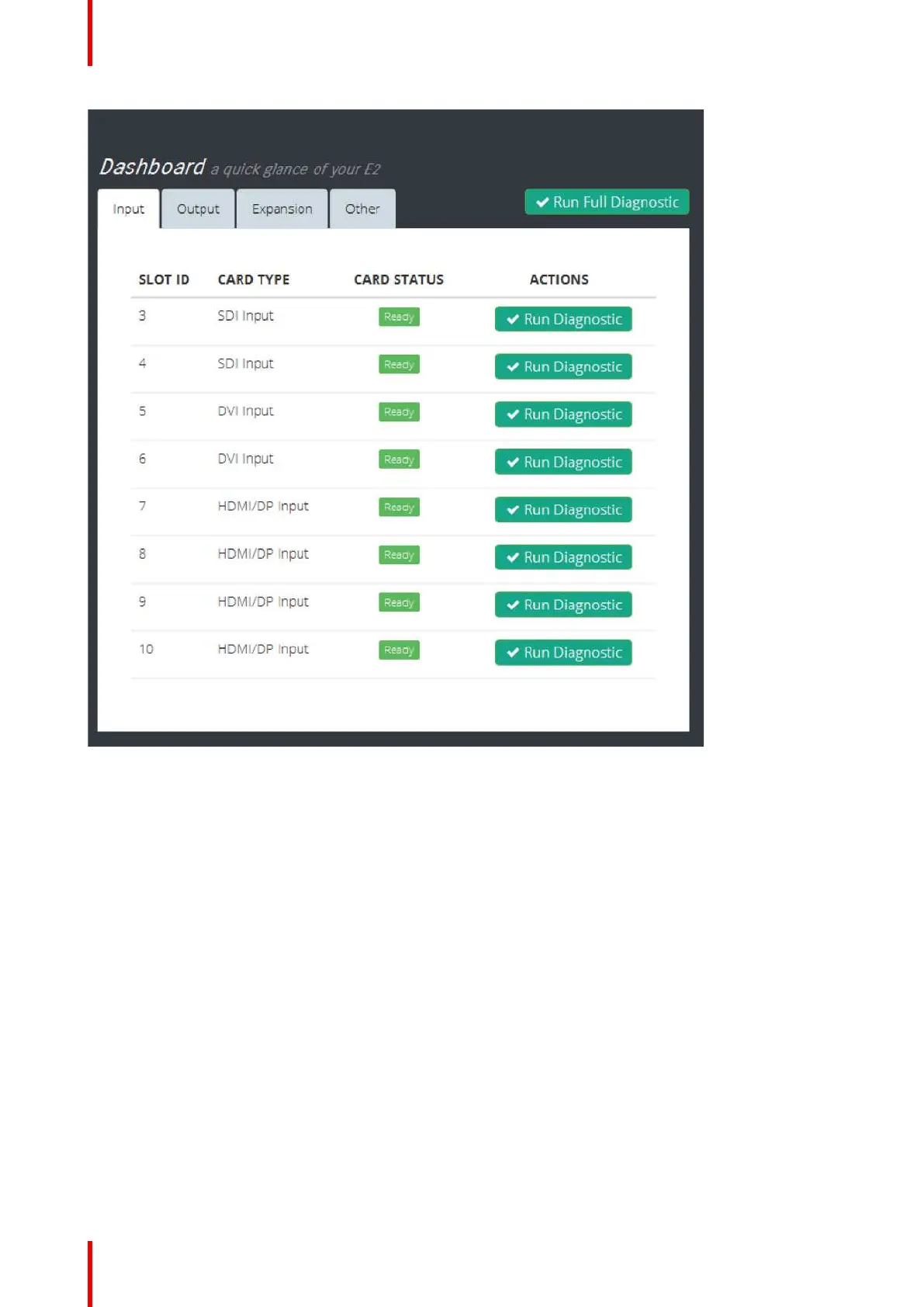

Image 6-120: Dashboard Input

Outputs

This menu presents a list of the output cards installed in the system. The status column indicates whether any

errors have been detected. Detailed diagnostics tests for each card are performed by selecting the diagnostics

button under the action column.
