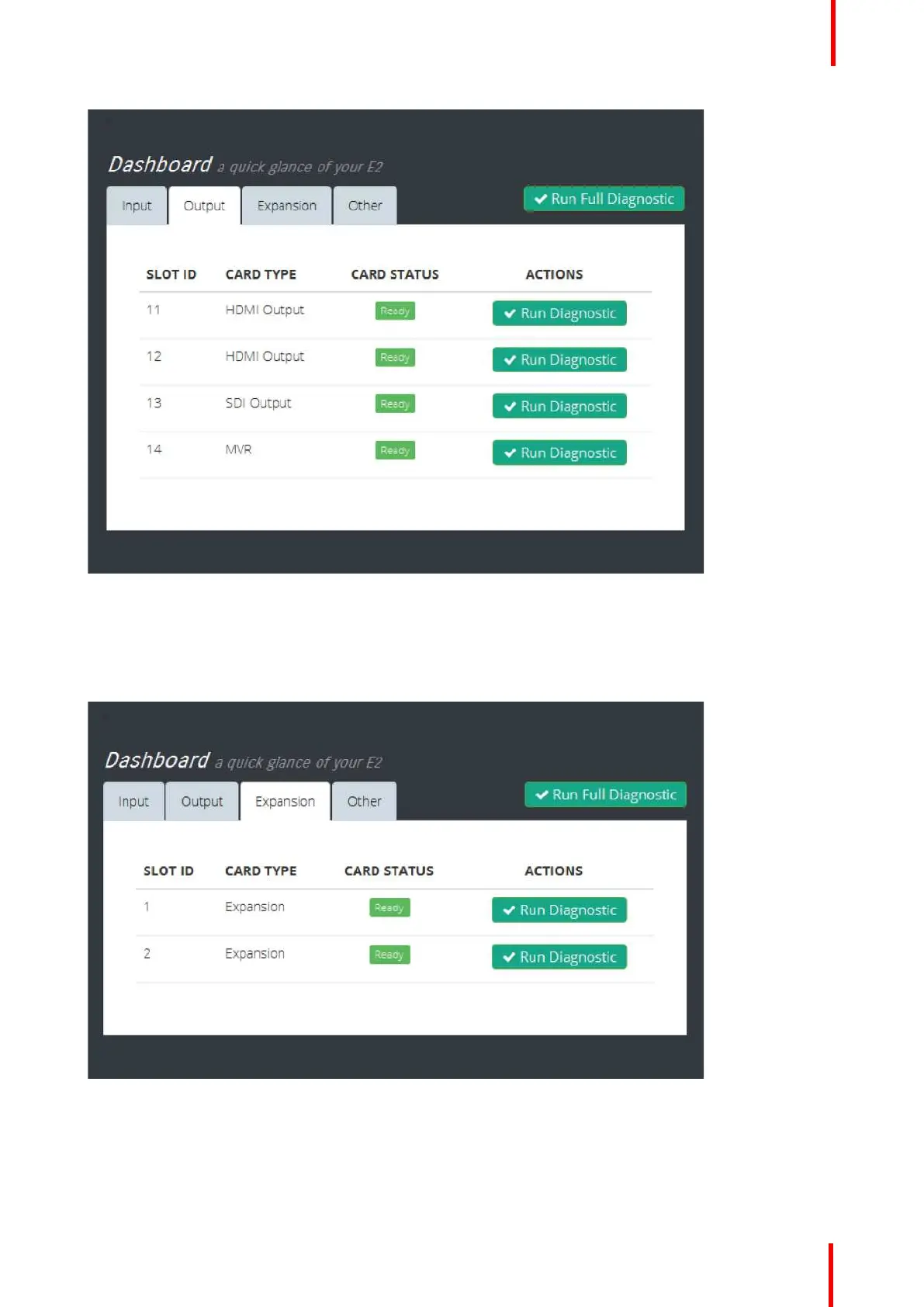

Image 6-121: Dashboard Output
Expansion
This menu presents diagnostics for the Expansion card. The status column indicates whether any errors have
been detected. Detailed diagnostics tests for each card are performed by selecting the diagnostics button
under the action column.
Image 6-122: Dashboard Expansion
Other
This menu presents diagnostics for the Motherboard and all VPU cards. The status column indicates whether
any errors have been detected. Detailed diagnostics tests for each card are performed by selecting the
diagnostics button under the action column.
