R5905948 /12 Event Master Devices368
Contextual
Button
Display
Description
• DEST + Super Dest -2 ENTER disarms Super Destination 2 while
leaving Super Destinations 1 and 4 still armed.
CD5 Super Aux
• DEST + Super Aux # ENTER arms that particular Super Aux (Including
the AUXes that compose it).
• DEST + Super Aux 1 Thru 3 ENTER arms Super Auxes 1, 2, and 3.
• DEST + Super Aux - 3 ENTER disarms Super Aux 3.
CD6 Empty
CD7 BG Toggle Activate Toggle mode on selected destinations BG on/off .
CD8 Trans Curve will toggle between Linear / S-curve / Log / Exp.
CD9 Empty
CD10 Empty
CD11 Freeze PGM Freezes Program in selected Destinations including Sources and
Backgrounds.
CD12 Empty
Layer

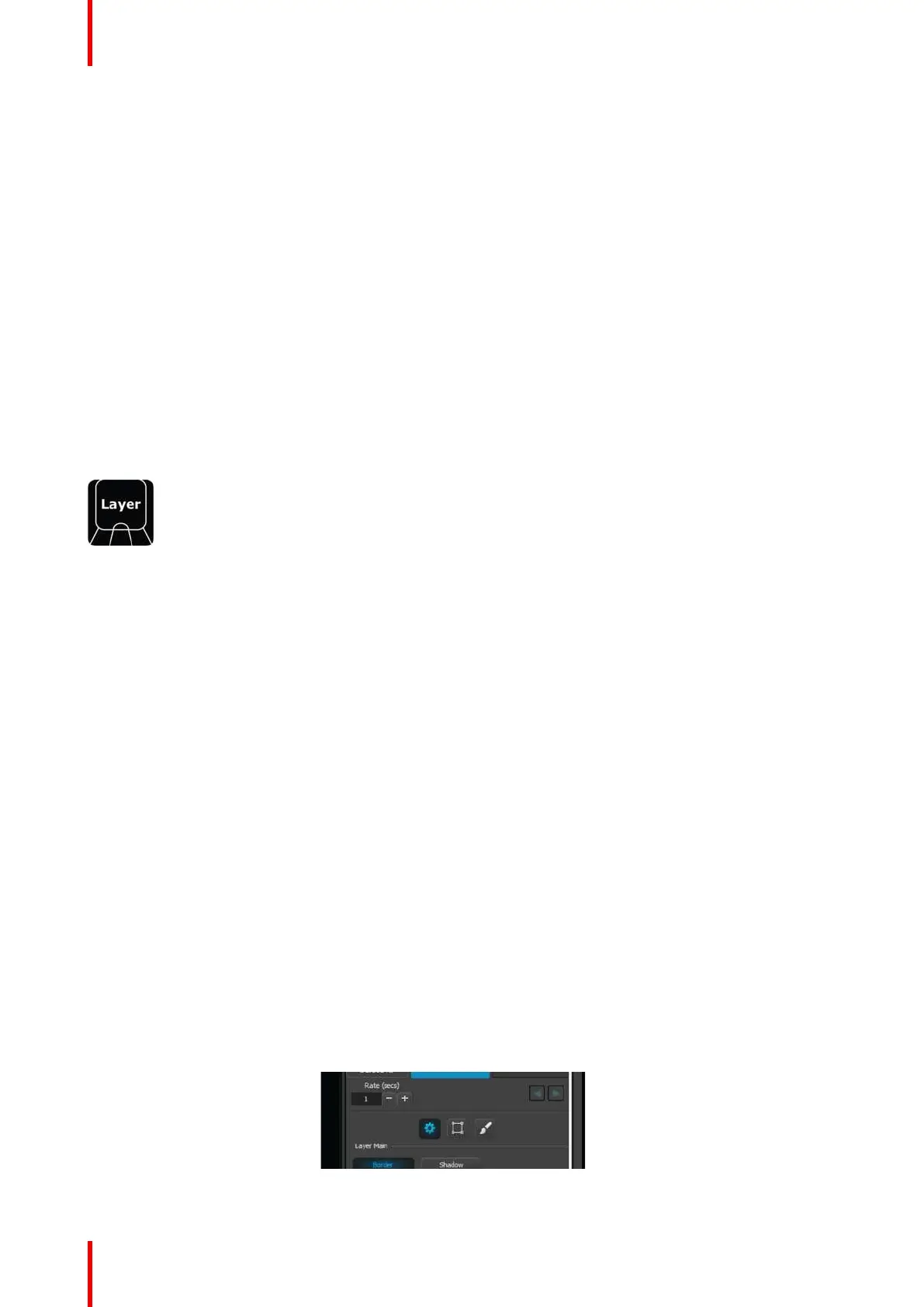

Image 12-7
Layer refers to a layer that can hold live video. See the earlier Chapters for the definition of Layer.
When Layer is pressed it lights its blue LED and opens the syntax entry for numbers and modifiers as per
below:
• LAYER # ENTER will select LAYER #, just as clicking it in the GUI.
• LAYER 1 + 3 + 5 ENTER will select LAYER 1, 3 and 5 just as clicking it in the GUI with Multiple Select on.
• LAYER – 3 ENTER deselects LAYER 3, while LAYERS 1 and 5 stay selected.
• LAYER CLEAR removes all currently selected layers from Preview and unlocked Program.
The contextual Buttons to the right of the numpad also light up and are populated with functionality that can be
used in the syntax. These are:
Contextual
Button
Display Description
CD1 PIP Selects selected Layer as PIP, indicates that by color Green backlight.
CD2 KEY Selects selected Layer as KEY, indicates that by color Red backlight.
CD3 Super Layer
• LAYER + Super Layer # ENTER selects Super Layer #, just as in the
GUI.
• LAYER + Super Layer 1 + 4 + 6 ENTER selects Super Layers 1, 4, and
6, just like clicking on them in the GUI with Multiple Select turned on.
• LAYER + Super Layer –1 ENTER deselects Super Layer 1 and Super
Layers 4 and 6 stay selected.
• LAYER + Super Layer + CLEAR clears all selected Super Layers from
their respective Destinations.
CD4 Layer Main Thumbnail like GUI “Sprocket”.
Selected layer Adjustment area is indicated by light blue backlight.
Selects and open the Layer Main area:
Controller Operation
