Barco Event Master E2 Series User Manual

R5905948 /12 Event Master Devices 369
Contextual
Button
Display
Description

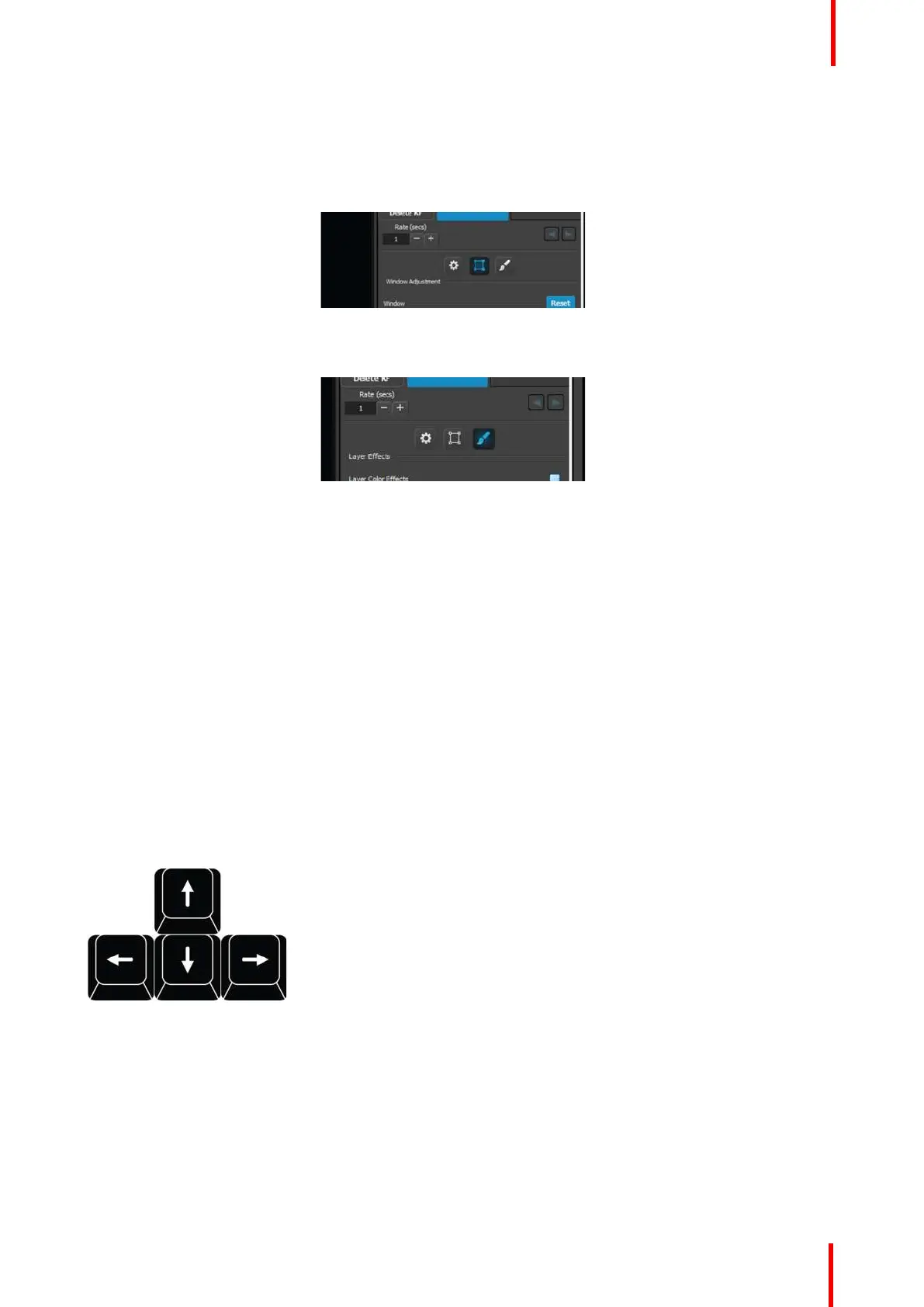

CD5 Layer Window Thumbnail like GUI “Box”
Selected layer Adjustment area is indicated by light blue backlight
Selects and open the Window Adjustment area:
CD6 Layer Effects Thumbnail like GUI “Brush”
Selected layer Adjustment area is indicated by light blue backlight
Selects and open the Layer Effects area:
CD7 Empty Empty
CD8 Border ON/OFF Toggles Border setting of selected layer ON vs OFF.
CD9 Shadow ON/OFF Toggles Shadow setting of selected layer ON vs OFF.
CD10 Reset Same as Reset in GUI
CD11 Full H Same as in GUI
CD12 Full V Same as in GUI
PAGE 2 via PG Up (Page 1 via PG Down respectively) :
Contextual
Button
Display Description
CD1 Add Keyframe Adds Keyframe to selected Layers.
CD2 Delete Keyframe Deletes Keyframe of selected Layers.
Layer functions are mapped as below:
WH 1 H Pos
WH 2 V Pos
WH 3 Layer size (Keep AR whether unlocked or not.)
Arrow Buttons
Image 12-8
The standard function is moving a layer just as in EMTS now.
When the Barco Eye Button is pressed and held the arrow buttons will allow for Z-Order alignment, selected
layers will move one Z-order up or down according to the arrow indication- Left arrow is top most Z-order Right
arrow is bottom most Z-order.
Controller Operation
