Source

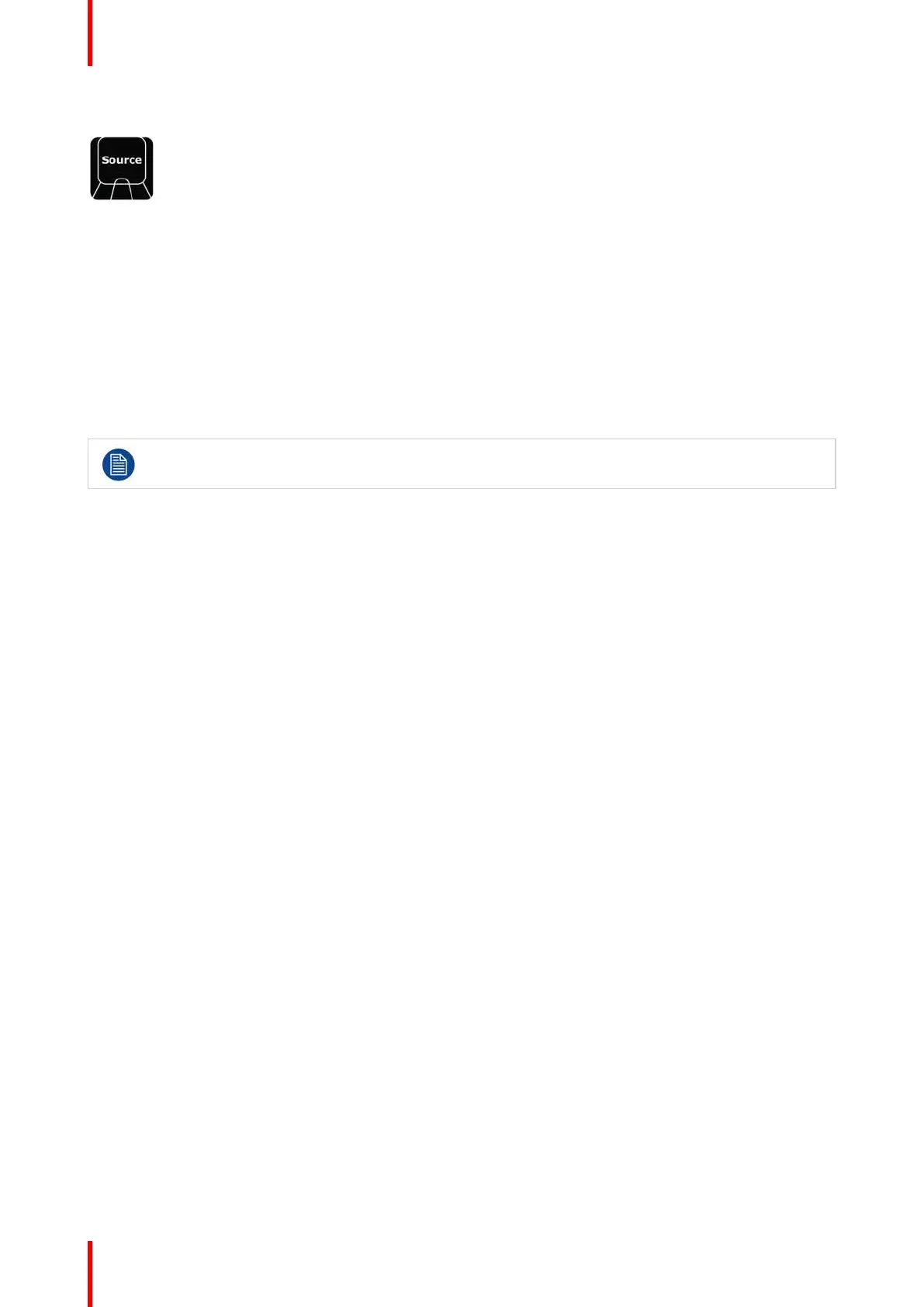

Image 12-9
Source refer to an source of image or video such as a Source file, Still store and Destination. See the earlier
Chapters for the definition of Source.
When Source is pressed it lights its blue LED and opens the syntax entry for numbers and modifiers as per
above and in detail below:
• SOURCE # ENTER will add Source file # to the selected layer or add a layer, just as dragging it in the GUI.
• SOURCE 1 THRU 4 ENTER will add Source file 1 to the Z-order first selected layer and continue to add
source files 2 – 4 to Z-order layers 2 – 4 or add as many layers needed until no layers are available.
• SOURCE 1 + 5 + 88 ENTER will add Source file 1 to the Z-order first selected layer and continue to add
source files 5 and 88 to Z-order layers 2 – 3 or add as many layers needed until no layers are available.
Note: SOURCE syntax support the . (dot) as indicating a source file like 88.5
For live input sources, Source is the actual source file, not the input in number.
The contextual Buttons to the right of the numpad also light up and is populated with functionality that can be
used in the syntax. These are:
Contextual
Button
Display Description
CD1 RESET Size Once pressed Resets the Sizing Adjustments of the source in the selected
Layer, just as clicking the Blue Reset icon button in the GUI.
If multiple layer are selected, no source files sizing is Reset.
CD2 Create Source
(file)
Creates new source file just like the plus button in the GUI
CD3 SAVE Source Saves the source file
CD4 Source Adjust Opens the Adjust of the selected source on the Sprocket page.
CD5 Color Adjust Opens the Adjust of the Color correction of the selected source on the
Brush page
CD6 Empty
CD7 Freeze Input Will freeze the INPUT of the selected source file. If the selected source IS
frozen it will be un-frozen.
CD8 Bind Binds Source file to User key per syntax.
SOURCE # (is source file) BIND # (is user key number) ENTER
CD9 Empty
CD10 Empty
CD11 Empty
CD12 Empty
Wheels for Source Adjust (Sprocket)
WH1 Source H Size (AR lock must be unlocked to adjust seaparately from
Source V Size)
WH2 Source V Size (AR lock must be unlocked to adjust seaparately from
Source H Size)
WH3 Source H Pos
WH4 Source V Pos
WH5 Source Aspect Ratio (Selects from drop down list)
