R5905948 /12 Event Master Devices 371
Wheels for Color Adjust (Brush)
WH1 Contrast Overall
WH2 Brightness Overall
WH3 Gamma
WH4 Hue
WH5 Saturation
Device

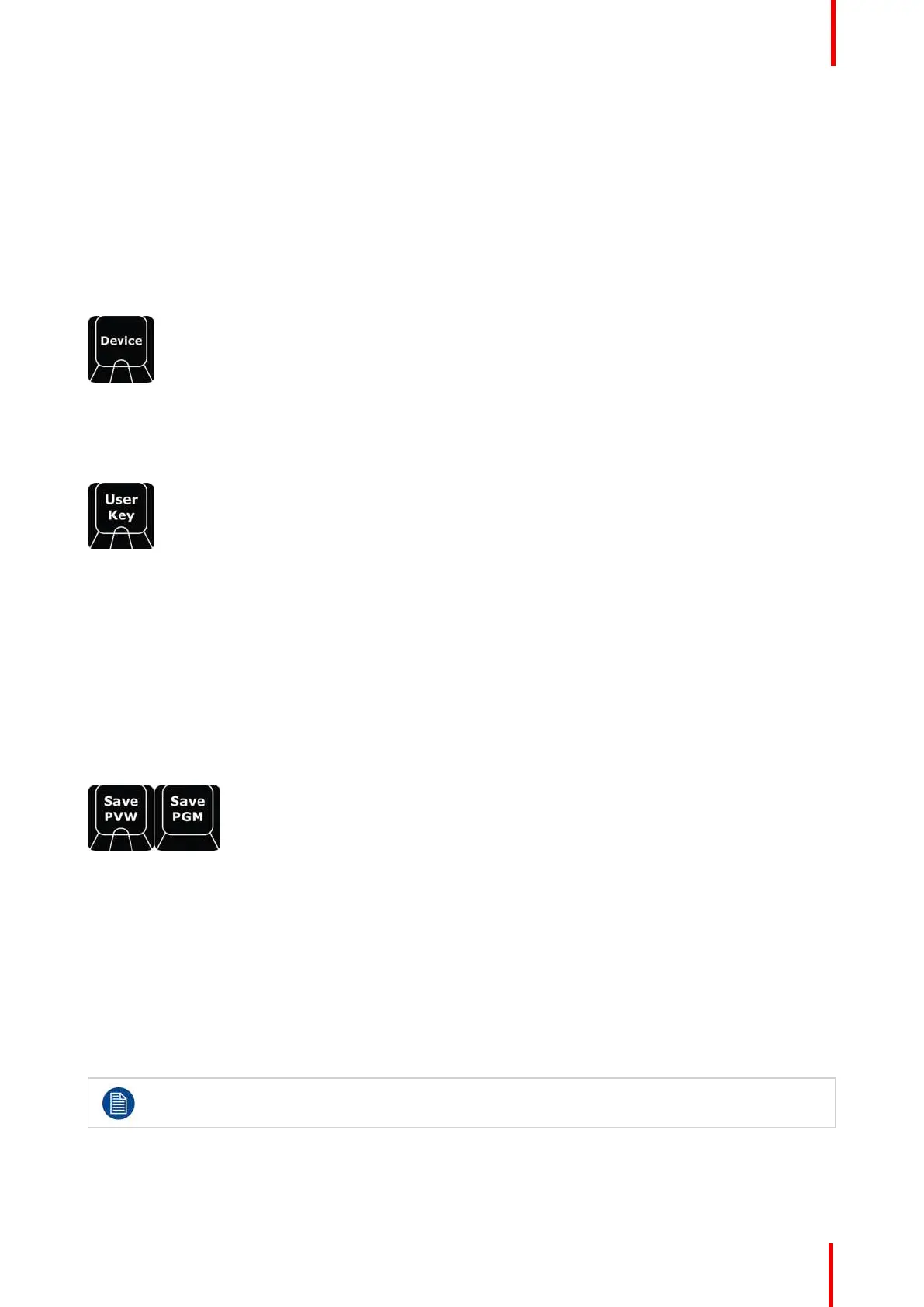

Image 12-10
At present, this key has no functionality assigned.
User Key
Image 12-11
User Keys are building blocks of settings for the Layers. See the earlier Chapters for the definition of user
Keys.
When User Key is pressed it lights its blue LED and opens the syntax entry for Record and Recall of user
keys.
Recording of a Preset is done in conjunction with the Save PVW and Save PGM Buttons like below:
• USERKEY # ENTER will recall userkey # to all selected layers.
• USERKEY 5 + 11 + 7 ENTER will add userkey 5 to the Z-order first selected layer and continue to add
userkey 11 and 7 to Z-order layers 2 – 3
To record userkeys you can have only one Layer selected. Recording a userkey is done via the below syntax:
Image 12-12
• SAVE PVW USERKEY # ENTER will save the currently selected layer properties in Preview into the selected
number. If the number exists it will be overwritten with the current settings/enables.
• SAVE PGM USERKEY # ENTER will save the currently selected layer properties in Program into the selected
number. If the number exists it will be overwritten with the current settings/enables.
• USERKEY ENTER saves next available userkey.
The contextual Buttons to the right of the numpad also light up and are populated with functionality that can be
used in the syntax. These are:
CD1 -11 is the Enables and toggles on off
CD12 is All / None as toggle function
Enables of the User Keys are described in an earlier chapter.
