R5905948 /12 Event Master Devices392
4. Loosen and remove the standoff.

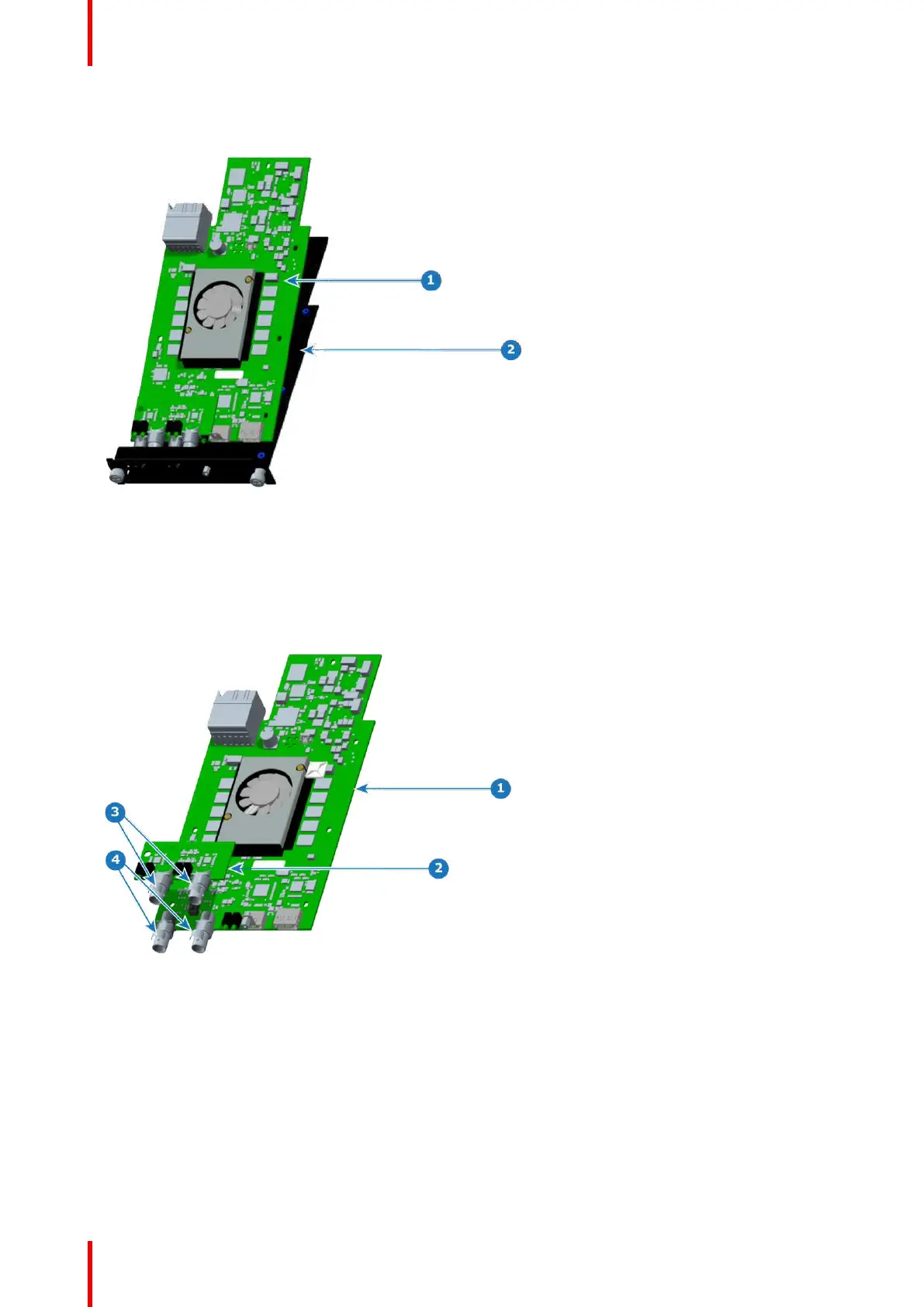

Image 14-10: PCBA and mounting bracket
1
PCBA (with mezzanine and fansink installed)
2
Mounting bracket
5. Remove the PCBA from the sheet metal bracket.
Image 14-11: Mezzanine removal
1
PCBA (with fansink installed)
2
Mezzanine
3
Mezzanine BNC connectors
4
Mainboard BNC connectors
6. Remove the mezzanine.
7. Remove the fansink (heatsink fan), if necessary.
Turn over the PCBA and push the fansink pins. (The fansink pins will not come free of the fansink.)
