R5905948 /12 Event Master Devices476
Overview

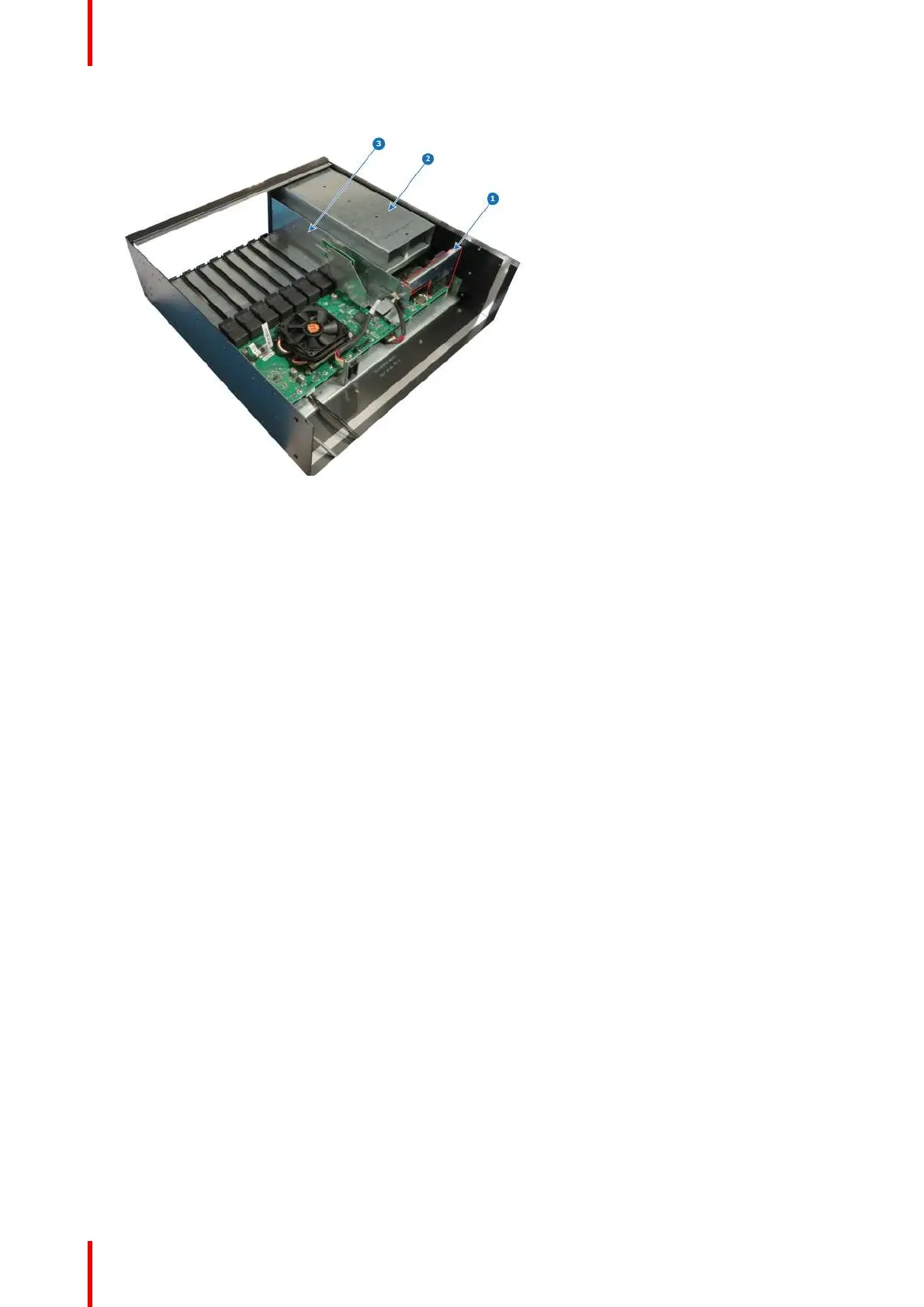

Image 15-55
1 Power Interposer
2 Power supply guide
3 Side Support Plate
Concerned parts
R767279K POWER INTERPOSER
ASSEMBLY
Necessary tools
1 x Phillips Screwdriver #2
How to remove Power Interposer Assembly
1. Remove the pan head screw (4-40x0.25 — black) that attach the Power Interposer Assembly to the side of the
chassis.
2. Remove the pan head screw (4-40x0.25 — Stainless steel) that attach the Power Interposer Assembly to the
side of the side support plate.
3. Gently pull the Power Interposer Assembly away from the unit.
