R5905948 /12 Event Master Devices 477

Image 15-56

How to install Power Interposer Assembly

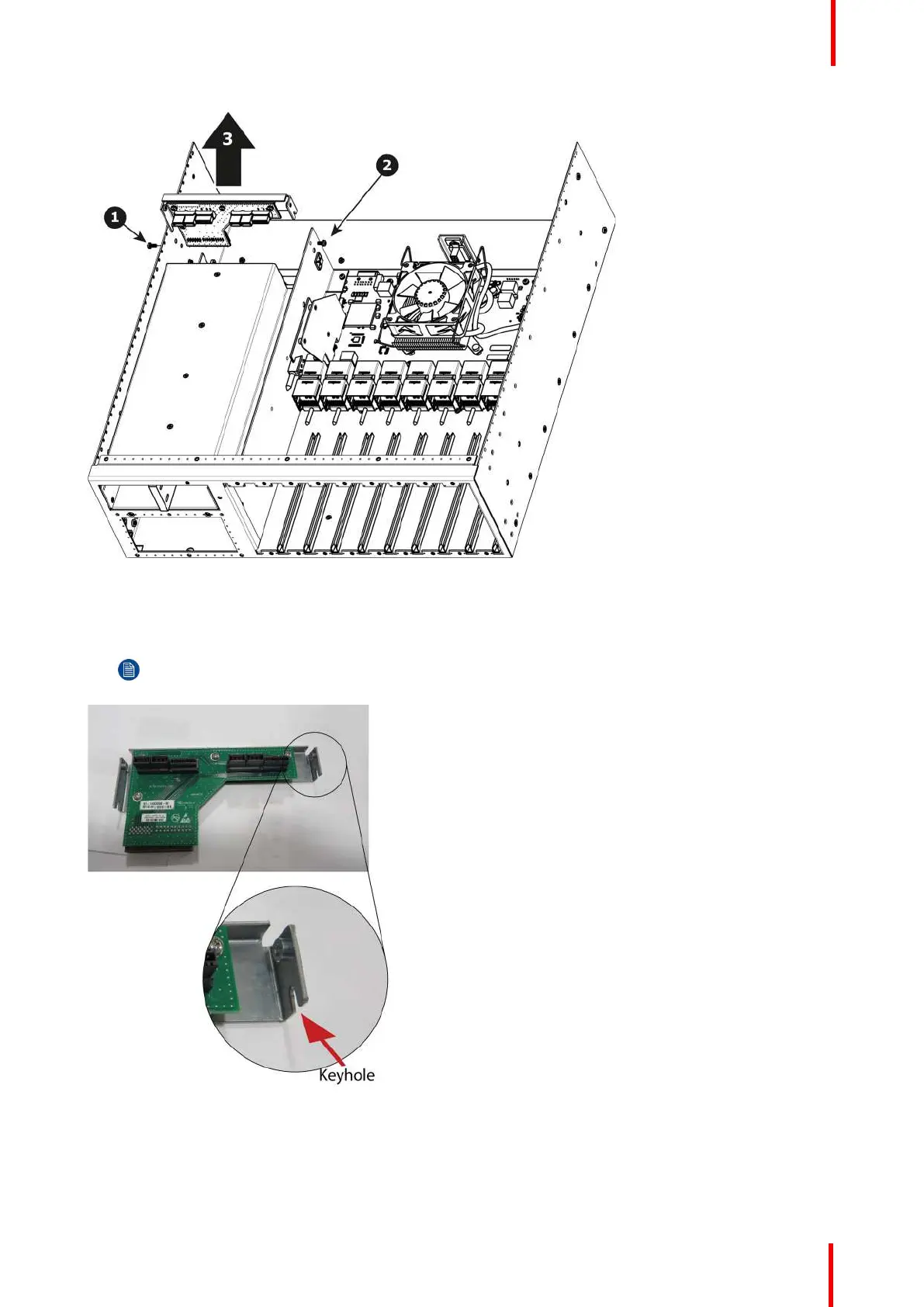

1. Install the Power Interposer Assembly and guide onto keyhole features in the sheet metal.

Note: Push the Power Interposer Assembly completely inside the connector onto the motherboard.

Apply a little pressure until it is fully inserted.

Image 15-57

2. Install the two screws.

S3 Maintenance
