Barco Event Master E2 Series User Manual

R5905948 /12 Event Master Devices 551
MicroCross Pins
Pin
Signal
Pin
Signal
C1 Analog Red Video C4 Analog Horizontal Sync
C2 Analog Green Video C5 Analog Common Ground Return
C3 Analog Blue Video

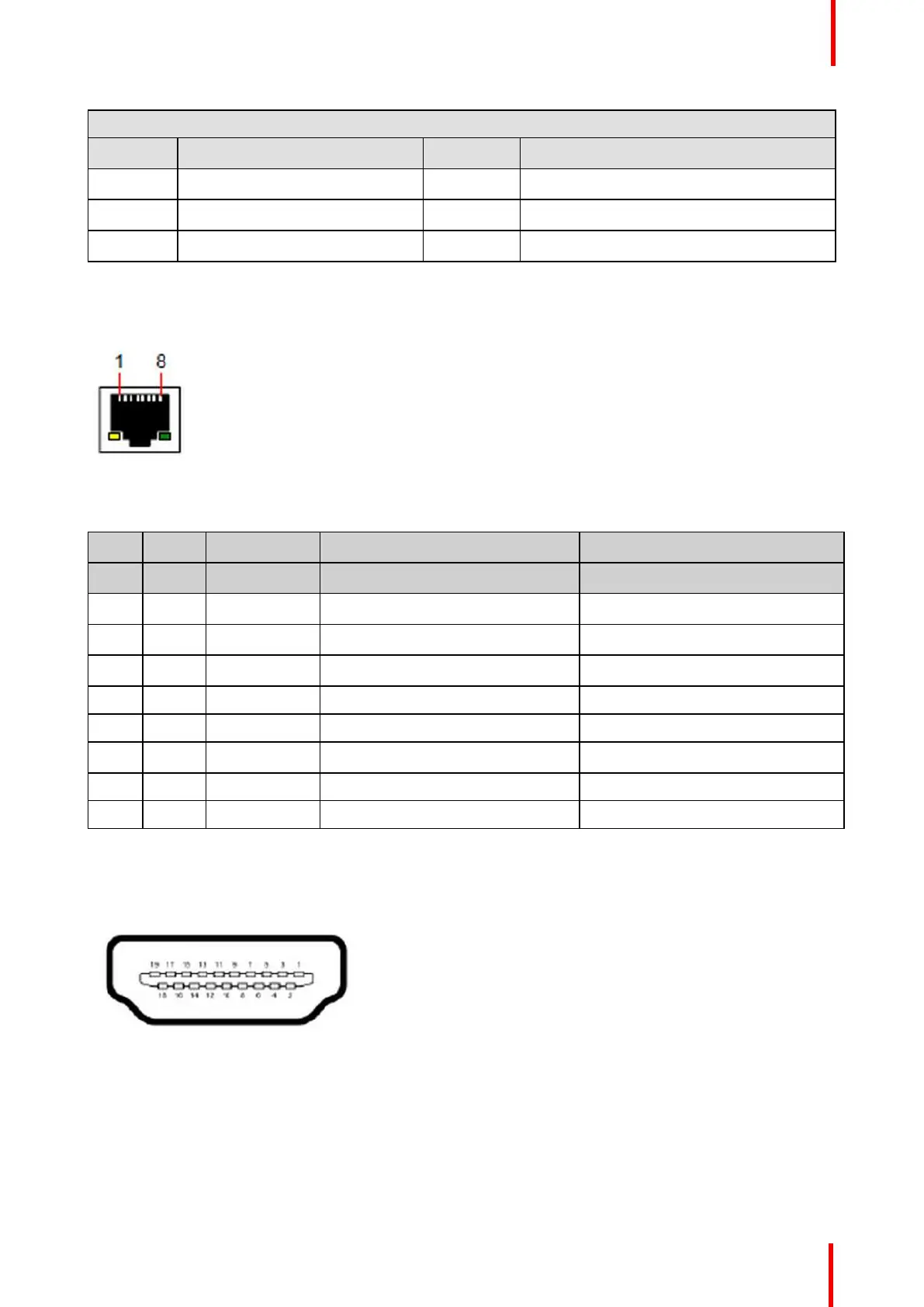

Ethernet connector pinouts
The following figure illustrates the Ethernet connector.
Image A-3: Ethernet connector
The following table lists Ethernet connector pinouts.
10/100 Base-T — RJ45 port 1000 Base-T — RJ45 port
Pin Pair Color
Description Description
1 3 white/green TXD+ TX0+
2 3 green TXD- TX0-
3 2 white/orange RXD+ RX0+
4 1 blue — TX1+
5 1 white/blue — TX1-
6 2 orange RXD- RX0-
7 4 white/brown — Rx1+
8 4 brown — RX1-
HDMIconnector pinouts
The following figure illustrates the HDMI connector.
Image A-4: HDMI connector
The following table lists HDMI connector pinouts.
