Barco Event Master E2 Series User Manual

R5905948 /12 Event Master Devices76

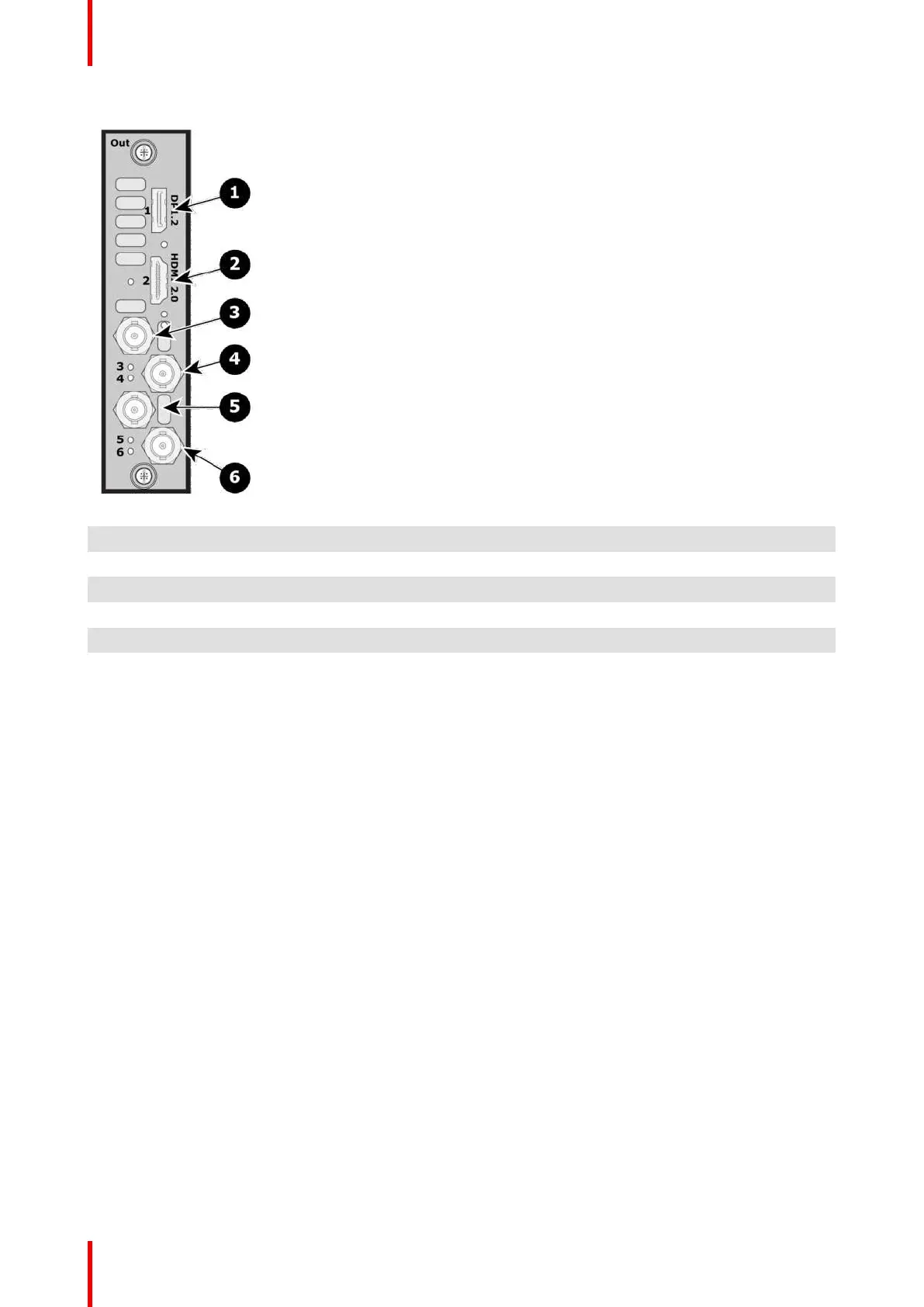

Image 4-18: Tri-Combo Output Card Rear Panel
1 DP connector
2 HDMI connector
3 BNC connector — SDI 1
4 BNC connector — SDI 2
5 BNC connector — SDI 3
6 BNC connector — SDI 4
Features
• Provides up to six (6) independent signals
• One channel of DisplayPort video on a full-size DisplayPort connector.
• One channel of HDMI video on a Type A connector.
• Process up to four independent SDI signals with support for SD, HD, 3G, 6G, and 12G in Single Link, Dual
Link (1.5G) or Quad Link (3G)
Specifications
DisplayPort
• DisplayPort per 1.2 specification
• Pixel clock up to 620 MHz
- Max pixel clock at 24 bits/pixel = 620 Mpix/sec
- Max pixel clock at 30 bits/pixel = 576 Mpix/sec
- Max pixel clock at 36 bits/pixel = 480 Mpix/sec
• Supported formats
- formats up to 4096x2160@60 (30 bits)
- 4K/UHD Supported:
◦ 3840x2,400/ 50/59.94/60 via 1x DP
◦ 4096x2,160/ 50/59.94/60 via 1x DP
◦ 3840x2,160/ 50/59.94/60 via 1x DP
• Supply up to 500 mA @ 3.3V on pin 20
- Allows the DP connector to power an external device
- Overcurrent protection provided by means of a re-settable fuse
• Multi-Stream Transport (MST)—not supported
• EDID version 1.3 compatible
Hardware orientation
