Using lists

106 Manpack Transceiver 2110 series Reference Manual

Selecting a list

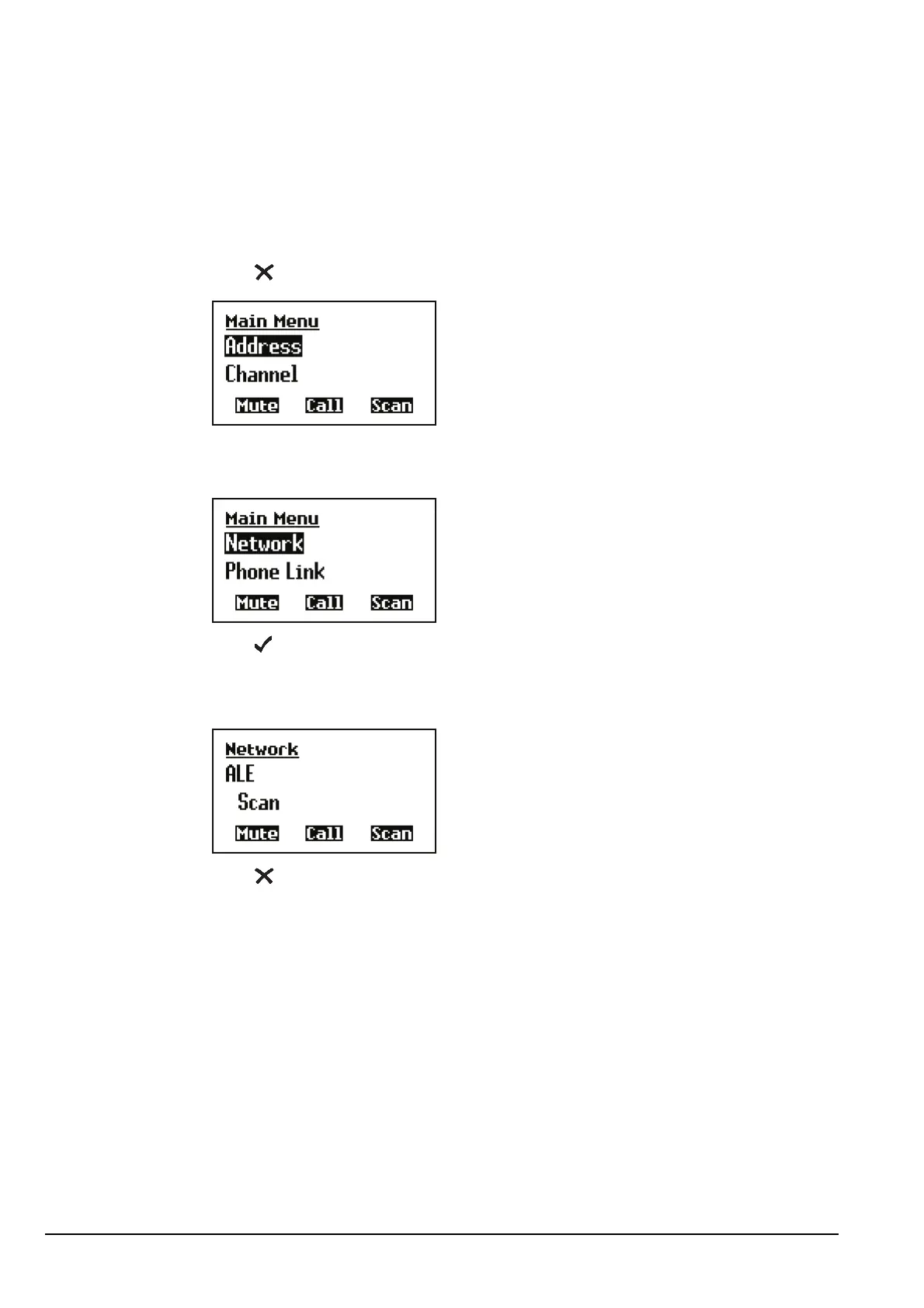

To select a list from the Main Menu:

1 Press until Main Menu is displayed.

1 Scroll through the Main Menu until the list you want to select is displayed on the

active (middle) line. For example:

1 Press .

The name of the list is displayed on the top line and the first entry is displayed on the

active line. You can now scroll through the entries.

1 Press until Main Menu is displayed.

NOTE

In the following example, you must log in as administrator to see the

Main Menu (see page 128, Logging in to admin level from user level).
