Codan 2110 series - Front Panel; Figure 54: Front Panel of the Transceiver (2110 Model Shown); Connectors

To Next Page

To Previous Page

Connectors

352 Manpack Transceiver 2110 series Reference Manual

Front panel

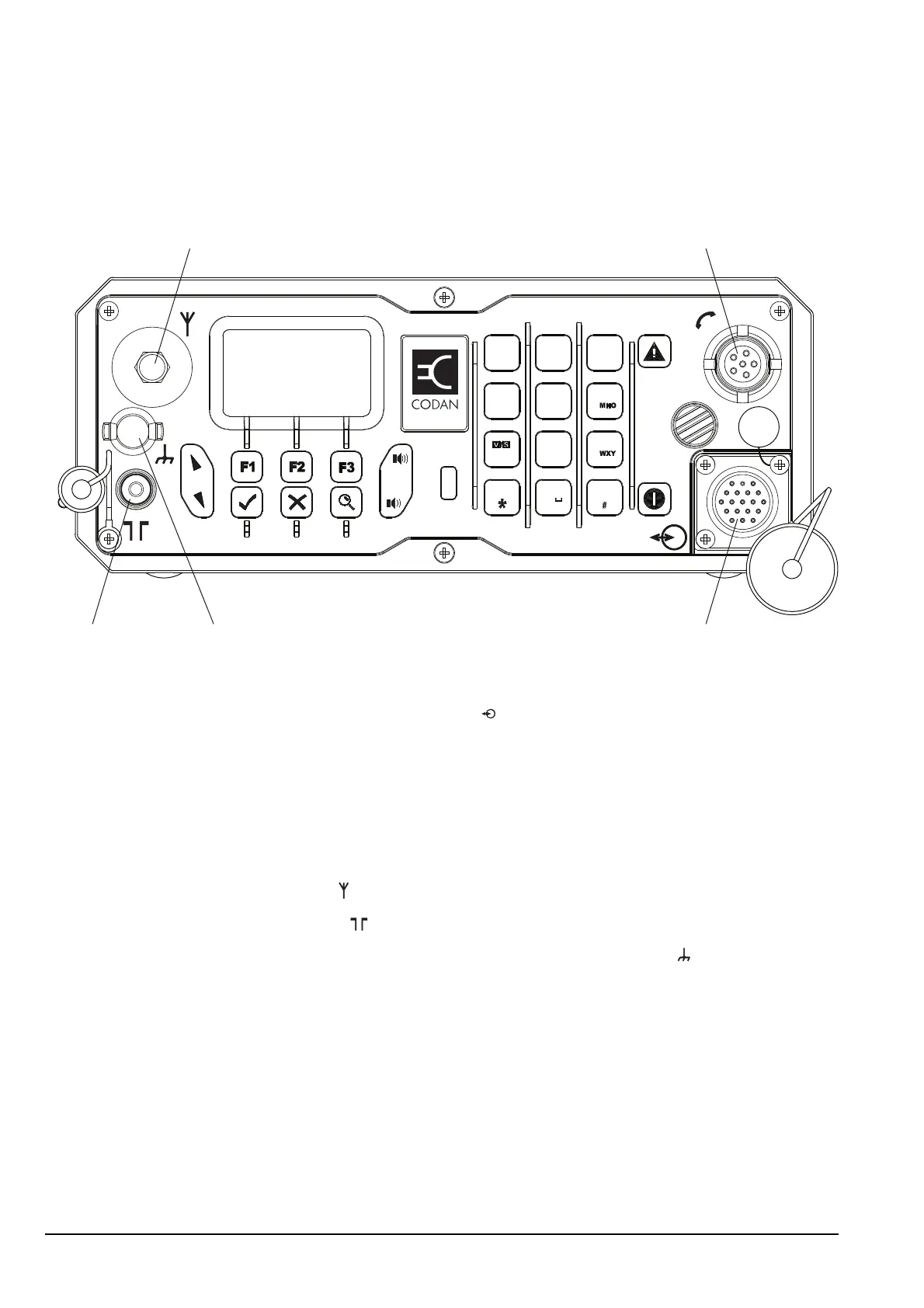

Figure 54: Front panel of the transceiver (2110 model shown)

HF antenna connectors

The antenna connectors comprise:

• an antenna stud ( )

• a 50  connector ( )

The HF antenna connectors are grounded using the earth terminal ( ).

NOTE

The 2110v Manpack Transceiver uses a 5-way connector in place of the

19-way GPIO connector ( ) on the 2110 Manpack Transceiver.

NOTE The GPS connector is optional for the 2110 Manpack Transceiver.

earth

terminal

19-way GPIO

connector

handset

connector

antenna

stud

connector

VIEW

TUNE

ABC

CLAR

MODE

DEF

FREE

GHI

JKL

PWR

PRS

TUV

SEC

GPS

CALL

LOGS

EASI

TALK

GPS
