Preparing the transceiver for use
Manpack Transceiver 2110 series Reference Manual 29

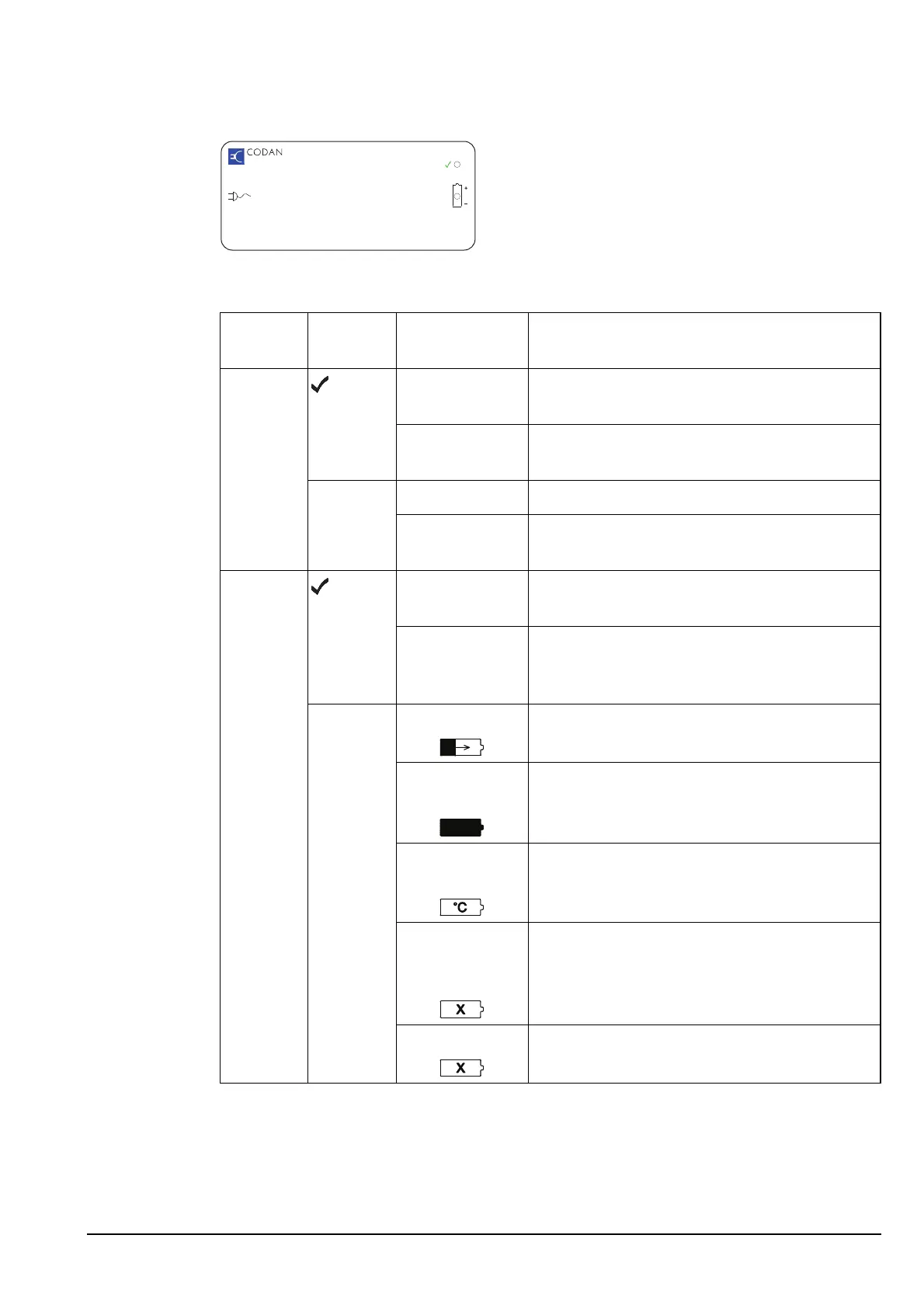

Figure 5: Typical front panel of a battery charger
Table 5: LED indications
Charger
type
LED Status Meaning
3121
3122
3522
Green, solid The charger has an appropriate power supply
connected.
Off The charger does not have an appropriate
power supply connected.
OUTPUT Orange, solid The charger is charging the battery pack.
Off The charger has finished charging the battery
pack.
3123
3523
Green, solid The charger has an appropriate power supply
connected.
Off The charger does not have an appropriate
power supply connected, or is not functioning
correctly.
OUTPUT Yellow, solid The charger is charging the battery pack.
Yellow, slow
flash
The charger has finished charging the battery
pack.
Yellow/red,
alternating flash
The battery pack has an overtemperature
condition.
Red, double
flash then long
pause
The battery pack has a faulty fuse.
Red, rapid flash The battery pack is unserviceable and cannot
be charged.
