Connectors

Manpack Transceiver 2110 series Reference Manual 359

Battery pack

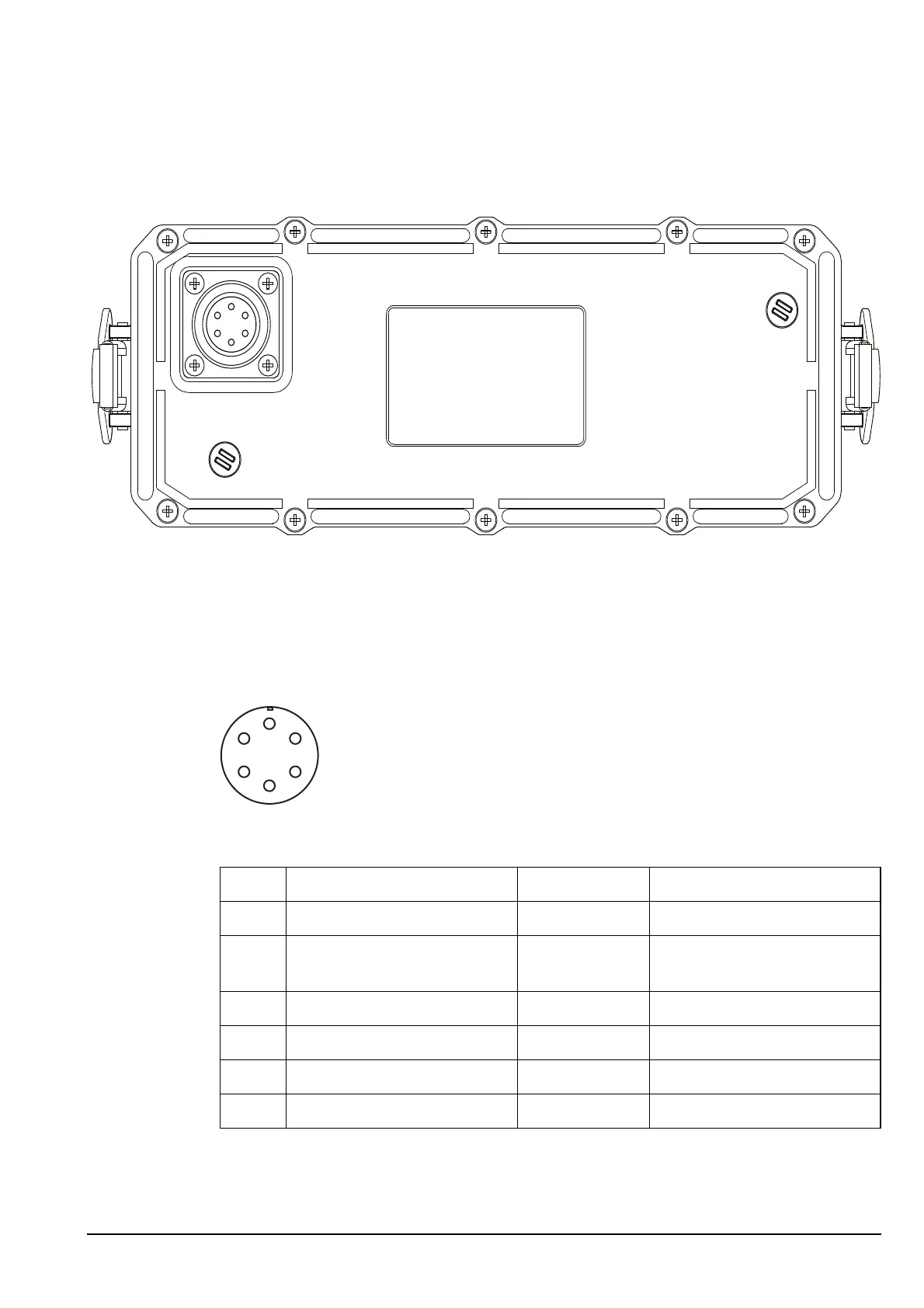

Figure 61: Connector panel of the battery pack

Pinouts of the battery connector on the battery pack

Figure 62: Front view of the battery connector on the battery pack

Table 48: Pinouts of the battery connector on the battery pack

Pin no. Function Input/output Signal level

A Ground 0 V DC

B Charge in Input 15.5 V DC @ 3 A maximum,

current limiting

C Battery+ Output 12 V DC nominal

D SMB data Input/output 3.3 V DC logic

E SMB clock Input/output 3.3 V DC logic

FSpare
