Preparing the transceiver for use
34 Manpack Transceiver 2110 series Reference Manual
Inserting the transceiver into a backpack
All backpacks come with adjustable straps that hold the transceiver firmly in position.
Some backpacks have an internal mounting frame.
To insert the transceiver into a backpack that has an internal mounting frame:
1 Open the rear of the backpack to expose the mounting frame.
1 Push the transceiver between the foam mounts on the frame (see Figure 7).

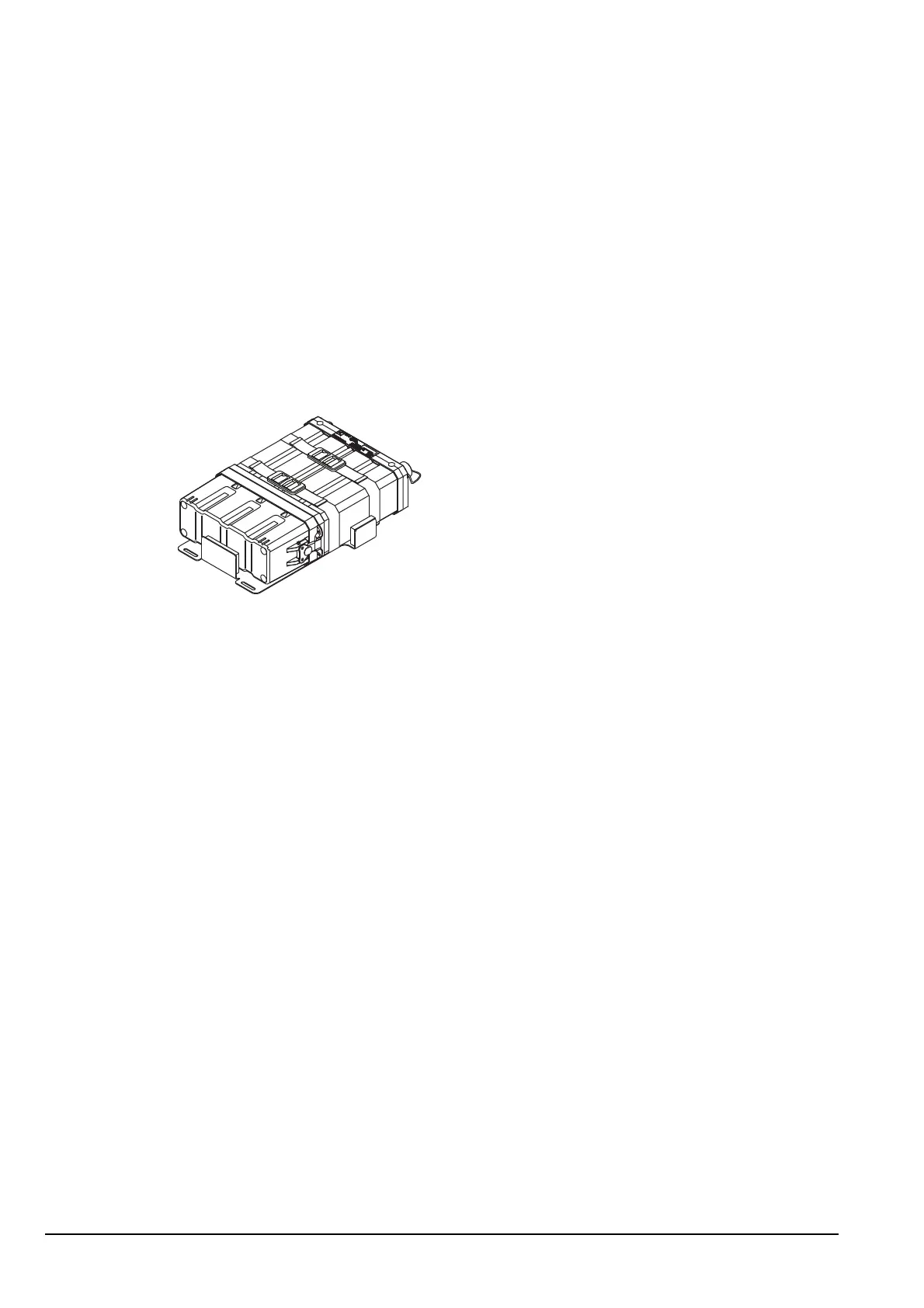

Figure 7: Transceiver in backpack with internal frame
1 Secure the transceiver with the straps.
1 Close the rear of the backpack.
To insert the transceiver into the soft backpack:
1 Slide the transceiver into the backpack.
1 Secure the transceiver with the adjustable strap on the outside of the backpack.
