Mobile station
A mobile station typically consists of a transceiver, a 12 V DC power supply (battery),
an antenna, control and accessory devices, ancillary equipment, and appropriate
connecting cables. The transceiver may be powered by its own battery pack (see
Figure 8), or via the vehicle’s battery (see Figure 9). The antenna is connected to the
transceiver by coaxial cable. An automatic tuning antenna also requires a control cable
connected to the transceiver.
When space is limited in a mobile situation, the transceiver may be located in the boot or
behind/under a seat.

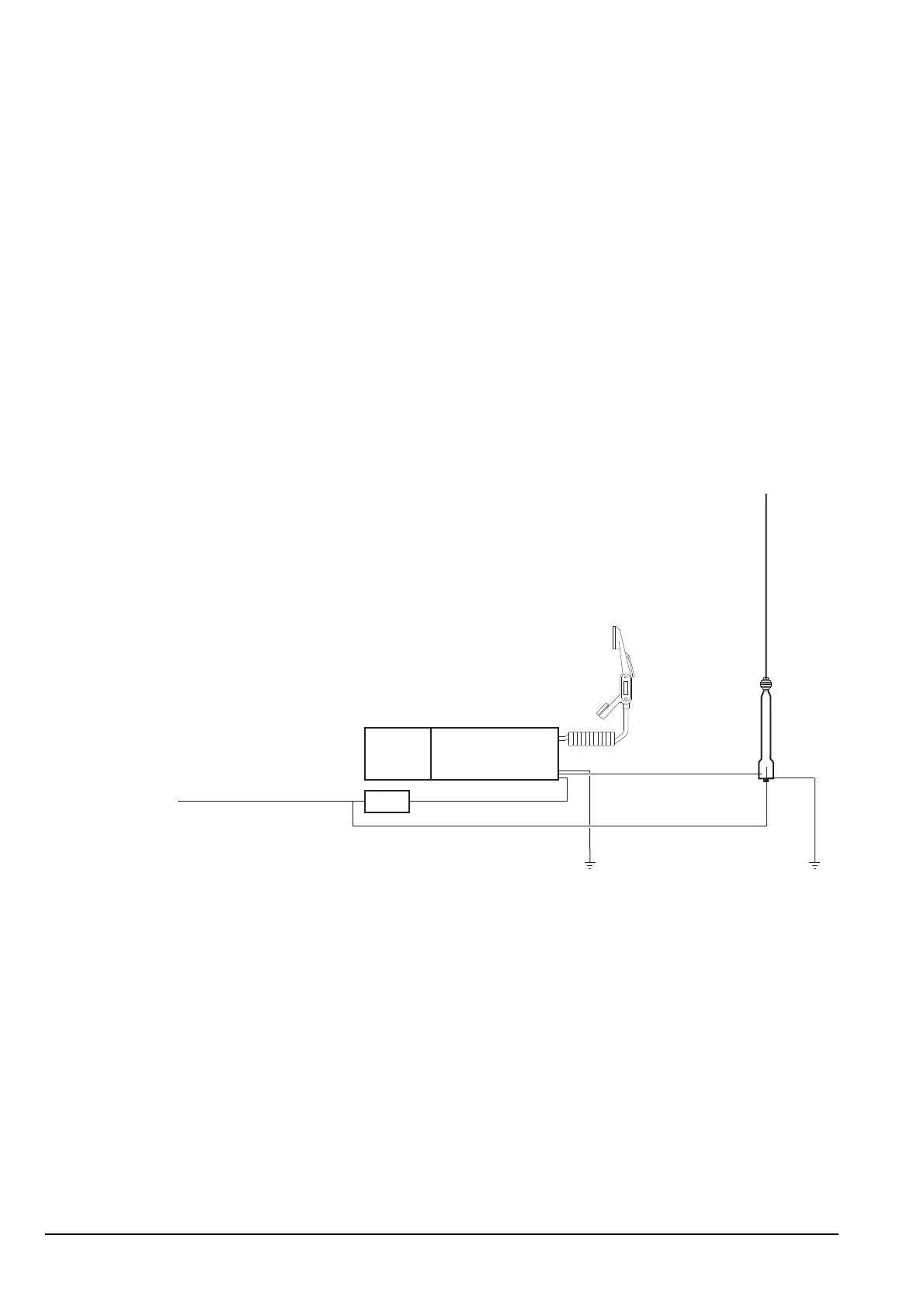

Figure 8: A 2110 mobile station using its own battery pack
NOTE
The 2110v Manpack Transceiver can be installed in a vehicle, however it
cannot be used with a 9350 Automatic Tuning Whip Antenna.
transceiver
automatic tuning antenna
(2110 only)
groundground
coaxial cable
to accessory devices, when
using optional interface adaptor
(2110 only)
control cable
battery
pack
