AES-256 digital voice encryptor option

Manpack Transceiver 2110 series Reference Manual 295

Using the AES-256 digital voice encryptor

To use the AES-256 digital voice encryptor:

1 Start a call (see page 210, Calling methods).

1 Press SEC.

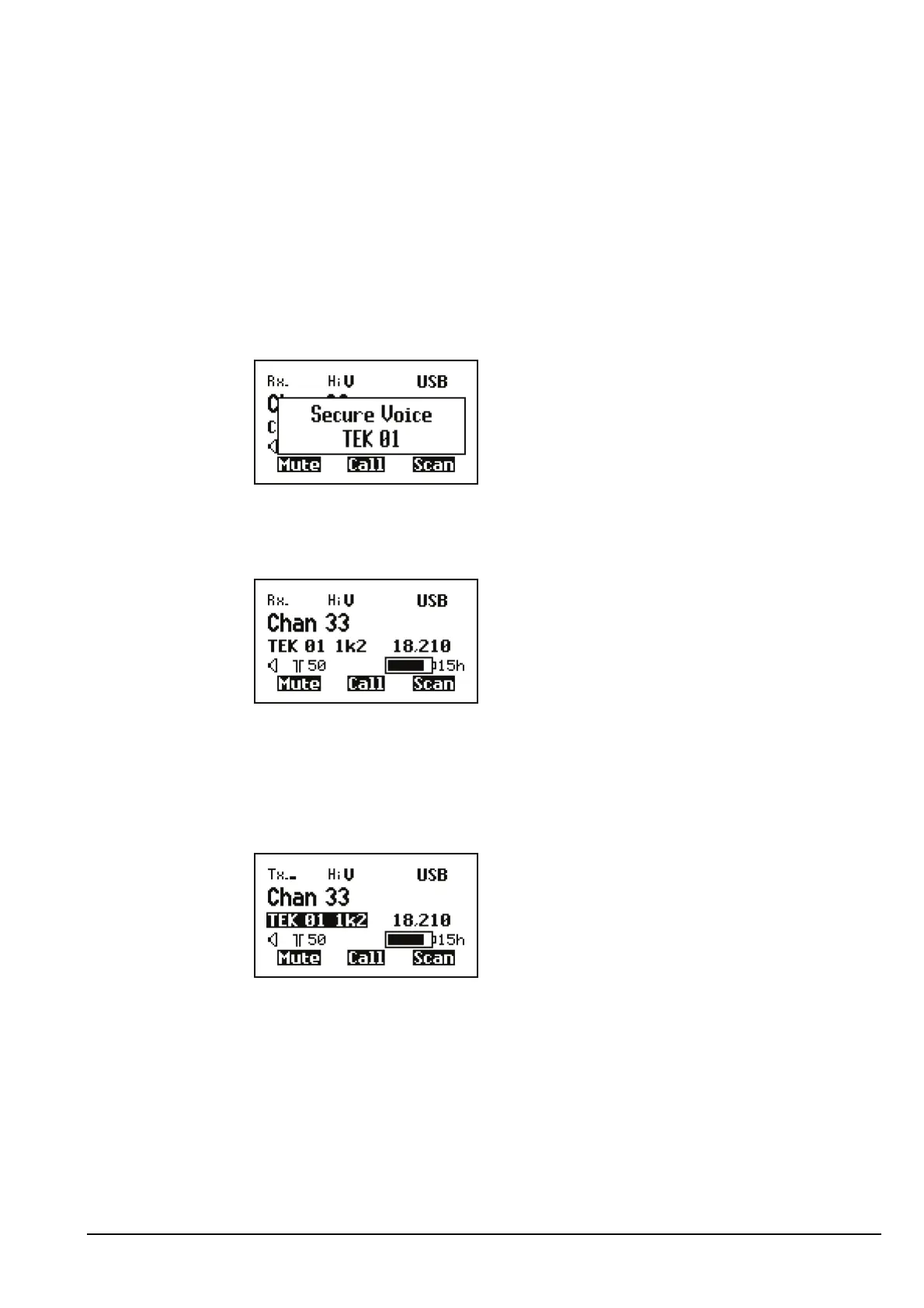

The transceiver responds with two high short beeps, and displays Secure Voice

with the secure index. For example:

If you are in the Channel List, the active AES-256 digital voice encryptor is

indicated by the text TEK <index> <1k2|2k4> at the left of the channel screen. For

example:

When a digitally encrypted signal is transmitted or received, the secure index and

the data rate are highlighted.

NOTE

If you are using a user-defined prefix for the AES secure key, this is

displayed instead of TEK.
