Operating the transceiver
Manpack Transceiver 2110 series Reference Manual 69
If the transmit and receive frequencies are the same, the frequency is only displayed in
the receive frequency position on the right side of the screen, and the Rx indicator arrow
is not used. The Rx/Tx indicator shows whether the transceiver is receiving or
transmitting.
Your transceiver has the option of selecting high or low power by pressing Tx PWR.
When low power is selected, Lo is displayed to the right of the signal strength indicator
(see Figure 12). When high power is selected, Hi is displayed in this location.
While a call is being established, the transceiver shows that calling activity is in progress
by flashing CALL in place of the scan indicator (see Figure 13). During a call, these
indicators are replaced with an icon showing the type of call being sent or received (see
Figure 12). These call type icons are listed in Table 26 on page 186 and Table 27 on
page 194.
When the transceiver is scanning, the channel screen is replaced by the scanning screen
(see Figure 13).

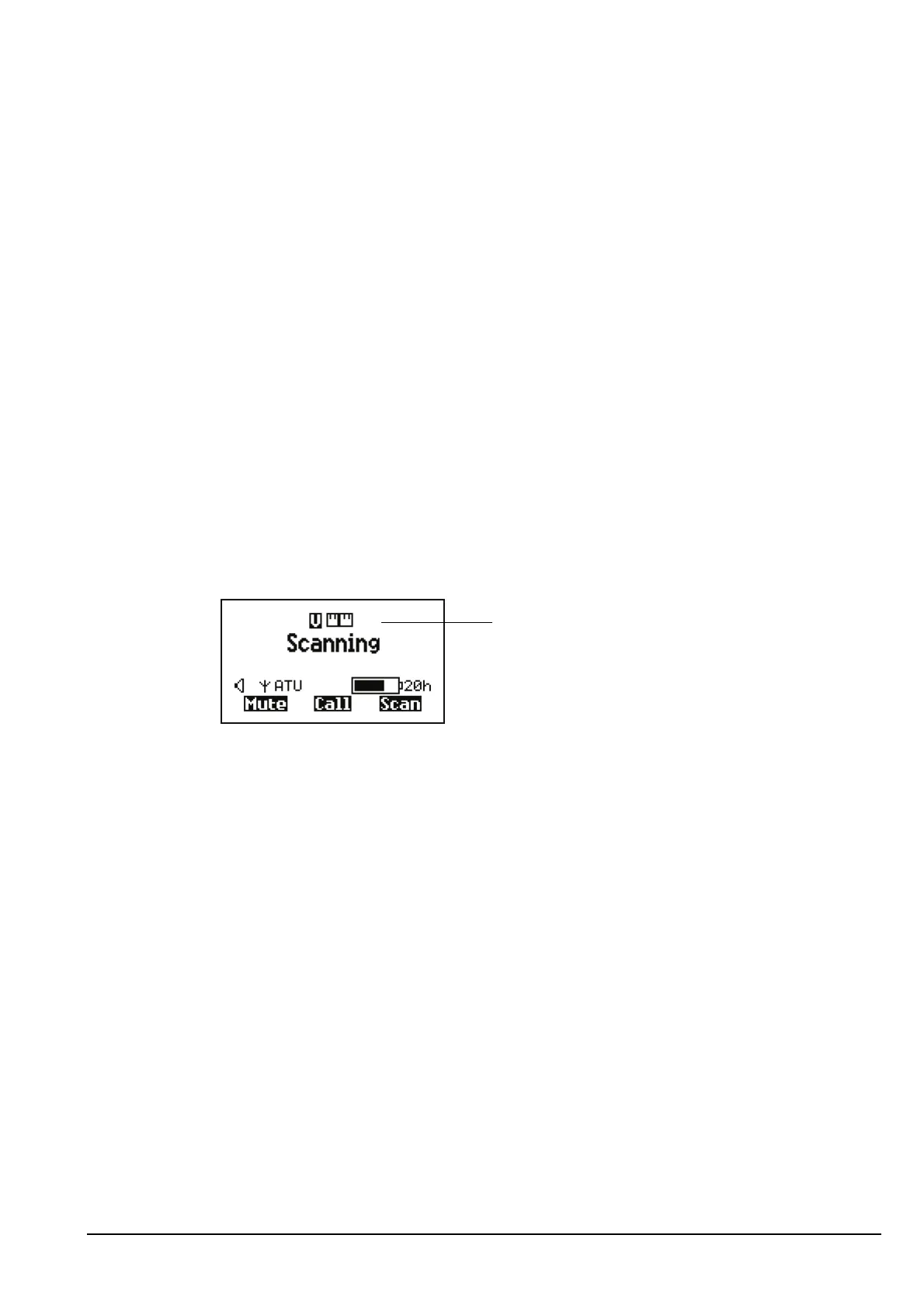

Figure 13: The scanning screen
NOTE
If you have a Codan 3160 Power Amplifier connected, PA is also
included in the power options.
