180 Manpack Transceiver 2110 series Reference Manual

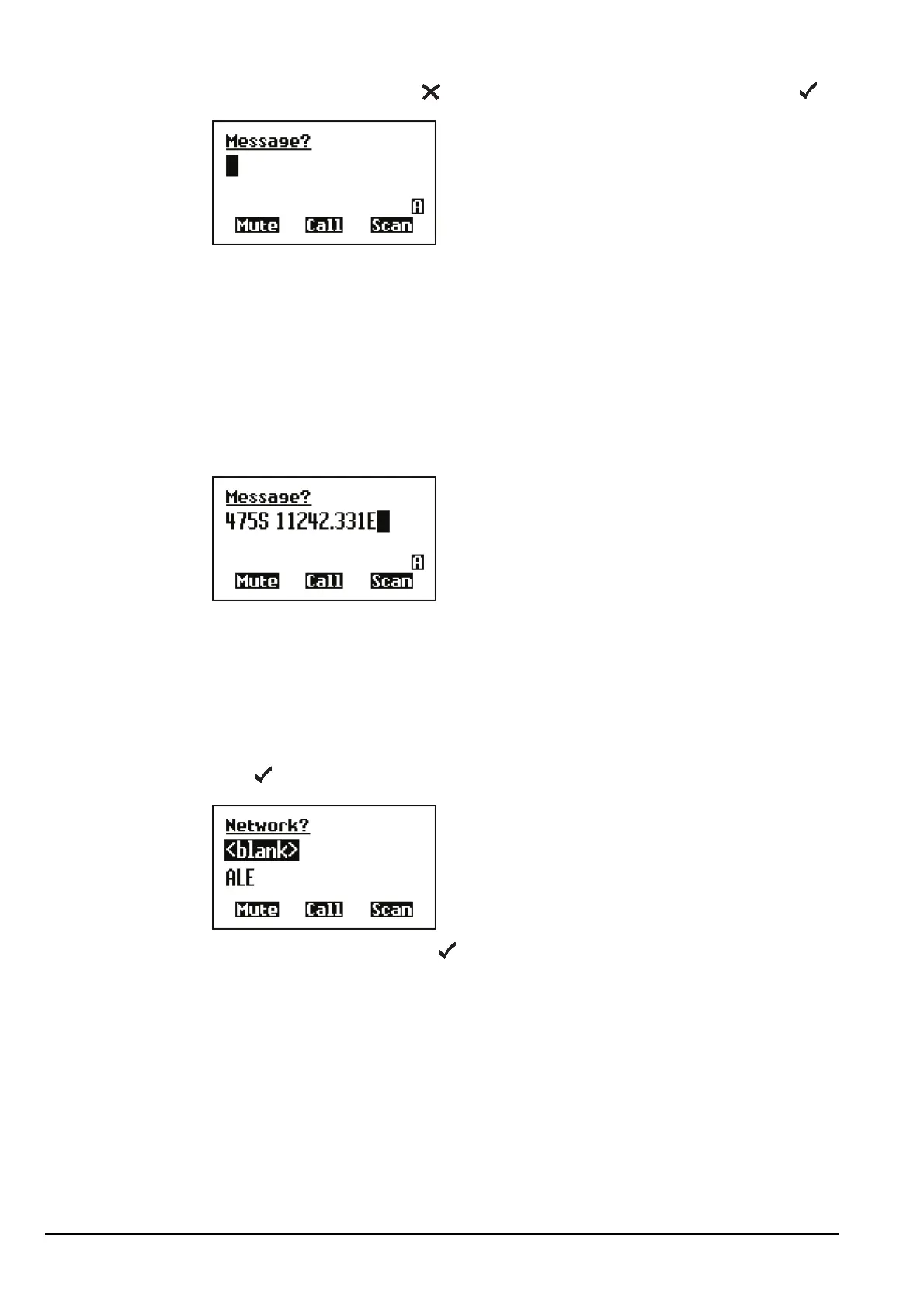

1 Scroll to Message?, press repeatedly to delete the call address, then press .

1 Use one of the following example formats to enter your relevant GPS information.

For example, enter 2418.475S 11242.331E.

1 Press .

1 Scroll to <blank>, then press .

The entry is created and the List Manager remains open.

1 Switch the transceiver off then on again to activate the new information in the

My GPS entry in the Address List.

Latitude

(mandatory)

Longitude

(mandatory)

Altitude, UTC, and type of

reading (optional)

2418.475 S 11242.331 E +12.5M 041725 (M)

2418.475S 11242.331E

NOTE For help with entering text see page 72, Entering and editing text.

NOTE

The space between the latitude/longitude number and the indicator is

optional.

NOTE

For more information on the type of reading see Table 33 on

page 259.
