AES-256 digital voice encryptor option

300 Manpack Transceiver 2110 series Reference Manual

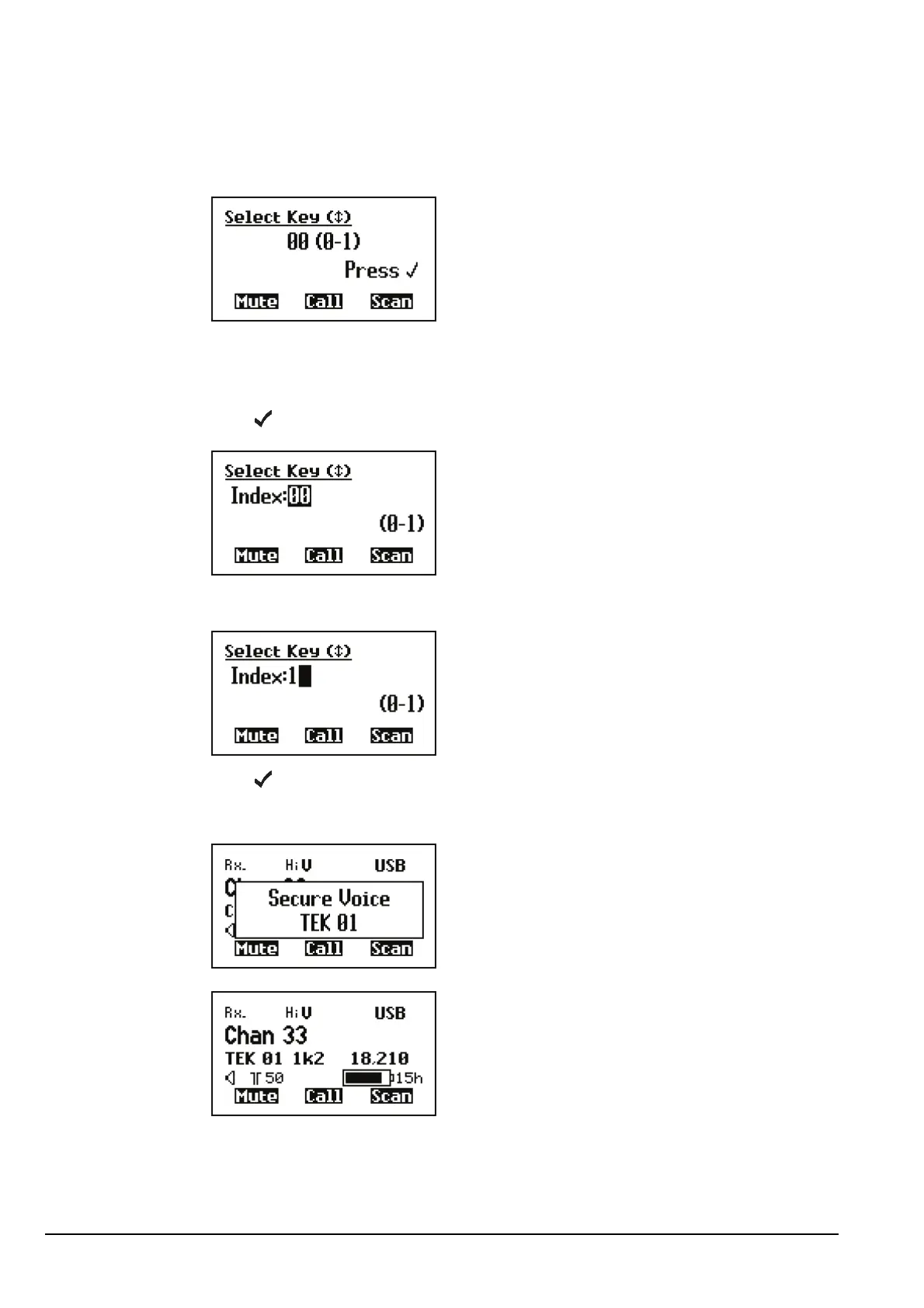

Switching between secure indexes

To switch between secure indexes while using the AES-256 digital voice encryptor:

1 Hold SEC, then scroll to Select Key.

1 Press .

1 Enter, or scroll to, the number of the secure index that you want to use.

1 Press .

The transceiver goes secure using the key in the secure index that you selected.

NOTE

The currently selected secure index is shown, followed in brackets by

the range of secure indexes that are programmed with a secure key.
