AES-256 digital data encryptor option

Manpack Transceiver 2110 series Reference Manual 321

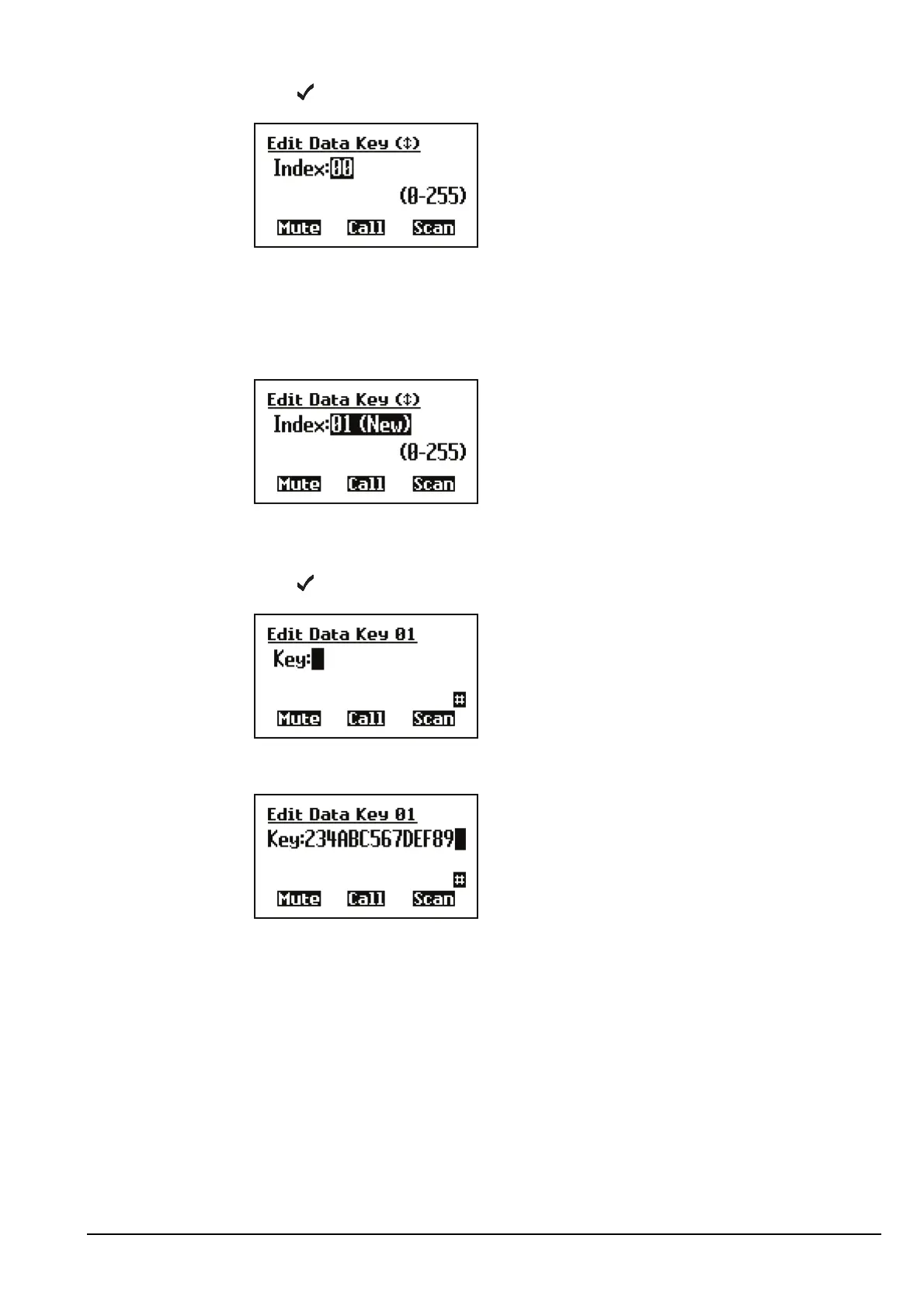

1 Press .

1 Scroll to the index that you want to program with a secure key, for example

Index:01 (New).

1 Press .

1 Enter the secure key for the secure index shown.

NOTE The currently selected secure index is highlighted.

NOTE If the index is empty it has (New) after the number of the index.

NOTE

The AES secure key may contain up to 64 hexadecimal digits. The

transceiver automatically places zeros in keys that are shorter than

this.
