section
L 8
391098/1098S - M.Y. 2007 - edition 00
Fuel / Exhaust System

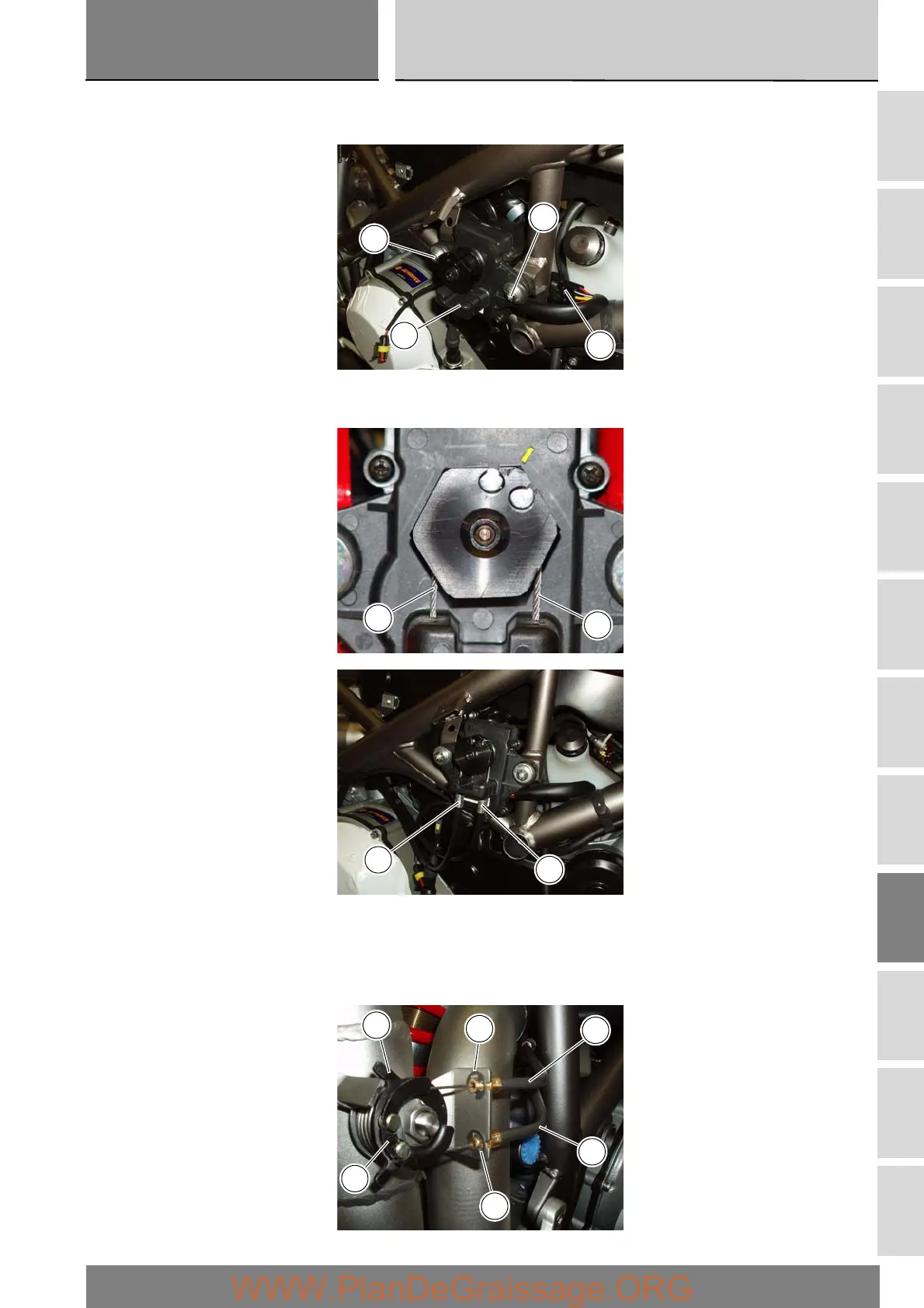

Locate the motor (31) on the frame and tighten the bolts (33) to the specified torque (Sect. C 3, Frame torque settings).
Connect the motor to the wiring (C).
If the cables (20) have been removed from the motor, position them so that the top corner of the pulley race (located between
the two cable end fittings) is aligned with the notch.
Position the cables (20) on the exhaust valve (B).
The travel stop (E) of the exhaust valve pulley must be seated aganst the blade of the exhaust valve (B).
Secure the cables with two circlips (A).
Refer to the figures at the end of the chapter for correct routing of the cables (20).
The cables must have no free play.
33
C
31
33
20
20
20
20
20
A
20
A
B
E
