48 1098/1098S - M.Y. 2007 - edition 00
Electric system
Refitting the alternator

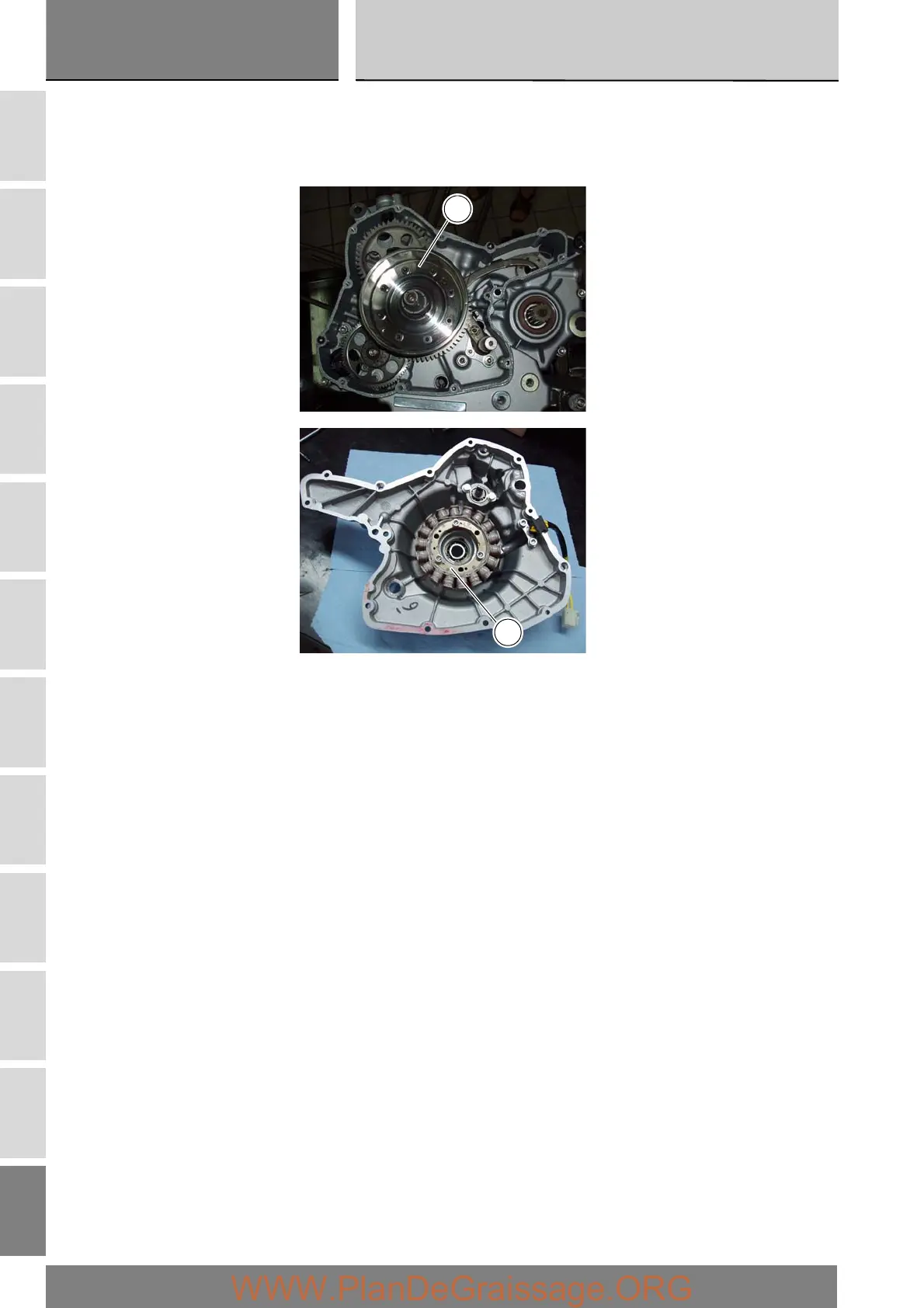

Fit the rotor (B), the stator (A) and the left-hand crankcase cover.
Reconnect the alternator wires to the electrical system (refer to plate in chapter “Routing of wiring on frame” Sect. P 1).
Refit the left-hand side fairing (Sect. E 2).
