FOR-A FA-9520 - Page 265

265
 4:3 to 4:3 conversion
Input AFD
(WSS)
Input AFD
(VI, S2016)

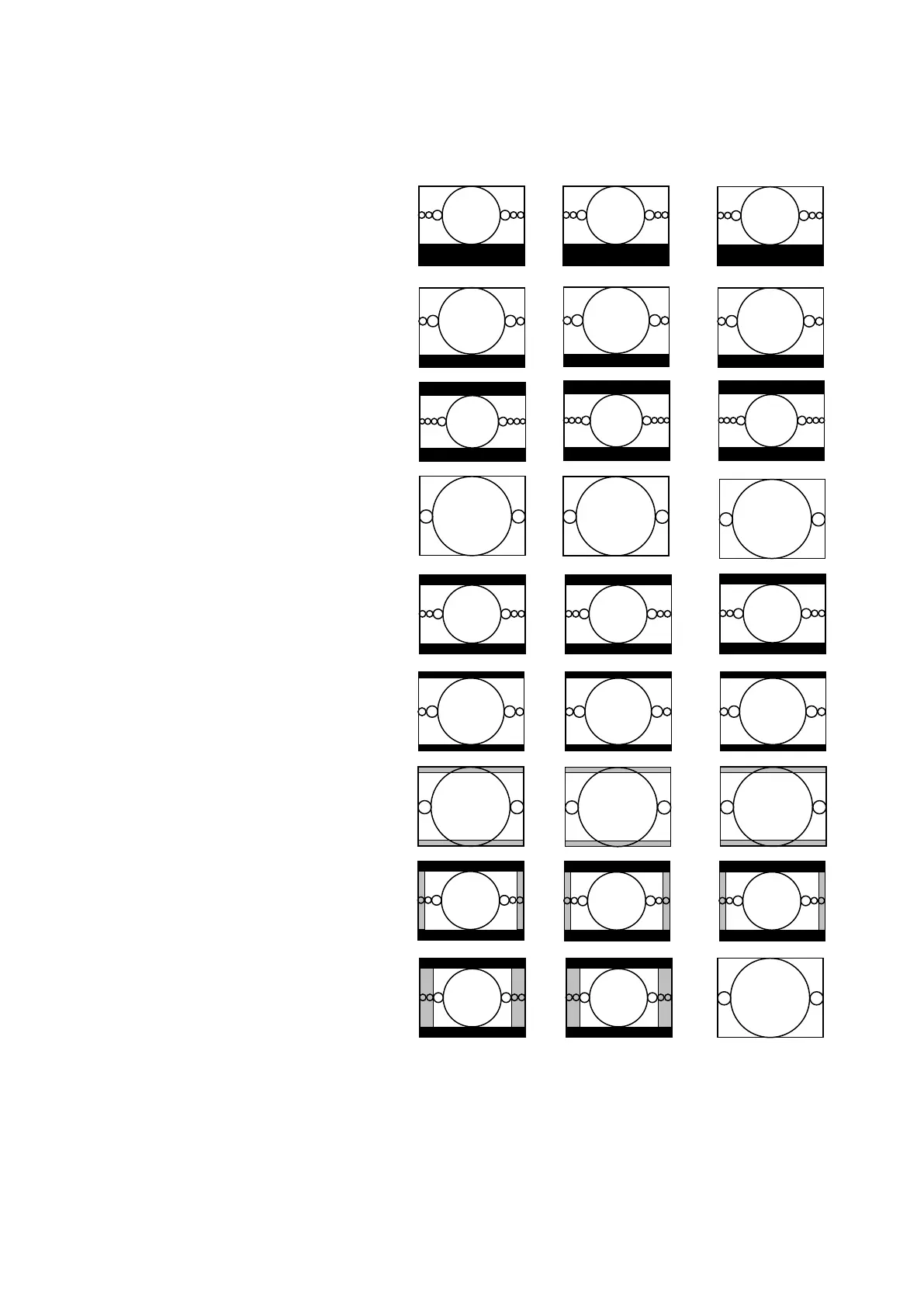

Illustration in a 4:3
coded frame
AFD (4:3)
conversion
AFD-ALT (4:3)
conversion
BOX 16:9 TOP
4:3 L 16:9 T
BOX 14:9 TOP
4:3 L 14:9 T
BOX 16:9 CTR
4:3 L> 16:9
F 4:3
4:3 F 4:3
BOX 16:9 CTR
4:3L16:9PRTD
BOX 14:9 CTR
4:3 L 14:9
F 14:9 CTR
PRTD
4:3 F ALT14:9
None
4:3 L ALT 14:9
None
4:3 L ALT 4:3
