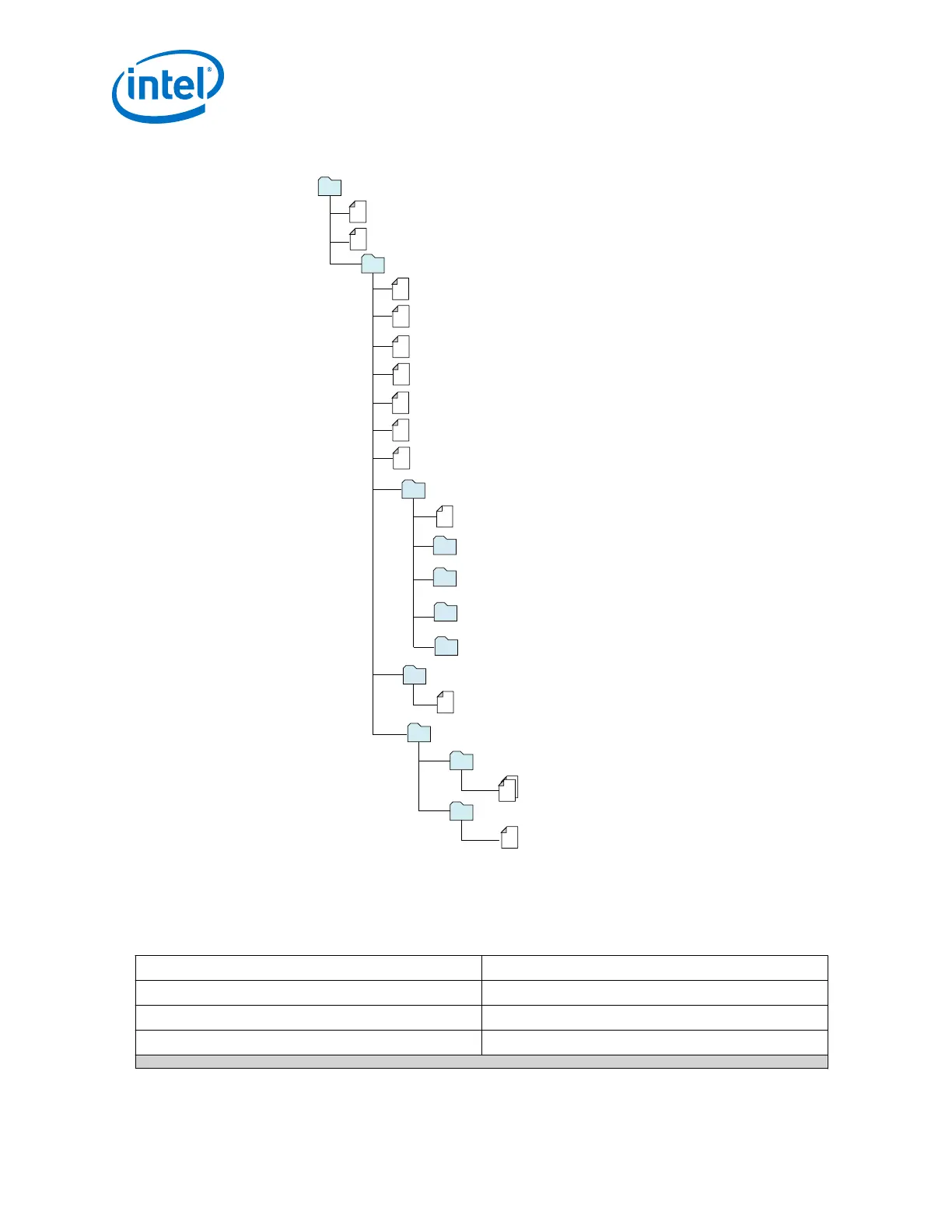

Figure 26. Directory Structure for Generated Files
<Project Directory>
<your_ip_or_system_name>.qsys - Top-level IP variation file
<your_ip_or_system_name>.sopcinfo
<your_ip_name> - IP core variation files
<your_ip_name>.cmp - VHDL component declaration file
<your_ip_name>_bb - Verilog HDL black-box EDA synthesis file
<your_ip_name>_inst - IP instantiation template file
<your_ip_name>.ppf - XML I/O pin information file
<your_ip_name>.qip - Lists IP synthesis files
<your_ip_name>.sip - Lists files for simulation
<your_ip_name>.v or .vhd - Greybox timing netlist
synth - IP synthesis files
<your_ip_name>.v or .vhd - Top-level IP synthesis file
sim - IP simulation files
<your_ip_name>.v or .vhd - Top-level simulation file
aldec- Simulator setup scripts
<IP subcore> - IP subcore files
<HDL files>
sim
cadence - Simulator setup scripts
mentor - Simulator setup scripts
synopsys - Simulator setup scripts
<HDL files>
synth
The following table describes the directories and the most important files for the
parameterized Transceiver Native PHY IP core and the simulation environment. These
files are in clear text.
Table 75. Transceiver Native PHY Files and Directories
File Name Description
<project_dir> The top-level project directory.
<your_ip_name> .v or .vhd The top-level design file.
<your_ip_name> .qip A list of all files necessary for Quartus Prime compilation.
continued...
2. Implementing Protocols in Arria 10 Transceivers
UG-01143 | 2018.06.15
Intel
®
Arria
®
10 Transceiver PHY User Guide
92

Intel Arria 10 Specifications

General

Transceiver Data Rate	Up to 17.4 Gbps
Transceiver Protocols Supported	CPRI, JESD204B
Transceiver Power Consumption	Varies depending on configuration and data rate. Refer to Intel Arria 10 device power estimation tools.
Transceiver Features	Clock data recovery
Power Consumption per Channel	Varies depending on data rate and equalization settings. Refer to Intel Arria 10 device power estimation tools.
Transceiver Type	FPGA integrated transceiver
Operating Temperature Range	-40°C to 100°C (Industrial)
Number of Transceiver Channels	up to 96 full-duplex
