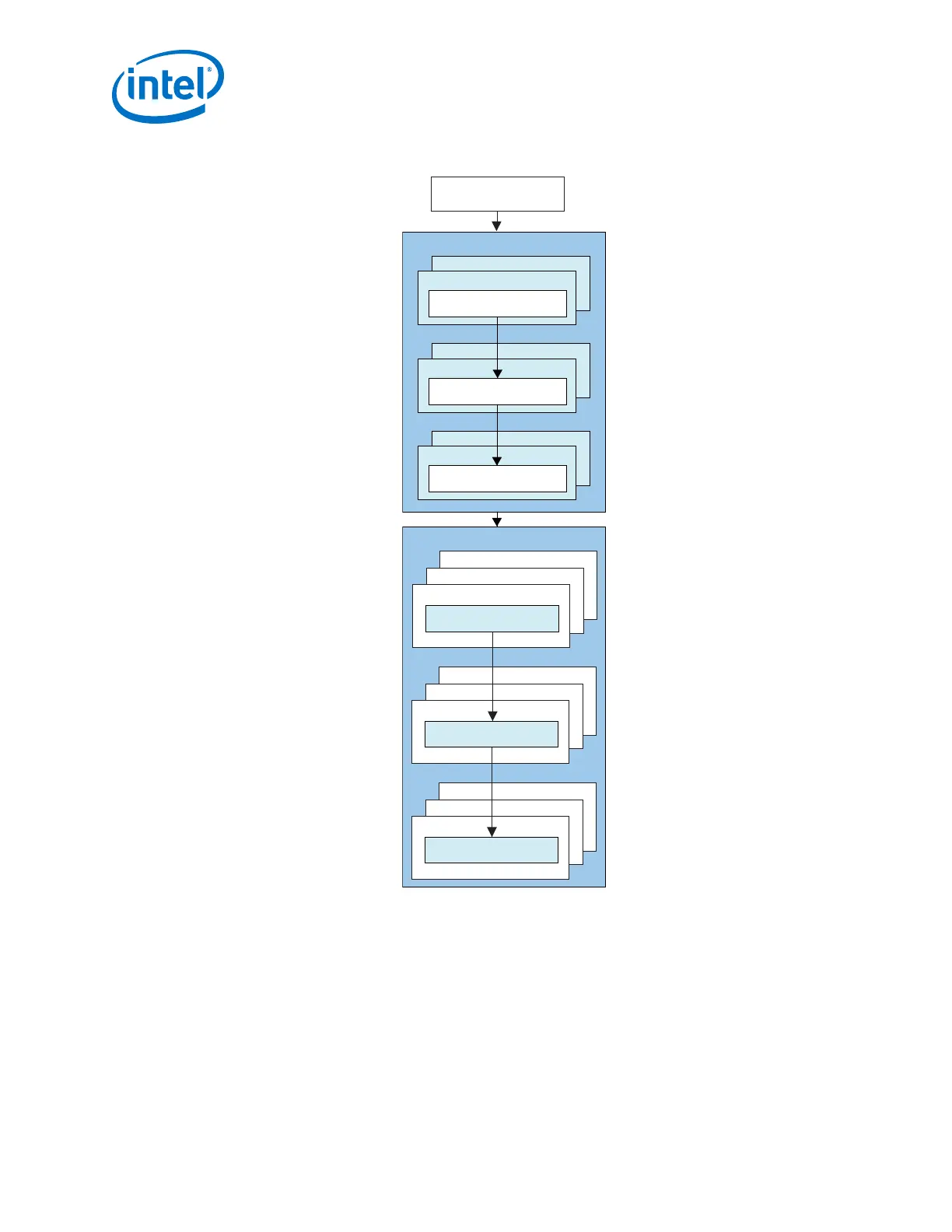

Figure 283. Power-up Calibration Sequence for PCIe Hard IP and non-PCIe Channels
Bank 1
Bank 2
Bank ...
ATX PLL Calibration
PCIe Channels Calibration
Non-PCIe Channels Calibration
Vreg Calibration for All
Transceiver Banks and Channels
Bank 1
Bank 2
Bank ...
fPLL Calibration
Bank 1
Bank 2
Bank ...
RX PMA and TX PMA Calibration
(1)
After All ATX PLLs Calibrated
After All fPLLs Calibrated
Hard IP 0
Hard IP 1
ATX PLL Calibration
Hard IP 0
Hard IP 1
fPLL Calibration
Hard IP 0
Hard IP 1
RX PMA and TX PMA Calibration
(1)
After All ATX PLL Calibrated
After All fPLL Calibrated
(1) CDR and CMU PLL calibration are part of RX PMA calibration.
7.4. User Recalibration
User Recalibration is needed if below conditions are met:
7. Calibration
UG-01143 | 2018.06.15
Intel
®
Arria
®
10 Transceiver PHY User Guide
576

Intel Arria 10 Specifications

General

Transceiver Data Rate	Up to 17.4 Gbps
Transceiver Protocols Supported	CPRI, JESD204B
Transceiver Power Consumption	Varies depending on configuration and data rate. Refer to Intel Arria 10 device power estimation tools.
Transceiver Features	Clock data recovery
Power Consumption per Channel	Varies depending on data rate and equalization settings. Refer to Intel Arria 10 device power estimation tools.
Transceiver Type	FPGA integrated transceiver
Operating Temperature Range	-40°C to 100°C (Industrial)
Number of Transceiver Channels	up to 96 full-duplex
