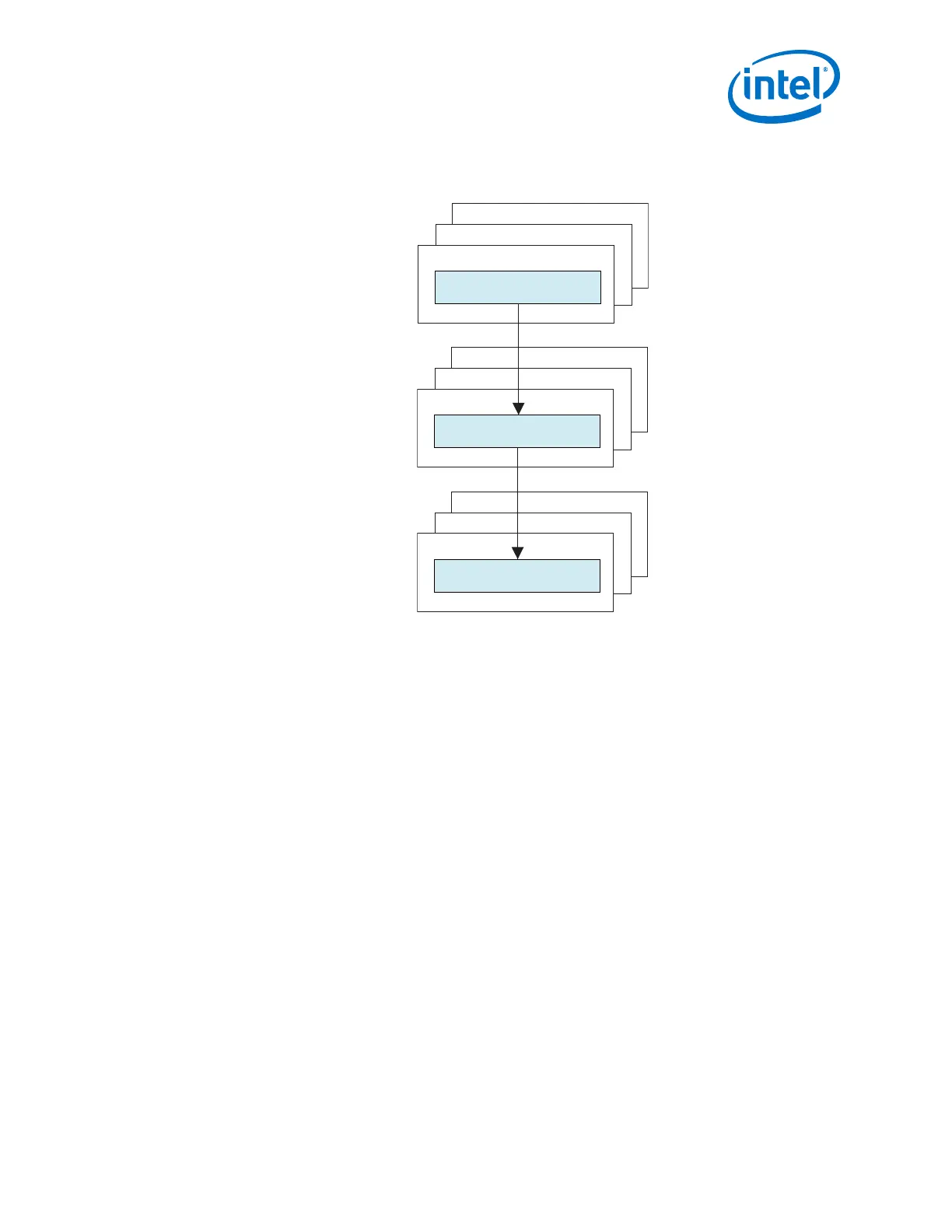

Figure 282. Power-up Calibration Sequence for Non-PCIe Hard IP (HIP) Channels
For applications not using PCIe Hard IP, the power-up calibration starts from Vreg calibration for all banks and
channels. Then, PreSICE calibration is done in the sequence as shown in the following figure.
Bank 1
Bank 2
Bank ...
ATX PLL Calibration
Bank 1
Bank 2
Bank ...
fPLL Calibration
Bank 1
Bank 2
Bank ...
RX PMA and TX PMA Calibration
(1)
After All ATX PLLs Calibrated
After All fPLLs Calibrated
(1) CDR and CMU PLL calibration are part of RX
PMA calibration.
For applications using both PCIe Hard IP and non-PCIe channels, the power-up
calibration sequence is:
1. Vreg calibration for all banks and channels.
2. Wait for PCIe reference clock toggle.
3. PCIe Hard IP 0 calibration (if used).
4. PCIe Hard IP 1 calibration (if used).
5. Calibration of all non-PCIe Hard IP channels in calibration sequence.
7. Calibration
UG-01143 | 2018.06.15
Intel
®
Arria
®
10 Transceiver PHY User Guide
575

Intel Arria 10 Specifications

General

Transceiver Data Rate	Up to 17.4 Gbps
Transceiver Protocols Supported	CPRI, JESD204B
Transceiver Power Consumption	Varies depending on configuration and data rate. Refer to Intel Arria 10 device power estimation tools.
Transceiver Features	Clock data recovery
Power Consumption per Channel	Varies depending on data rate and equalization settings. Refer to Intel Arria 10 device power estimation tools.
Transceiver Type	FPGA integrated transceiver
Operating Temperature Range	-40°C to 100°C (Industrial)
Number of Transceiver Channels	up to 96 full-duplex
