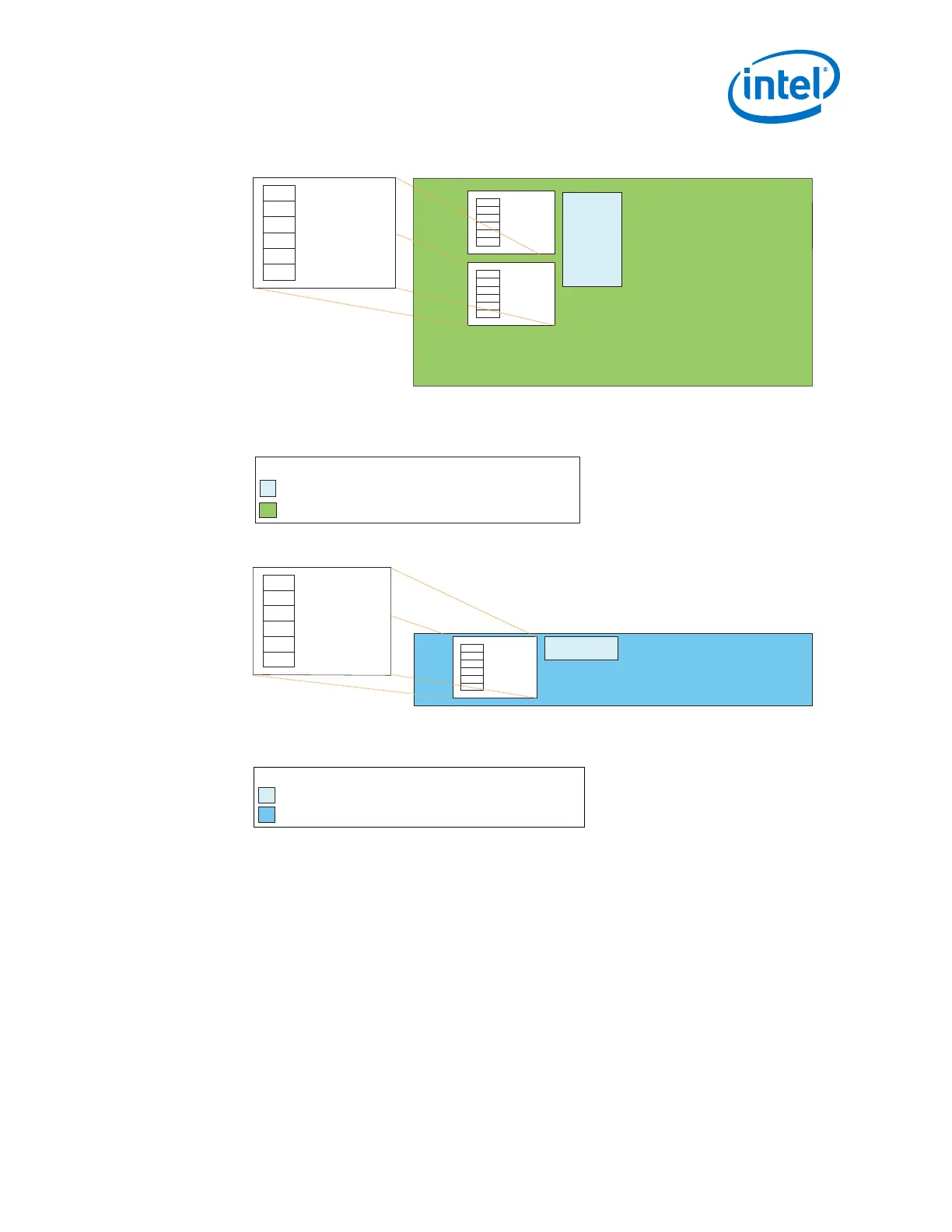

Figure 10. Arria 10 SX Device with 12 Transceiver Channels and One Hard IP Block
Transceiver
Bank
Transceiver
Bank
Transceiver
Bank
Transceiver
Bank
PCIe
Gen1 - Gen3
Hard IP
(with CvP)
CH5
CH4
CH3
CH2
CH1
CH0
Transceiver
Bank
SX 022 EF29
SX 022 EF27
SX 016 EF29
SX 016 EF27
SX 048 EF29
SX 032 EF29
SX 032 EF27
SX 027 EF29
SX 027 EF27
GXBL1D
GXBL1C
GXBL1D
GXBL1C
Note:
(1) These devices have transceivers only on the left hand side of the device.
Legend:
PCIe Gen1 - Gen3 Hard IP blocks with Configuration via Protocol (CvP) capabilities.
Arria 10 SX device with 12 transceiver channels and one Hard IP block.
Figure 11. Arria 10 SX Device with Six Transceiver Channels and One Hard IP Block
Transceiver
Bank
GXBL1C Transceiver
Bank
PCIe Hard IP
SX 022 CU19
SX 016 CU19
CH5
CH4
CH3
CH2
CH1
CH0
Transceiver
Bank
Legend:
PCIe Gen1 - Gen3 Hard IP block with Configuration via Protocol (CvP) capabilities.
Arria 10 SX device with six transceiver channels and one PCIe Hard IP block.
Note:
(2) These devices have transceivers only on the left hand side of the device.
(1) Only CH5 and CH4 support PCIe Hard IP block with Configuration via Protocol (CvP) capabilities.
(1)
Related Information
• IntelArria 10 Avalon-ST Interface for PCIe Solutions User Guide
• IntelArria 10 Avalon-MM Interface for PCIe Solutions User Guide
• IntelArria 10 Avalon-MM DMA Interface for PCIe Solutions User Guide
• IntelArria 10 Avalon-ST Interface with SR-IOV PCIe Solutions User Guide
1.1.5. Arria 10 SX Device Package Details
The following tables list package sizes, available transceiver channels, and PCI Express
Hard IP blocks for Arria 10 SX devices.
