Intel Arria 10 User Manual

2.8.1. Transceiver Channel Datapath and Clocking for CPRI

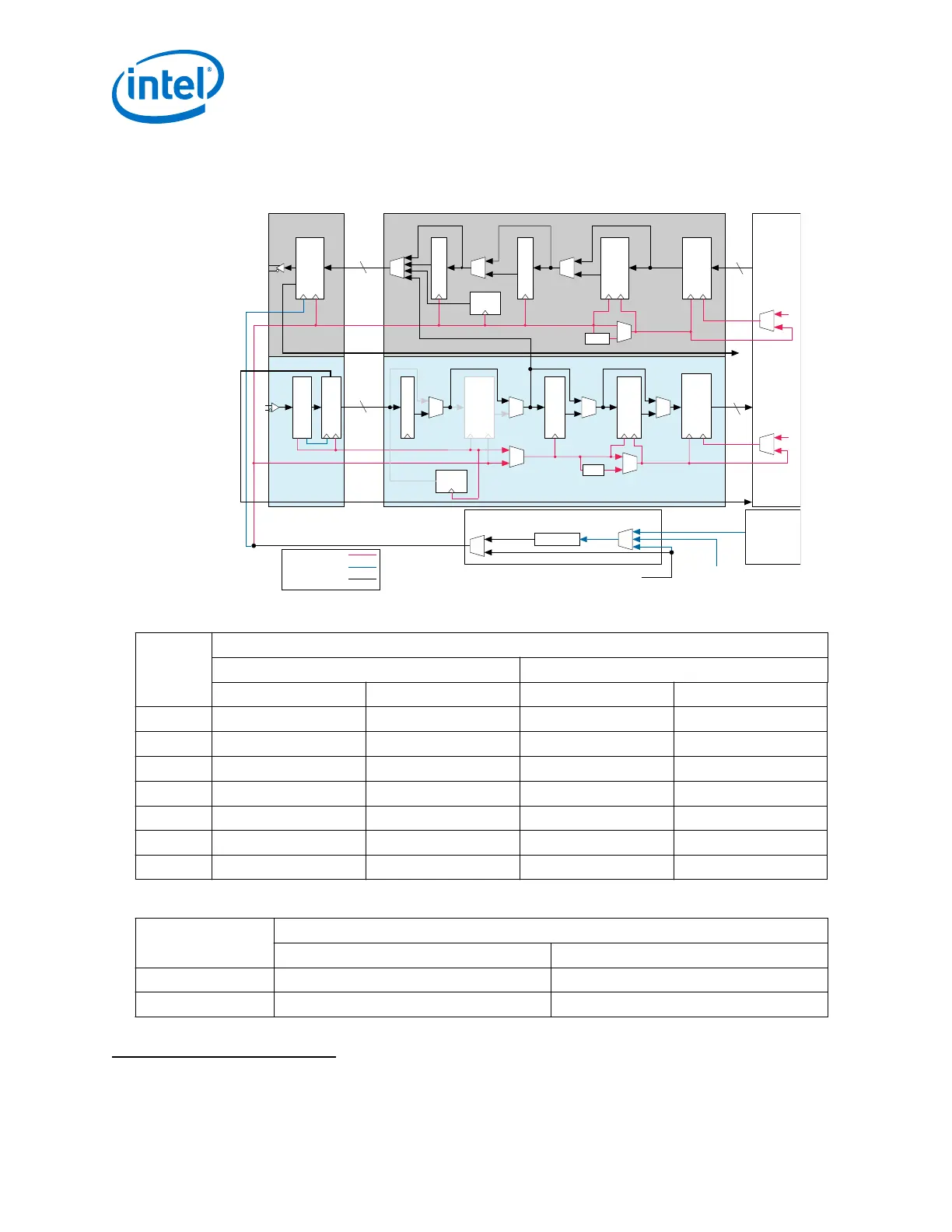

Figure 115. Transceiver Channel Datapath and Clocking for CPRI
RX
FIFO
Byte
Deserializer
8B/10B Decoder
Rate Match FIFO
Receiver PMA
Word Aligner
Deserializer
CDR
Receiver Standard PCS
Transmitter Standard PCS
Transmitter PMA
Serializer
tx_serial_data
rx_serial_data
FPGA
Fabric
TX
FIFO
Byte Serializer
8B/10B Encoder
PRBS
Generator
TX Bit Slip
/2, /4
/2, /4
Parallel Clock
Serial Clock
Parallel and Serial Clock
Parallel and Serial Clock
Clock Divider
rx_pma_div_clkout
Serial Clock
Clock Generation Block (CGB)
ATX PLL
CMU PLL
fPLL
tx_coreclkin
rx_coreclkin
rx_clkout or
tx_clkout
Parallel Clock
(Recovered)
Parallel Clock
(From Clock
Divider)
tx_clkout
tx_clkout
tx_clkout
rx_clkout
PRBS
Verifier
tx_pma_div_clkout
40
40
245 MHz
245 MHz
32
32
245 MHz
245 MHz
Table 200. Channel Width Options for Supported Serial Data Rates
Serial Data
Rate
(Mbps)
Channel Width (FPGA-PCS Fabric)
8/10 Bit Width 16/20 Bit Width
8-Bit 16-Bit 16-Bit 32-Bit
614.4
(45)
Yes Yes N/A N/A
1228.8 Yes Yes Yes Yes
2457.6 Yes Yes Yes Yes
3072 Yes Yes Yes Yes
4915.2 N/A N/A Yes Yes
6144 N/A N/A Yes Yes
9830.4 N/A N/A N/A Yes
Table 201. Interface Width Options for 10.1376 Gbps and 12.16512 Gbps Data Rates
Serial Data Rate
(Mbps)
Interface Width
FPGA fabric - Enhanced PCS (bit) Enhanced PCS - PMA (bit)
10137.6 66 32, 40, 64
12165.12 66 40, 64
(45)
Over-sampling is required to implement 614.4Mbps
2. Implementing Protocols in Arria 10 Transceivers
UG-01143 | 2018.06.15
Intel
®
Arria
®
10 Transceiver PHY User Guide
280

Intel Arria 10 Specifications

General

Transceiver Data Rate	Up to 17.4 Gbps
Transceiver Protocols Supported	CPRI, JESD204B
Transceiver Power Consumption	Varies depending on configuration and data rate. Refer to Intel Arria 10 device power estimation tools.
Transceiver Features	Clock data recovery
Power Consumption per Channel	Varies depending on data rate and equalization settings. Refer to Intel Arria 10 device power estimation tools.
Transceiver Type	FPGA integrated transceiver
Operating Temperature Range	-40°C to 100°C (Industrial)
Number of Transceiver Channels	up to 96 full-duplex
