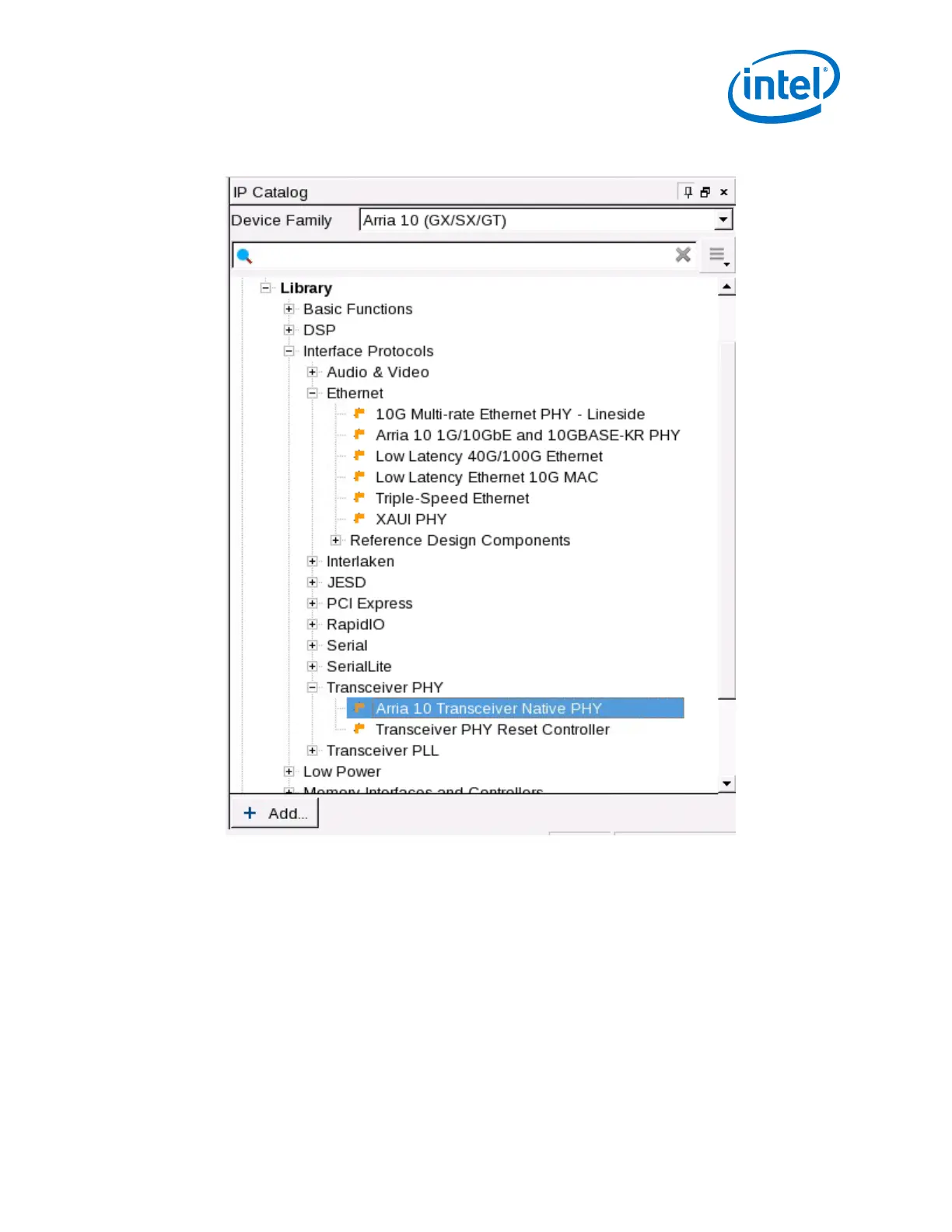

Figure 20. Arria 10 Transceiver PHY Types
Related Information
Arria 10 Transceiver Protocols and PHY IP Support on page 41
2.2.2. Configure the PHY IP Core
Configure the PHY IP core by selecting the valid parameters for your design. The valid
parameter settings are different for each protocol. Refer to the appropriate protocol's
section for selecting valid parameters for each protocol.
Related Information
• Using the Arria 10 Transceiver Native PHY IP Core on page 45
For information on Native PHY IP.
2. Implementing Protocols in Arria 10 Transceivers
UG-01143 | 2018.06.15
Intel
®
Arria
®
10 Transceiver PHY User Guide
35

Intel Arria 10 Specifications

General

Transceiver Data Rate	Up to 17.4 Gbps
Transceiver Protocols Supported	CPRI, JESD204B
Transceiver Power Consumption	Varies depending on configuration and data rate. Refer to Intel Arria 10 device power estimation tools.
Transceiver Features	Clock data recovery
Power Consumption per Channel	Varies depending on data rate and equalization settings. Refer to Intel Arria 10 device power estimation tools.
Transceiver Type	FPGA integrated transceiver
Operating Temperature Range	-40°C to 100°C (Industrial)
Number of Transceiver Channels	up to 96 full-duplex
