Configuration list menu selections:
The following figure shows an example MEASURE CONFIGURATION LISTS menu with four
configuration indexes.

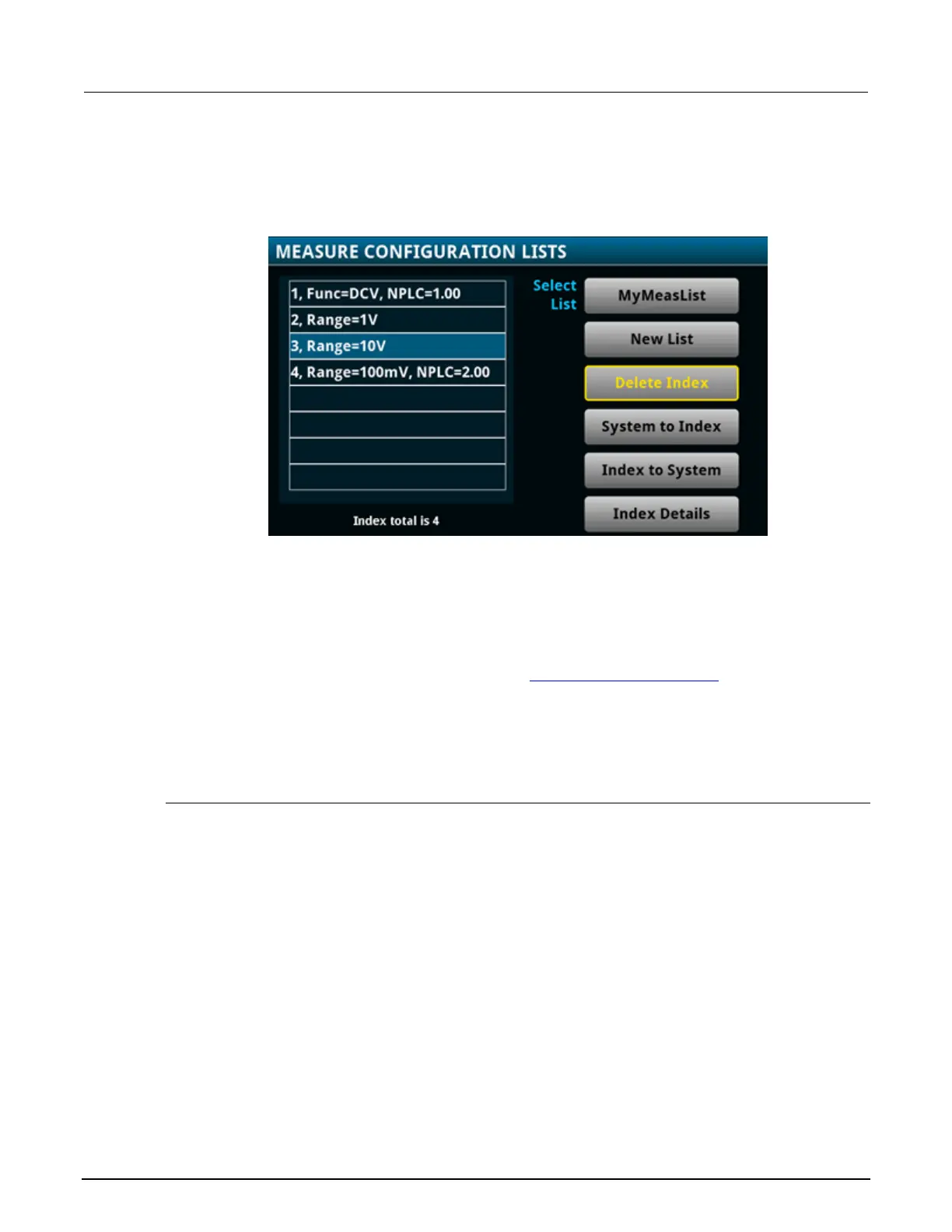

Figure 118: MEASURE CONFIGURATION LISTS menu
The CONFIGURATION LIST menu contains:
• A scrollable list of configuration indexes that are stored in the selected configuration list.
• A message bar indicating the index associated with the selected configuration index.
• Buttons for operations. For descriptions, refer to Measure Config Lists menu (on page 2-36).
Duplicate configuration indexes:
If you store a second configuration index that has the same settings as an index that is already on the
configuration list, "No change" is displayed for that index.
Creating a configuration list and giving it a name
This example creates a configuration list named MyMeasList.
Using the front panel to create the configuration list:
1. Press the MENU key.
2. Under Measure, select Config Lists. The MEASURE CONFIGURATION LISTS screen is
displayed.
3. Select New List. The keypad is displayed.
4. Enter a name for the configuration list you are creating. For example, MyMeasList.
5. Select the OK button on the displayed keyboard. The MEASURE CONFIGURATION LISTS
screen is displayed.
6. Select HOME to return to the Home screen.

Keithley DMM7510 Specifications

General

Resolution	7.5 digits
DC Voltage Range	100 mV to 1000 V
AC Voltage Range	100 mV to 750 V
DC Current Range	10 µA to 10 A
Resistance Range	10 Ω to 1 GΩ
Sampling Rate	1 MS/s
Memory	27.5 million readings
Display	5 inch capacitive touchscreen
AC Voltage Accuracy	±0.06% of reading
AC Current Range	10 A
Connectivity	USB, LAN, GPIB
