Status Reporting Data Structures

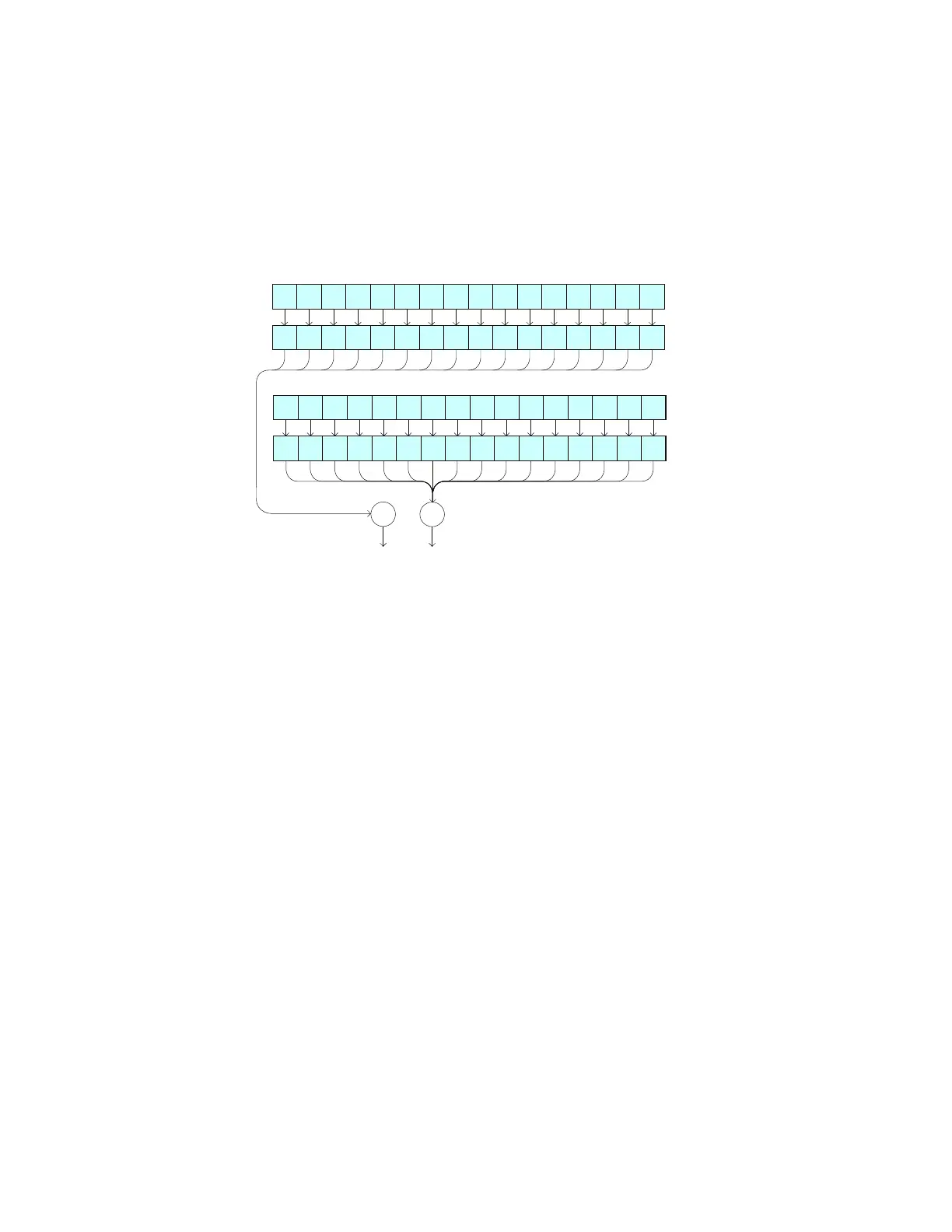

The following figure shows how the status register bits are masked and logically
OR'ed to generate service requests (SRQ) on particular events.
98101112131415
OR
10234567
:OVLR?
Overload Event Register
:OVL
:OVL?
Overload Event Enable (Mask) Register
Chan 2
OVL
Chan 1
OVL
Chan 3
OVL
Chan 4
OVL
Ext Trig
OVL
Chan 2
Fault
Chan 1
Fault
Chan 3
Fault
Chan 4
Fault
Ext Trig
Fault
OR
:MTEenable
:MTEenable?
Mask Test Event Enable (MASK) Register
1023456798101112131415
:MTERegister[:EVENt]?
Mask Test Event Event Register
Com-
plete
Fail
MTE
To bits in Operation Status Condition Register:
OVLR
Auto
Mask
Started
To Next Page
