F3 – Setup Menu
Gem-5 User’s Manual 117

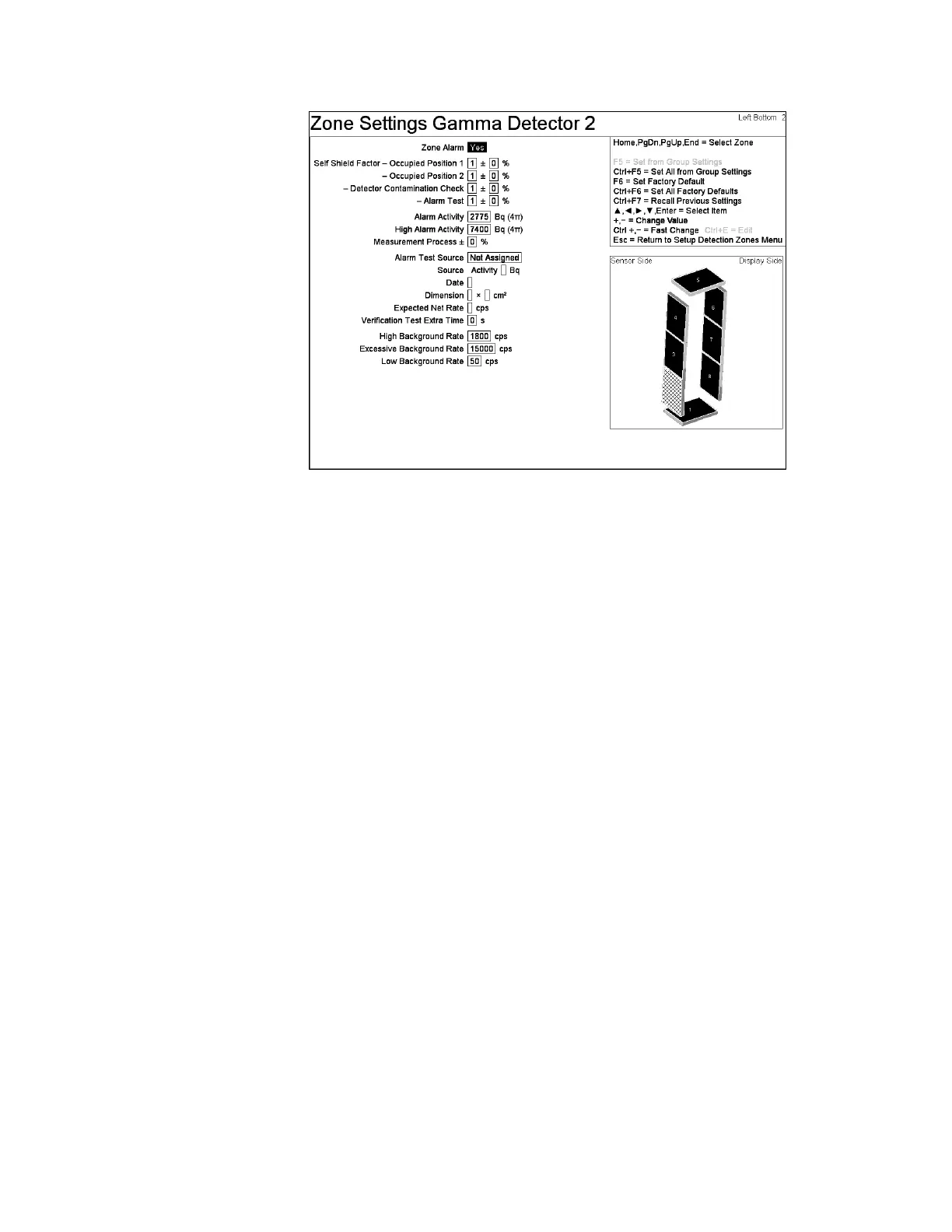

Figure 55 Zone Settings Screen for a Gamma Detector
There is an individual setup screen for each detection zone, including singles, pairs,
triples, etc. The screen title shows the description (head, foot, body, etc.) as well as,
in the case of sum zones, the single detection zones that make up zone currently
selected. Its location is indicated on the inset layout diagram by hatch marking. The
number in small font at the top right of the screen gives the sequential number
assigned to the zone that is used on various information screens and printouts. Use
Ctrl+Home, Home, PgDn, PgUp, End or Ctrl+End to select the first, first in the
group, next, previous, last in the group or last zone, respectively. Pressing Home or
End repeatedly advances quickly through singles, pairs, triples, etc.
The screen background is dark green for Gamma values.
Active Keys
F5 = Set from Group Settings: loads the selected item from the F5 – Group
Settings screen (on page 127). Note that this instruction is greyed out if the selected
item is not available on the F5 – Group Settings screen.
Ctrl+F5 = Set All from Group Settings: loads alarm limits (four items) and alarm
test source dimensions (two items) from the F5 – Group Settings screen (on page
127).
F6 = Set Factory Default: loads the default value for the selected item.
Ctrl+F6 = Set All Factory Defaults: loads default values for all line items on the
current screen. Affects currently selected zone and channel (Alpha, Beta, and
Gamma) only.
