F6 – Turn Instructions

The Turn Instructions does not apply while operating in “One-Step” or “Walk-

Through” modes.

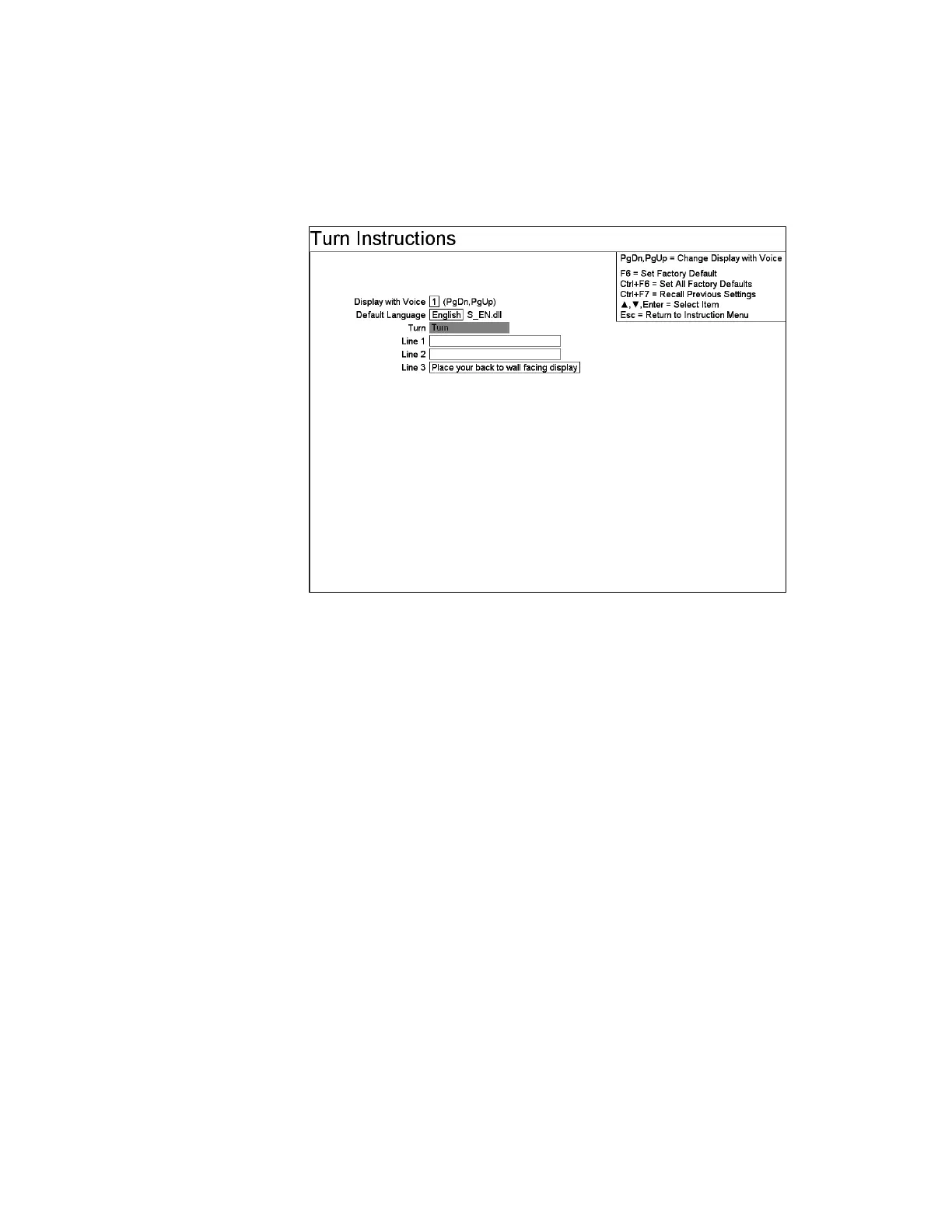

Figure 85 The Turn Instructions Screen
