Installation
Gem-5 User’s Manual 9
Ramps
To install the optional entrance and exit ramps lift off the floor pan and place to one
side (see Figure 4 below). Be careful not to jar or put any weight on the large detector
under the pan. Place the ramps over the lip of the front and back supports on the base
and bolt into place using the six fasteners (three each side) supplied. Use the leveling
bolts to ensure that the ramps are level (Figure 5). Carefully replace the floor pan.

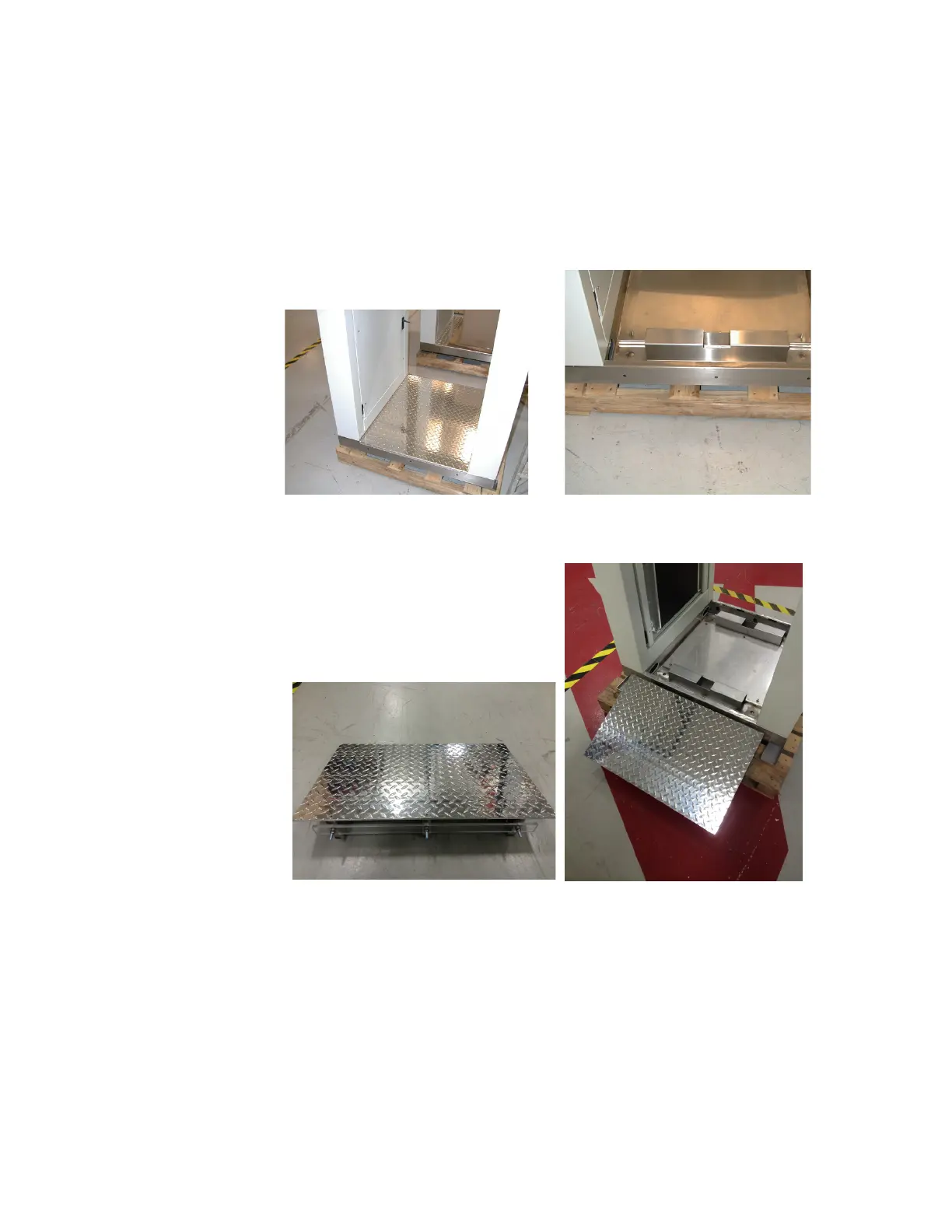

Figure 4 GEM-5 Floor pan in place (left) and floor pan removed (right).
Figure 5 GEM-5 Ramp (left) and Ramp Installation (right)
